Precision CNC Machining of Epoxy Boards

4 week ago

1 0

Guangdong Hongwang New Materials Technology Co., Ltd

 2 year year

Product details

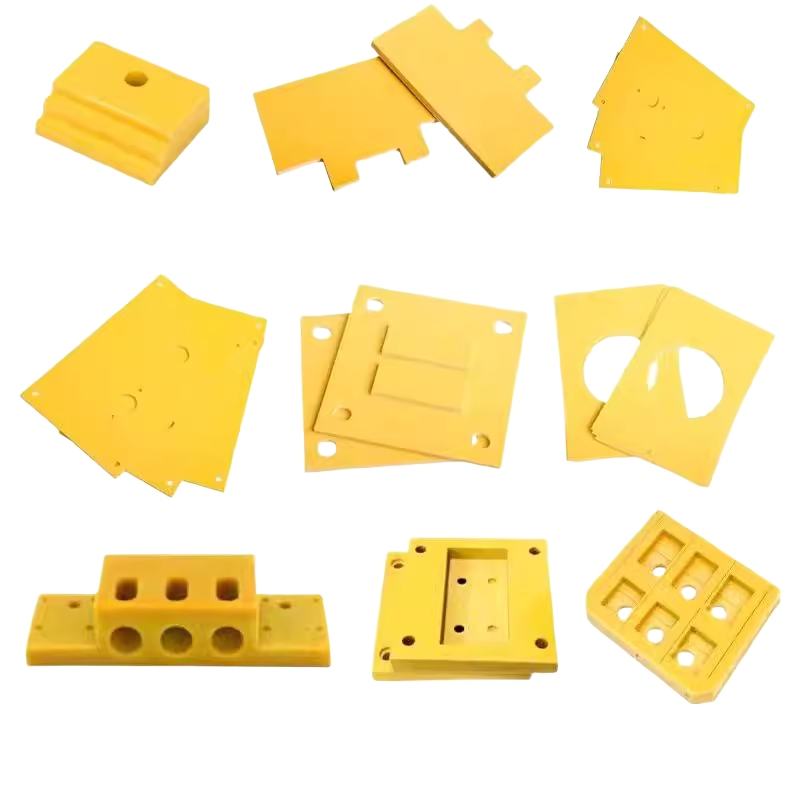

We focus on Epoxy Boards and offer professional insulation material CNC machining services. We also produce top-notch insulation material CNC machined parts, with strict quality control throughout every step of insulation material processing to serve various industrial clients.

Key Things to Look for in CNC Engraving & Cutting of Epoxy Boards

1. Size Accuracy

This is about how close the actual part matches the design specs—like the length, width, hole sizes, or groove depth. Usually, we’re looking at a tolerance between ±0.02mm to ±0.1mm.

2. Position Accuracy

This measures how accurately different features (like holes or grooves) are placed relative to each other. For example, the distance between two holes or from a groove to the edge. Typical tolerance here is around ±0.01mm to ±0.05mm.

3. Shape Accuracy

This refers to how perfect a shape turns out—like how round a hole actually is, or how square and flat a surface is. Standards usually say: roundness within 0.01mm, perpendicularity within 0.02mm per meter.

4. Surface Finish

This is about how smooth or rough the cut or engraved surface looks. A common range is between Ra 1.6μm to Ra 6.3μm.

5. Depth/Thickness Accuracy

This measures how accurately we can control the depth of engraved grooves or the height of steps. Tolerance typically falls between ±0.01mm to ±0.03mm.
