Product details

Split Sleeving Cable Protection

Product Description

Our split sleeving for cable protection is a new-type wire protective solution, woven from polyester monofilaments and polyester multifilaments. It features excellent heat dissipation, fire resistance, and wear resistance, with simple and convenient operation—its open-style structure makes wire reinstallation, maintenance, and inspection much easier.

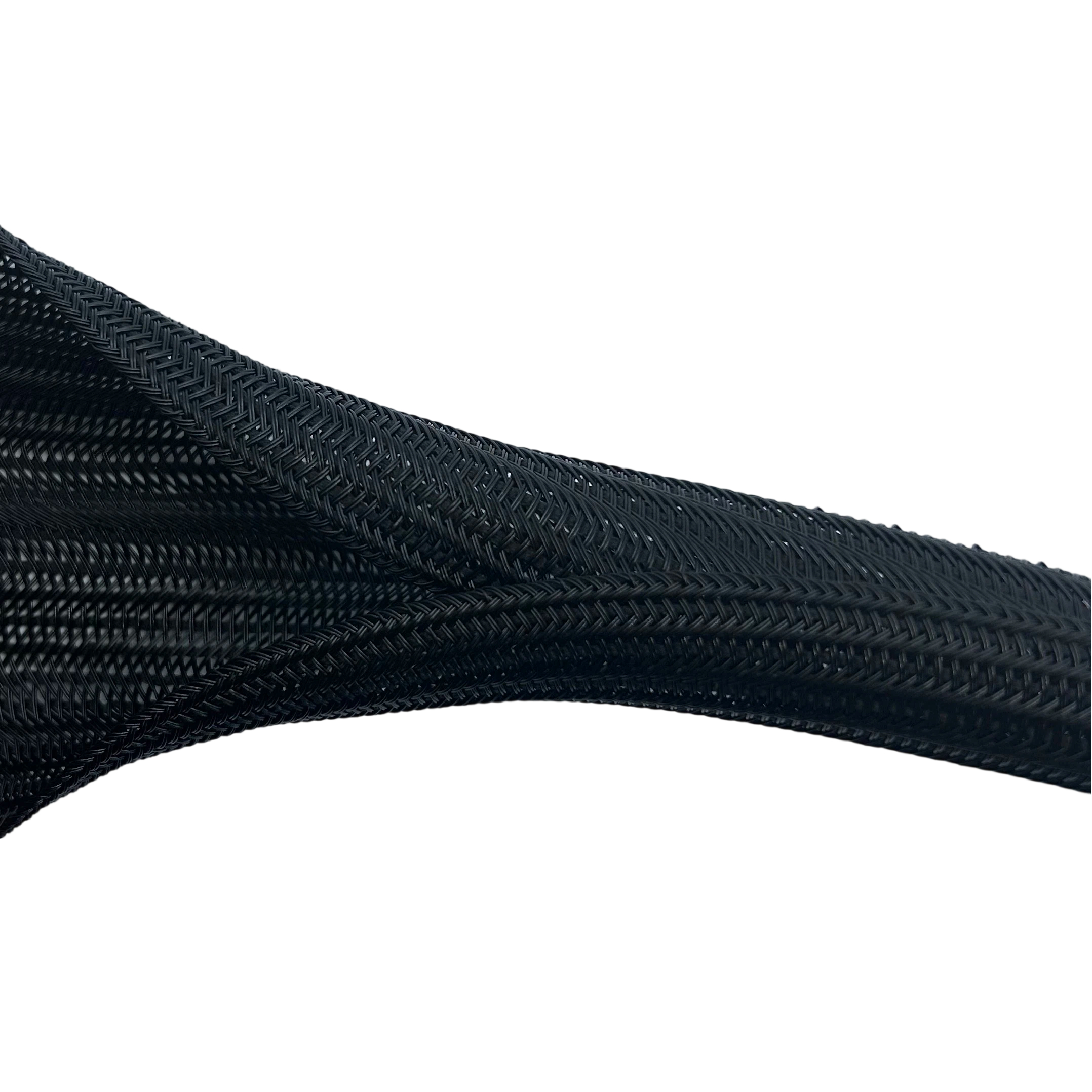

As shown in the product-display image, the braided sleeving has a clear open structure. You can see how effortlessly it can be opened and closed by hand, which highlights its practicality for wrapping around wires. The texture of the sleeving is also clearly visible, showing its durable build that provides long-lasting protection for internal wires.

Technical Parameters

Parameter Name	Parameter Value
Material	Polyester Monofilaments + Polyester Multifilaments
Operating Temperature Range	-50℃-150℃
Melting Point	240±10℃
Flame Retardant Grade	UL94 V1
Standard Color	Black
Certifications	Complies with ROHS and Halogen-Free Standards
Recommended Cutting Tool	Hot Knife

Product Dimensions Diagram

Product Specifications

Product Application

This split sleeving for cable protection is widely used in high-speed railways, automobiles, automated equipment, and computer wires—especially in environments that require both protection and heat dissipation.

In the application-scenario image, you can see the braided cable sleeve applied to automotive wiring. It neatly wraps around multiple car wires, not only shielding them from physical damage but also helping with heat dissipation. This is crucial for maintaining the stable operation of automotive electrical systems, which aligns with the performance needs of braided wire loom automotive scenarios.

Notes

The inner diameter refers to the diameter of the sleeve when it is a perfect circle, not the folded diameter.
Special packaging and colors can be customized according to customer requirements.
For detailed product parameters, please refer to the sample approval sheet.
