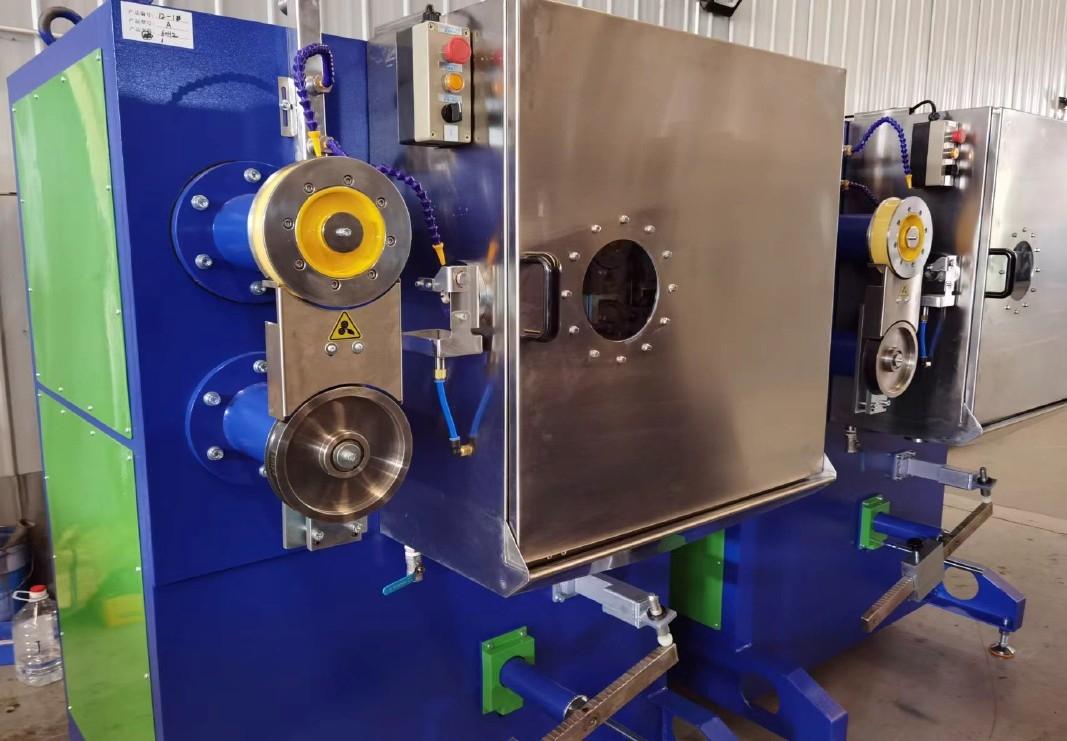

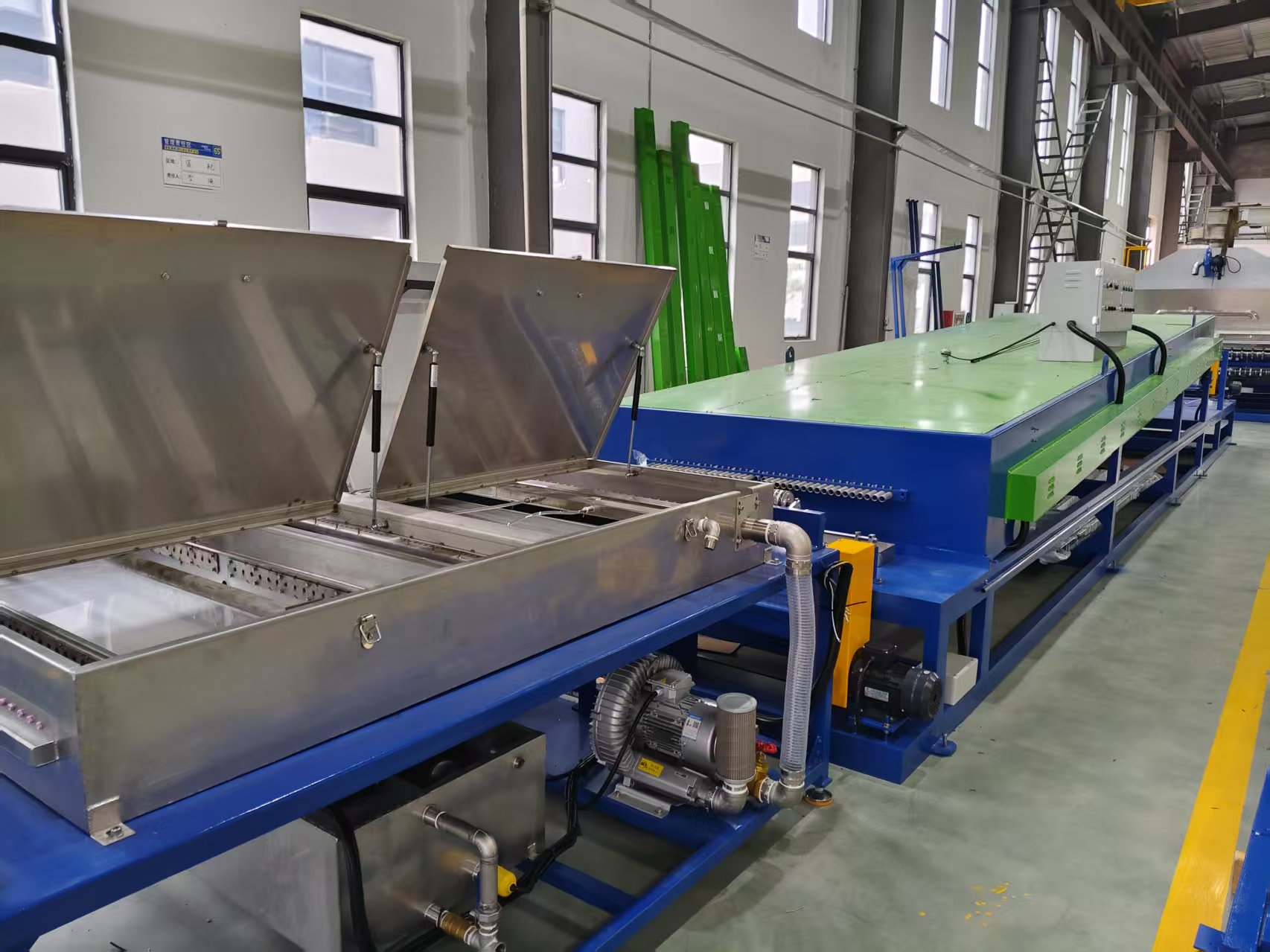

5/4-4/24C Type Horizontal High Speed
Enamelling Machine With Inline Drawing
1. Brief Introduction
● Production variety:PU,PEI,PEI+PAI,PEl+PAl+SL,Cu&Al
● Wire range: φ0.10～4φ0.25mm
● Production lines:4 lines(single line/single oven)
● Maximum inlet wire of drawing unit:φ0.50mm
● Maximum drawing passes:15,
NO.1-NO.14 elongtation:1.15,NO.15 elongation:1.10
● Coating passes:24 passes(BC:24,MC:10,TC:6,die)
● Wire pitch:9mm
● Mechanical speed:Max 1000m/min

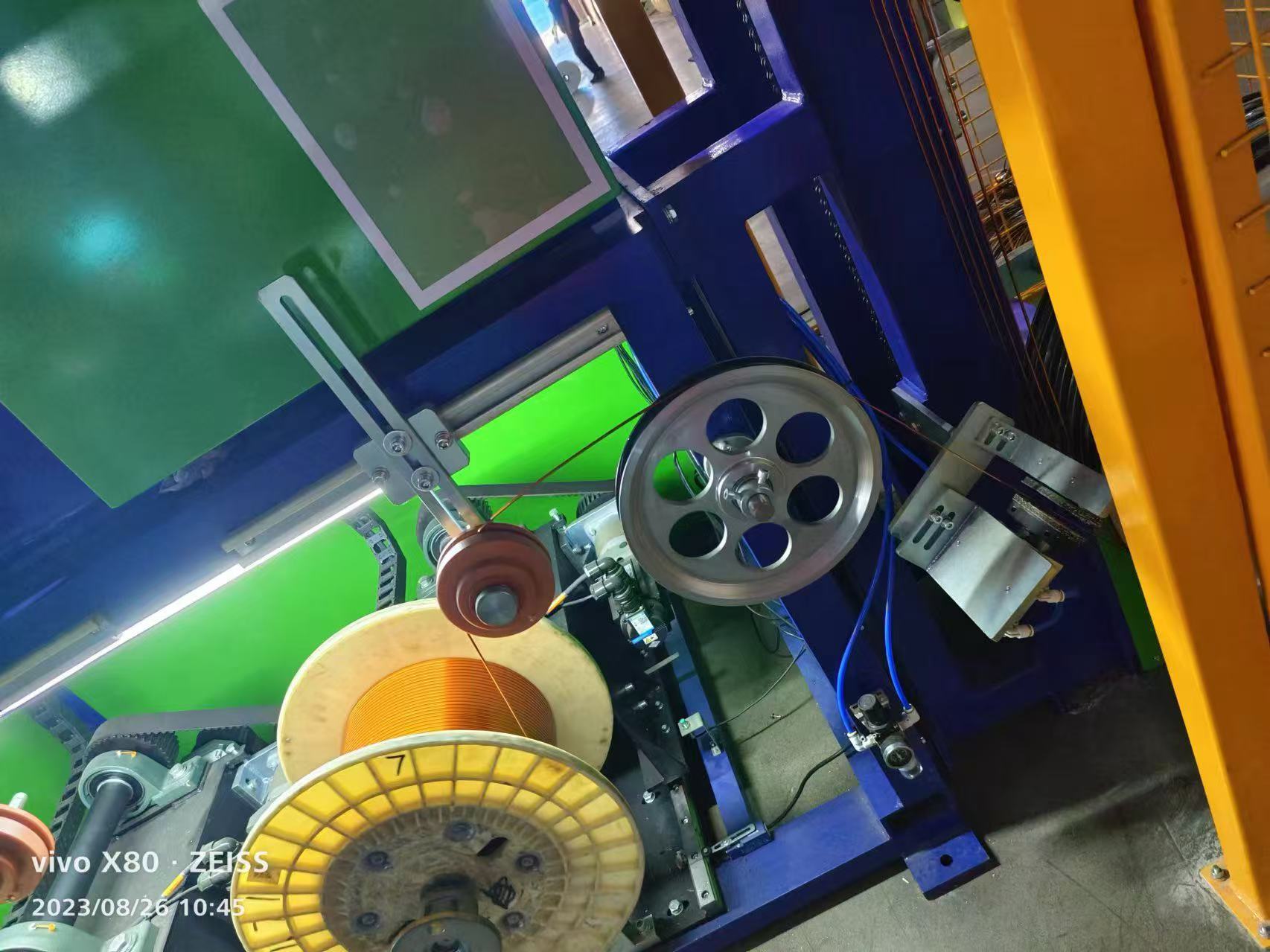

● Take-up bobbin:PT10~PT60
● Take-up mode:Automatic bobbin changing system
2. Main Features
l Low power consumption
l Zero pollution of exhaust
Secondly catalyst with special recipe, affective at 320℃ and above
only, without extra electrical heating, ensure a complete decontamination, equal to zero pollution of exhaust.
l Improvements of oven heat insulation
All insulating cottons adpot ceramic fiber material
Thicken heaters insulation zone at top of oven
l Alternate the position of capstan roller and applicator, the final
coating pass go to spooler across lower wire cooler, reduce wire
temperature on bobbin.
l Lubricant oil coated with flow control
l Management functions
Earthnet interface available for remote control
Detection, storing and collection of power consumption quantity
and unit power consumption
l Wire temperature control
l Automatic boundary of traverse when winding up
l Self-bonding coating function optional
3. Production And Power Consumption Sheet)4 Lines
