OPTICAL FIBERCOMPOSITE OVERHEADGROUND WIRE (OPGW)

4 month ago

3 0

Jiangyin City Source Electrical Machinery Co., Ltd

 12 month year

Product details

High Performance Fiber Optic Cables for Communication Transmission

1. PRODUCT DESCRIPTION

Optical fiber composite overhead ground wire(OPGW)adds fiber into it and at the same time,maintains all the original performance and functions of the existing overhead ground wire,which opens up the high- performance optical transmission channel,giving it both anti-lightning and communications functions.It is a kind of wire that combines the functions of overhead ground wire and communications capabilities.

2. STRUCTURE

3. COMMONLYUSED PRODUCT PARAMETERS

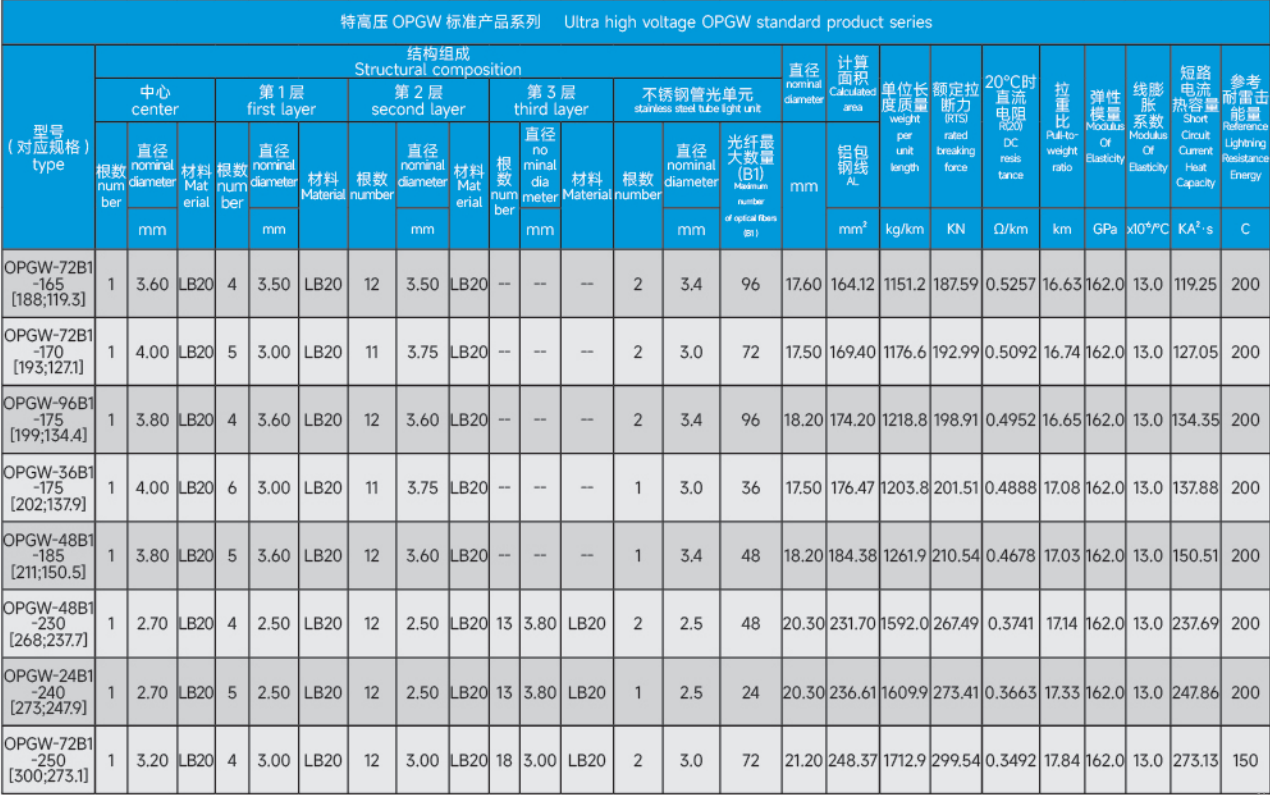

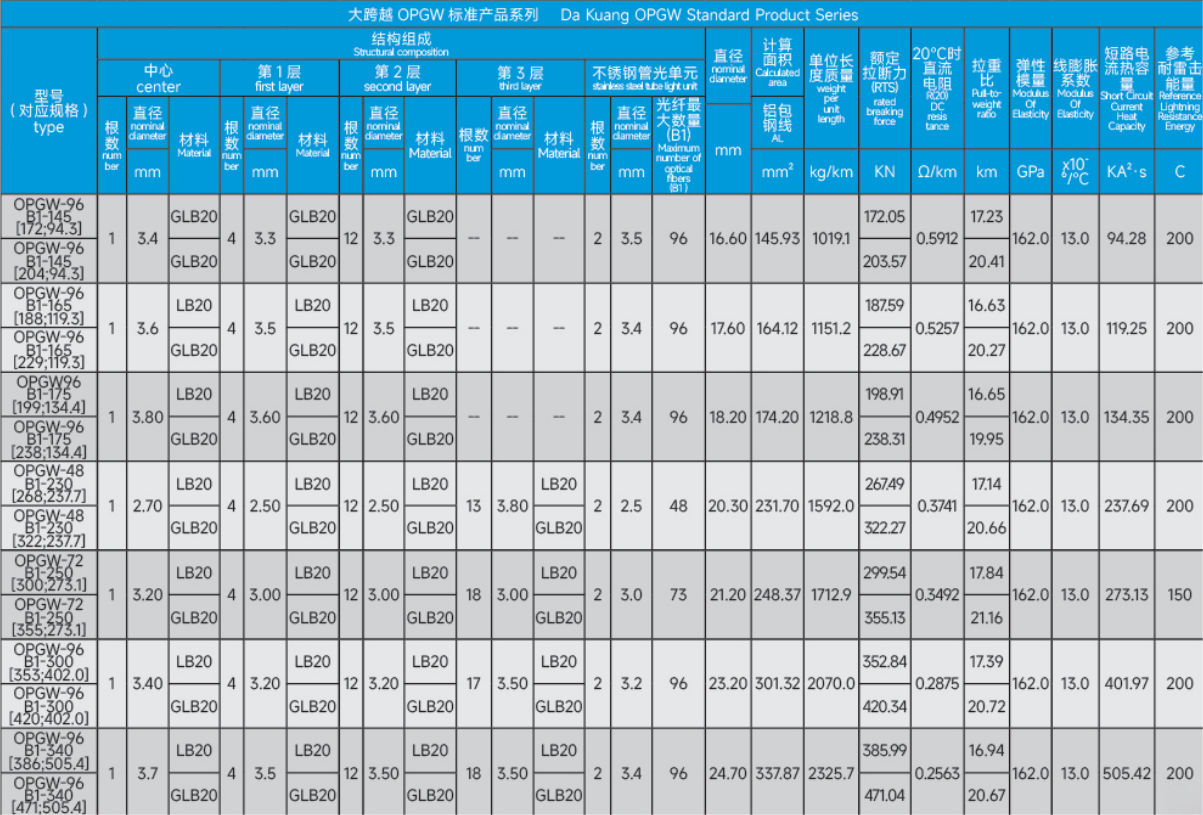

Central tube type stainless steel tube light unit OPGW standard product series
Type	Structural composition						Nominal diameter	Calculated area		Weight per unit length	(RTS) Rated breaking force	R(20) DC resistance	Pull- to- weight ratio	Modulus Of Elasticity	Modulus Of Elasticity	Short Circuit Current Heat Capacity	Reference Lightning Resistance Energy
	Center			Outer Layer				AL	Bear The Weight
	Radical number	Nominal diameter mm	Maximum number Of optical （B1）	Radical number	Nominal diameter mm	Material		AL	Bear The Weight
	Radical number	Nominal diameter mm	Maximum number Of optical （B1）	Radical number	Nominal diameter mm	Material	mm	mm²	mm²	kg/km	kN	Q/km	km	GPa	×10⁶1℃	kA² ·s	C
OPGW- 24B1-40[51;8.0]	1	3.0	24	6	3.0	Lb20	9.00	42.41	42.41	303.6	51.15	2.0275	17.19	162.0	13.0	7.96	50
OPGW- 48B1-40[52;8.2]	1	3.8	48	7	2.8	LB20	9.40	43.10	43.10	13.3	51.98	1.9949	16.93	162.0	13.0	8.23	100
OPGW- 48B1-50[60;10.8]	1	3.9	48	7	3.0	LB20	9.90	49.48	49.48	55.9	59.67	1.7378	17.11	162.0	13.0	10.84	100
OPGW- 36B1-55[64;13.1]	1	3.4	36	6	3.4	LB20	10.20	54.48	54.48	89.3	64.23	1.5785	16.83	162.0	13.0	13.14	100
OPGW- 48B1-60[70;17.0]	1	3.6	48	6	3.6	LB20	10.80	61.07	61.07	433.4	69.81	14080	16.43	162.0	13.0	16.51	150
OPGW- 48B1-70[77;20.5]	1	3.8	48	6	3.8	LB20	11.40	68.05	68.05	480.1	76.55	1.2636	16.27	162.0	13.0	20.50	200
OPGW- 48B1-70[42;31.8]	1	3.8	48	6	3.8	LB40	11.40	68.05	68.05	344.8	41.64	0.6423	12.32	109.0	15.5	31.82	100
OPGW- 48B1-80[86;27.8]	1	4.1	48	6	4.1	LB20	12.30	79.22	79.22	559.8	86.27	1.0855	15.73	162.0	13.0	27.78	200
OPGW- 48B1-80[48;43.1]	1	4.1	48	6	4.1	Lb40	12.30	79.22	79.22	402.3	48.48	0.5517	12.30	109.0	15.5	43.12	100

Note 1: The number of optical fiber cores in the model is the maximum number of optical fibers borne by the optical unit,which can be reduced according to the actual engineering situation.The type of optical fiber is B1 fiber (245um)as an example.or example,48B1 indicates that the optical fiber type is Blfiber (245um),and the maximum number of optical fibers is 48 cores;

Note 2: When other optical fiber types are used,the maximum number of optical fibers will be increased or decreased appropriately

Note 3: Except the mass per unit length,other parameters have not considered the light unit factor;

Note 4: short-circuit current heat capacity:the temperature range is 40℃~200 ℃;When the short-circuit curent duration and temperature range are different,the short-circuit current should be converted accordingly;

Note 5:Reference lightning protection energy:the empirical value according to the requirements of DL/T832 for reference. default name
