Velcro Braided Wire Sleeve

Product Description

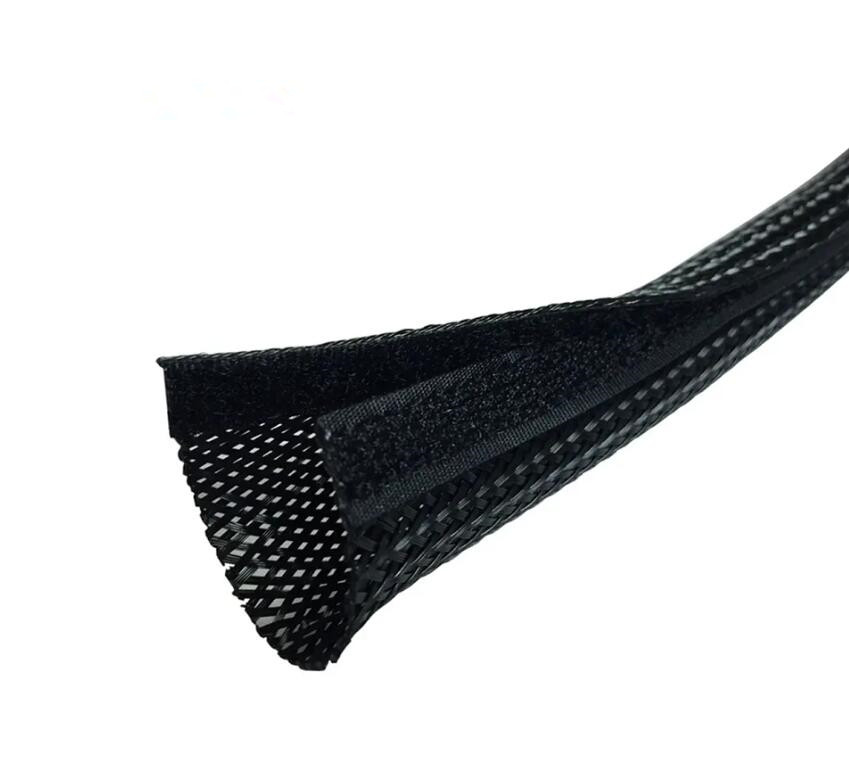

The Velcro braided wire sleeve is made by stitching polyester monofilament with Velcro. From the product's appearance, you can clearly see that its braided texture is fine and mesh-like, and the Velcro is tightly attached to the edge of the braided layer, with the overall structure being neat. The combination of the mesh braid and Velcro is intuitively visible in the displayed part of the sleeve. As a practical braided sleeving, it has good heat dissipation — the mesh braid allows air to circulate more smoothly, which can quickly dissipate the heat generated when the cables are working. At the same time, it has excellent wear resistance and can protect the cables from external friction damage for a long time. Moreover, the Velcro design makes the operation simple and convenient. Cables can be quickly wrapped or disassembled without additional tools, which is more efficient than ordinary wire sleeve when organizing cables.

Technical Parameters

Technical Parameters	Details
Material	Polyester monofilament
Hook and Loop Material	Nylon
Operating Temperature	-50C-150℃
Melting Point	240 ± 10℃
Flame Retardant Rating	VW-1
Standard Color	Black, Grey
Certifications	ROHS, Halogen-Free Certification
Cutting Tool	Hot Knife

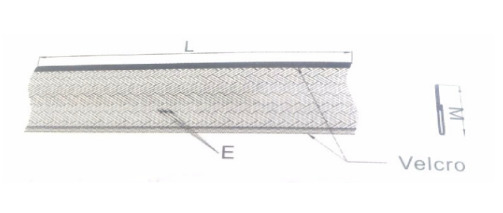

Product Dimensions Diagram

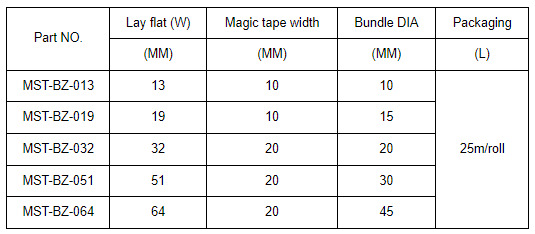

Product Specifications

Product Application

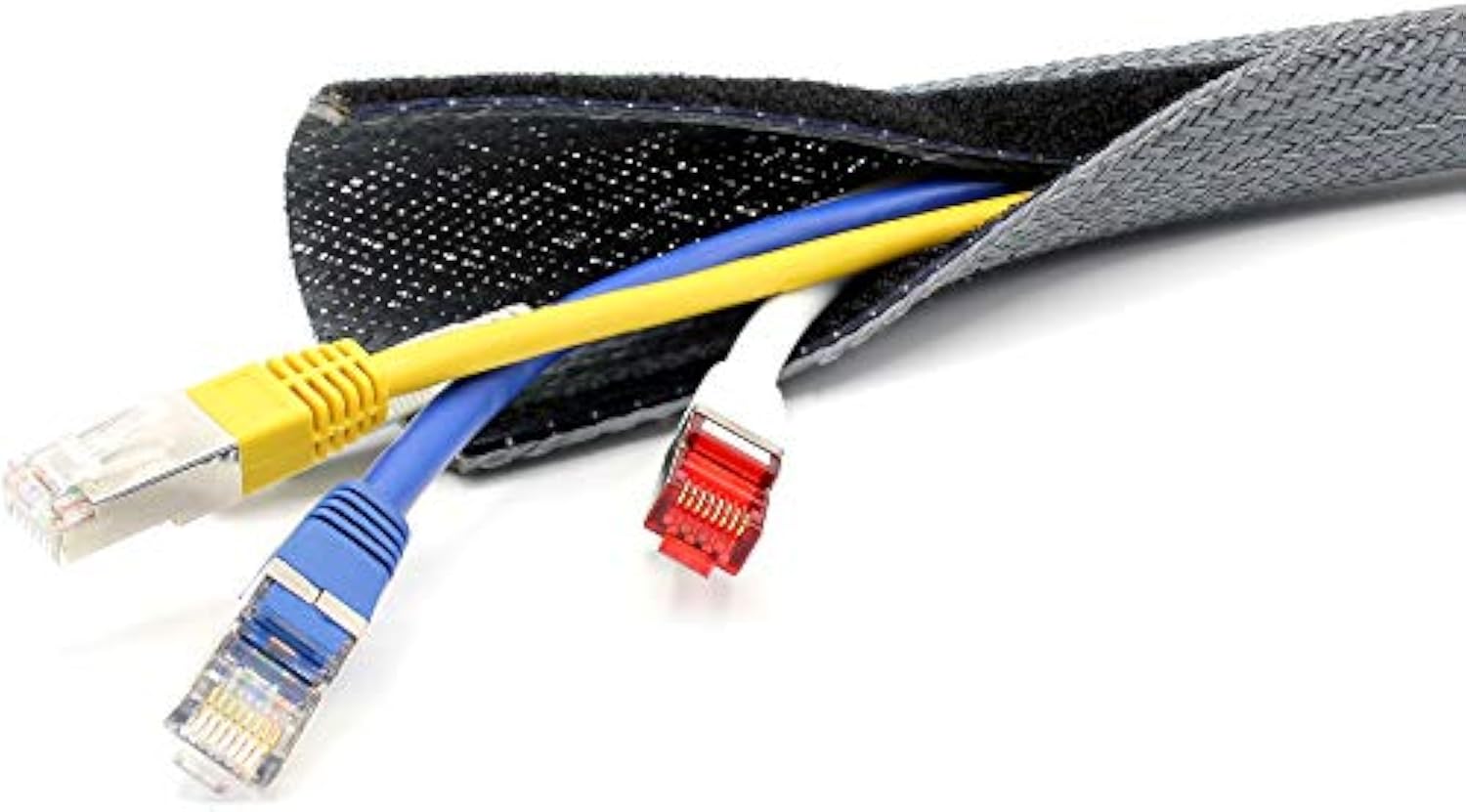

The Velcro braided wire sleeve is widely used in the organization and protection of wire harnesses in industries such as A/V wires, power cords for indoor heaters, and external connection cables for computers or TVs. In actual use scenarios, multiple network cables of different colors are neatly wrapped by the sleeve, and the originally messy wire harnesses become orderly and neat. It can provide reliable protection for such wire loom, reducing the damage to cables caused by dust adhesion and external collision. At the same time, it meets the use requirements of cable sleeve of different thicknesses, making cable management in home and office scenarios more convenient.

Remarks

The folded diameter refers to the flat width when the sleeving is bonded.
Special packaging, special colors, etc., can be customized according to customer requirements.
Please refer to the sample approval sheet for detailed product parameters.
