Product details

Product Description

Introduction of generator set

L20V190ZLT-2 gas engine is designed and manufactured with the 16V gas engine as the model sample. It is a 2000KW higher-power, high performance 20V gas engine which can adopt to low pressure fuel gas, high intelligence, low heat consumption, high stability, low emission and long using life.

The gen-set system consists of a natural gas engine, a generator, a common chassis, a high elastic coupling, a control cabinet and so on. The system is equipped with a perfect system of natural gas inlet, electric or air starting(depend on customer) and electrical control, vibration detection, knock detection and other systems. The generator adopts synchronous AC brushless excitation generator.

Generator set system composition

1.Installation: Indoor installation, the engine and generator are rigidly installed on the chassis, the chassis is installed on the transition base through the shock absorber, the transition base and the foundation are fastened by anchor screws, and the engine and the generator are connected by a high-elastic coupling.

2.Cooling method: Using horizontal radiator, the horizontal radiator is driven by AC motor. The radiator is equipped with a special control box to realize the linkage control of the cooling fan and cooling water temperature, ensuring that the engine is always running under the best cooling conditions.

3.Intake method: The gen-set is placed in the on-site machine room, and the machine room should be equipped with a forced inlet fan to meet requirements of air flow for the operation of the gen-set. In addition, the engine is equipped with an air filter to further ensure the cleanliness of the engine's combustion air.
4.Exhaust method: Outdoor exhaust, engine has exhaust pipe and choose a fire-extinguishing muffler and place it vertically (or horizontally) through the top bracket of the machine room,( 68579992,when installed vertically, the exhaust muffler end is equipped with a rain cap).
5.Starting method: According to the requirement of the customer, in this proposal is using electric starting motor.(if want air starting method, please contact with factory to change for air starting motor)

Technical Specifications

(Custom configurations available upon request.)

Gas generator model	GH2000GF10-T
Gas engine model	L20V190ZLT-2
Rated power	2000KW
Rated frequency	50Hz
Rated power factor	0.8(Lag)
Rated voltage	10.5kV
Rated speed	1000r/min
Starting mode	Electric starting motor
Weight	30T
Overall Dimensions	7500 x 2300 x 2800 mm

After Sales Service

During the warranty period, if the equipment fails due to quality reasons, the supplier is responsible for free maintenance, and if it cannot be repaired, it is responsible for free replacement. If due to poor storage and maintenance, machine overload, improper operation, gas, oil, cooling water does not meet the specified standards, poor infrastructure, improper installation, chemical and electrochemical corrosion or electrical effects and other damage caused by non-manufacturer's responsibility, the supplier will not be liable for compensation.

Standard Warranty: 12 months or 1,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

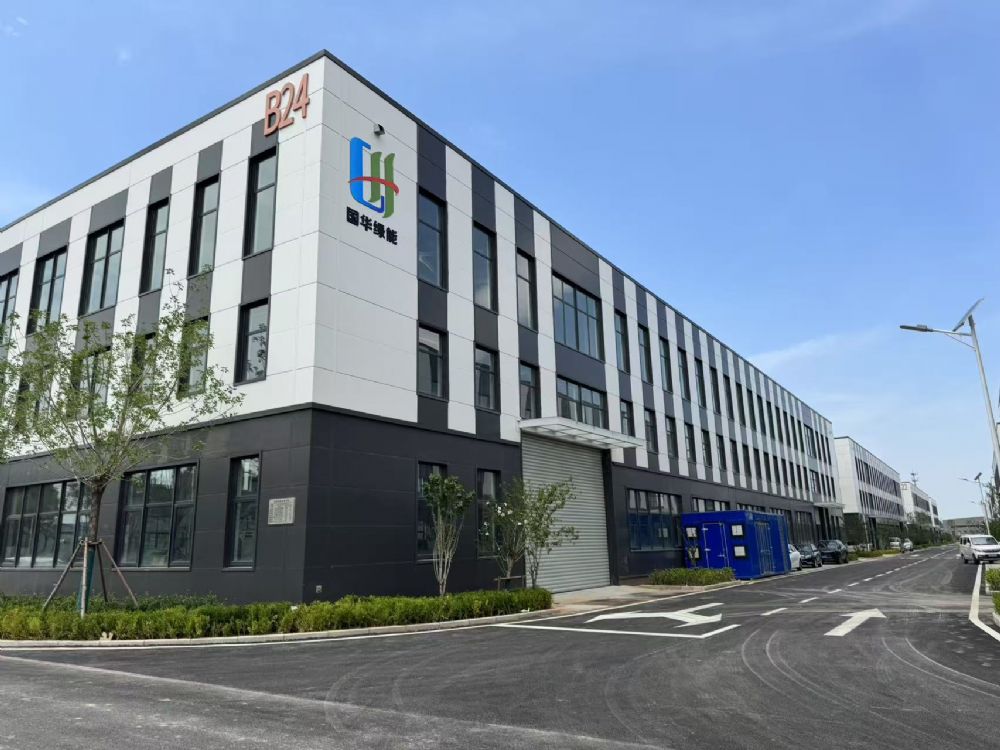

JiNan GuoHua Green Power Equipment Co.Ltd

Our Main BusenessMain business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 45-60 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized?
A: Absolutely! We offer tailored attachments.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
