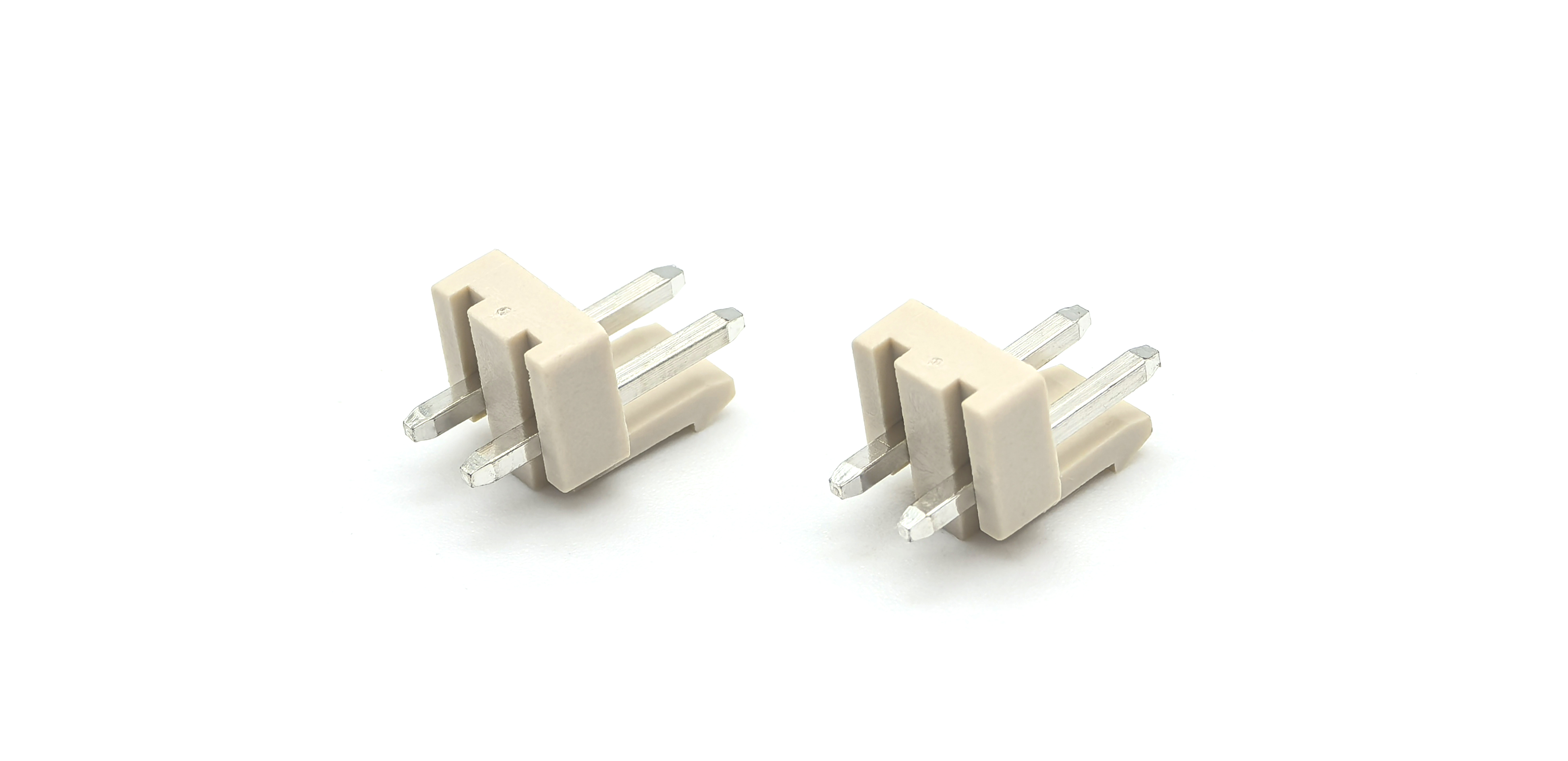

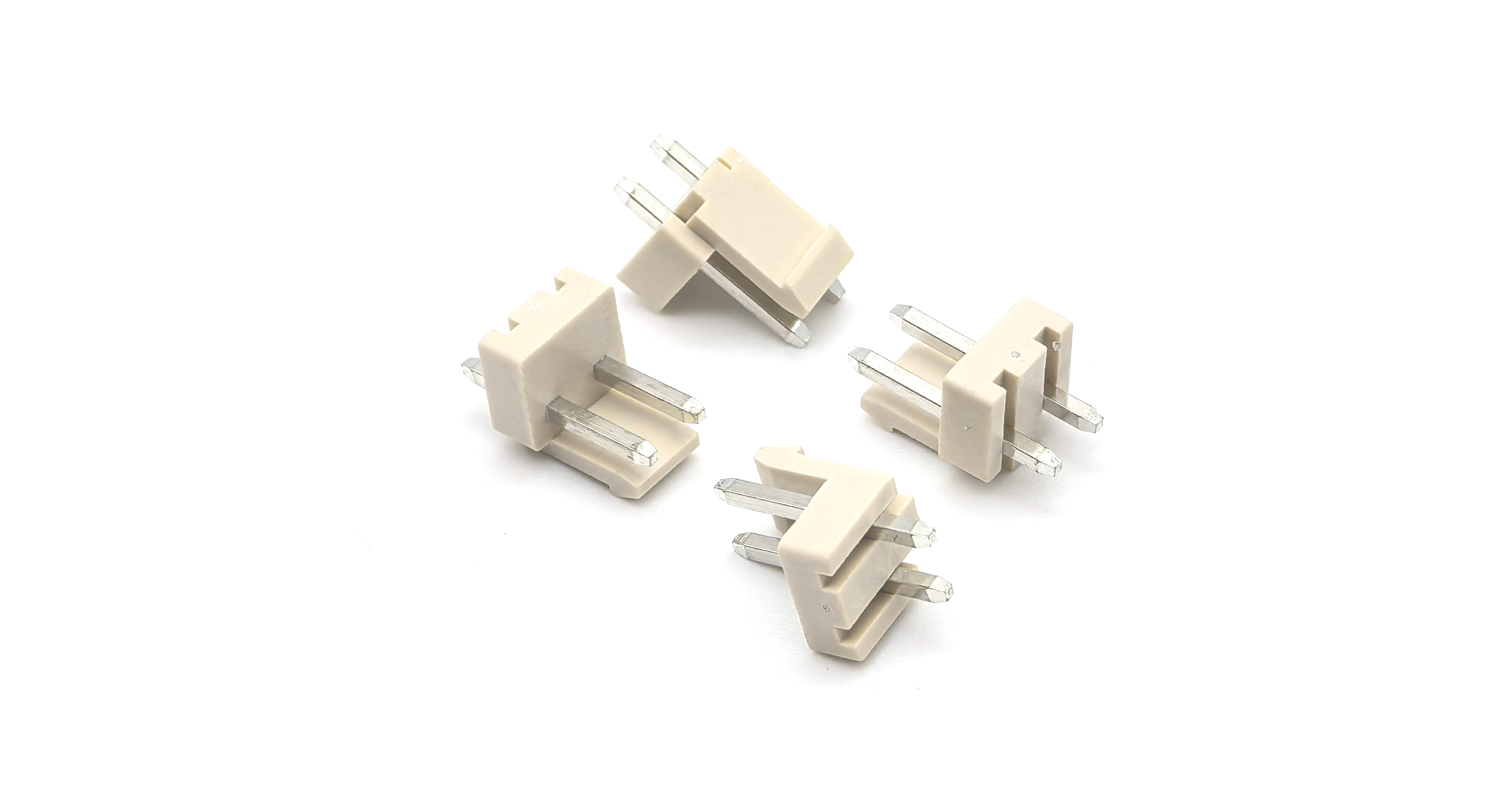

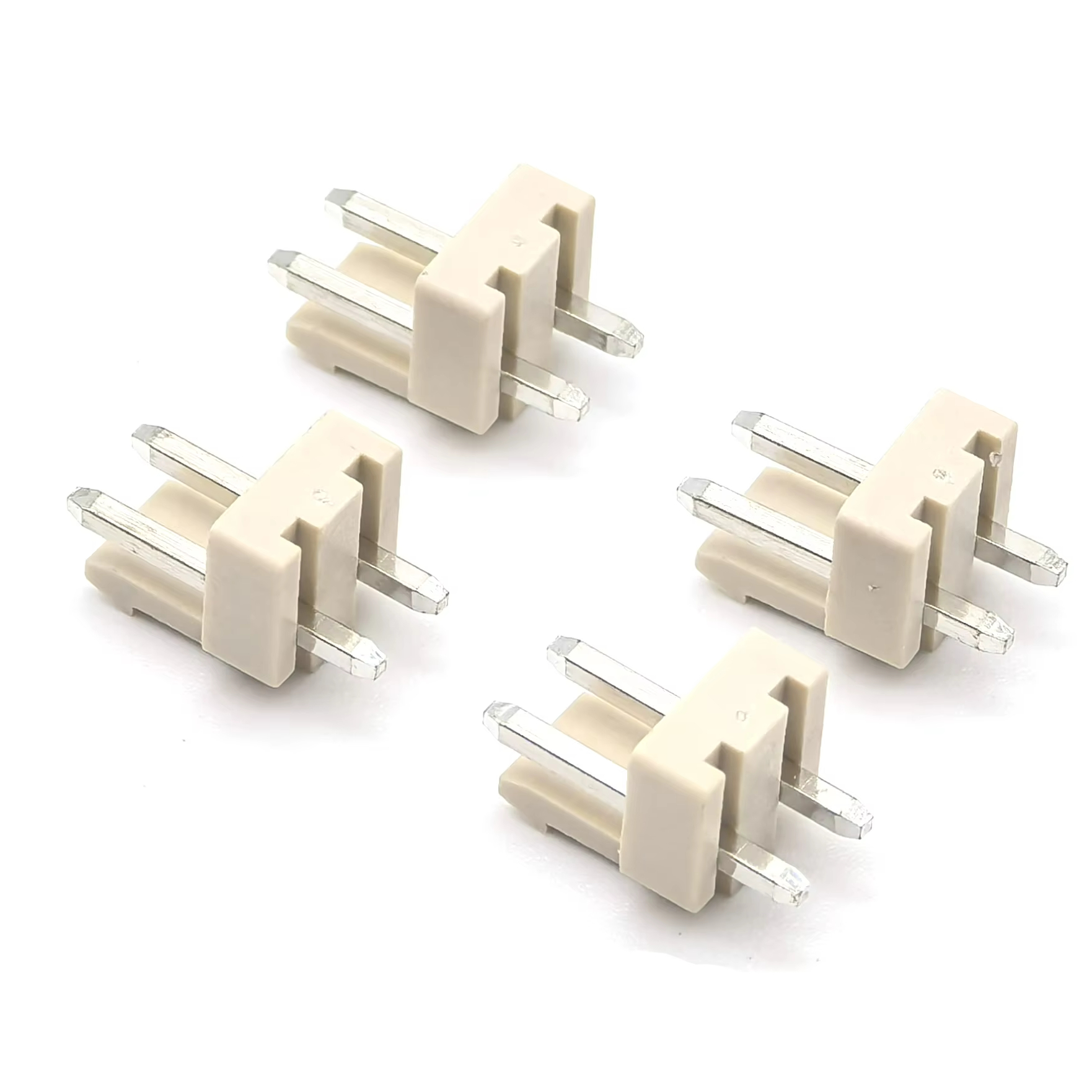

VH3.96 Wafer Pin header Connector Straight DIP 2P

3 week ago

1 0

Shenzhen Yangzhan Electronics Co., Ltd.

 6 month year

Product details

YZTECH’s VH3.96 Wafer Pin Header Connector redefines straight-plug performance with a 2-pin single-row design tailored for direct PCB insertion.Engineered for 7A/250V operation, this DIN-standard wafer pin header features brass contacts with tin plating for optimized conductivity and corrosion resistance,housed in NL66-V0 colloidal material renowned for its V0-rated flame retardancy and mechanical resilience.The straight-plug installation method simplifies manual or automated assembly, while the rectangular shape ensures compatibility with standard PCB footprints. Operating between -25°C and +85°C, it excels in mid-range temperature applications including industrial controls,power supplies,and LED modules.Bag packaging offers cost-effective logistics for small-batch deployments,and the 260°C/10s soldering profile aligns with lead-free manufacturing standards.

The VH3.96 header connector leverages NL66-V0 colloidal housing—a high-performance polymer engineered for enhanced thermal stability and impact resistance—to withstand mechanical stresses during insertion and operation. Brass contacts with tin plating balance electrical performance and cost efficiency,delivering reliable connections at 7A current capacity.The straight-plug design eliminates the need for vertical clearance,enabling dense board layouts and simplifying prototype iterations.DIN-compliant dimensions ensure global compatibility,while polarization features prevent misalignment during mating.Unlike SMT variants,this through-hole design accommodates manual soldering or wave soldering processes,broadening its appeal to manufacturers with mixed assembly lines.The -25°C to +85°C operating range addresses applications requiring moderate thermal tolerance without compromising reliability.

VH3.96 Wafer Pin header Connector Straight DIP 2P
