Product details

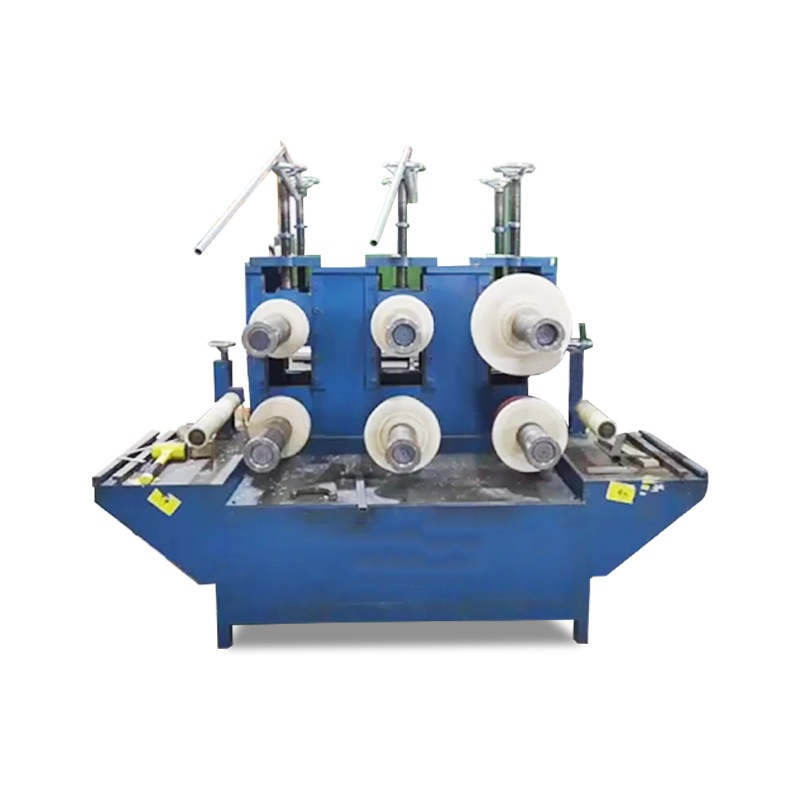

Aluminum Shaping Machine for extrusion workshop

It is mainly used for profile surface flatness shaping and material angle correction，applicable to aluminum profiles, industrial materials, aluminum alloy, aluminum doors and windows and other industries. It's a kind of aluminum correction machine.

MAIN PERFORMANCE

Easy to understand the operation, save human time.
Good plastic surgery effect, high efficiency.
Support custom, apply to a variety of plastic wheel size specifications, according to customer production needs, to provide production programs.

USE RANGE

The aluminum surface shaping machine is primarily used for straightening and reshaping aluminum profiles, PVC profiles, and stainless steel profiles to correct bending deformation, ensure surface flatness, and maintain cross-sectional angles. Featuring simple operation and excellent reshaping capabilities, it serves as an auxiliary product in the profile industry.

PROFILE SHAPING PROCESS

The vertical frame is provided with a plurality of driving rollers and driven rollers, and the wall thickness is thin for different pairs of shape sections, the profile with ARC section is corrected and shaped

by adjusting the position, quantity and spacing of main and auxiliary shaping wheels.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Machine external dimensions (L×W×H mm): 1850×970×1800.
Motor: 1.5KW (Variable Frequency Drive).
Upper Bearing: Self-aligning 1313, Lower Bearing: 6213.
Shaft: Φ65×900.
Shaping Rollers: Φ190×40 (6 pieces supplied with machine). Wear parts: Nylon.
Side guide wheels: Φ80×500 (2 pcs), Φ80×200 (2 pcs). Wear parts: Nylon.
Elevation screw: Utilizes a sleeve-mounted cross-pull steel wire screw for spiral elevation.
Maximum forming dimensions: 250×350mm.
Machine inlet/outlet equipped with 2 sets of 6-meter galvanized roller frames covered with felt.

KEY FEATURES

Eliminates bending and wave-like deformation in aluminum profiles caused by transportation, cutting, or processing.
Corrects unevenness resulting from internal stress.
Enhances machining precision and finished product quality of aluminum profiles.
Suitable for correcting aluminum profiles of varying lengths and cross-sections.
