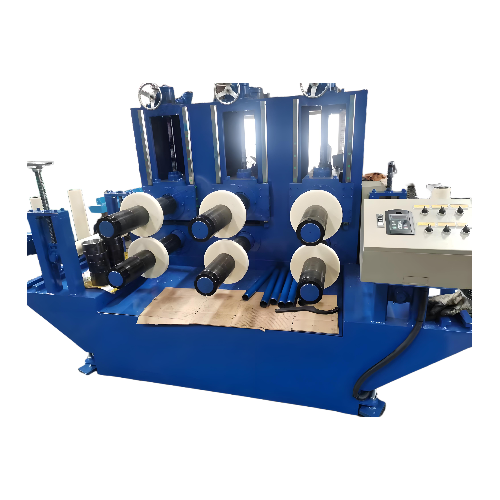

Aluminum Profile Trimming Machine

aluminum straightening machine is mainly used for profile surface flatness shaping and material angle correction，applicable to aluminum profiles, industrial materials, aluminum alloy, aluminum doors and windows and other industries. It is a kind of aluminum deep processing machinery.

MAIN PERFORMANCE

Easy to understand the operation, save human time.
Good plastic surgery effect, high efficiency.
Support custom, apply to a variety of plastic wheel size specifications, according to customer production needs, to provide production programs.

USE RANGE

The Aluminum Profile Trimming Machine is primarily used for straightening and reshaping aluminum profiles, PVC profiles, and stainless steel profiles to correct bending deformation, ensure surface flatness, and maintain cross-sectional angles. Featuring simple operation and excellent reshaping capabilities, it serves as an auxiliary product in the profile industry.

PROFILE SHAPING PROCESS

The vertical frame is provided with a plurality of driving rollers and driven rollers, and the wall thickness is thin for different pairs of shape sections, the profile with ARC section is corrected and shaped

by adjusting the position, quantity and spacing of main and auxiliary shaping wheels which is the surface treatment machine accessory.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Overall Dimensions: Length × Width × Height 3000 × 1600 × 1700 mm
2. Cycloidal Motor: 7.5 kW (Variable Frequency Speed Control) Gear Ratio: 1:23
3. Shaft: Φ120 × 1200 (Three Sets) Effective Length: 500 mm
4. Lifting Motor: 3T-1.5KW 3 units (Electric lifting, manual fine adjustment possible)
5. Linear Guide: HGR35 Guide Block: HGH35CA
6. Upper Bearing: Self-aligning 22224K (6 pieces)
7. Lower Bearing: 6224 (6 pieces)
8. Side guide wheels: 80×300 (Nylon)
9. Shaping wheels: Φ250×40 (One set)
10. Spacer Sleeve: Φ140XΦ120
11. Conveyor Frame: Length 6000×Width 600×Height 800 120X50X6 Square Tube
12. Hoist Base: Fabricated from No. 16 channel steel, guided by Φ40 electroplated rods
13. Hoist: 2T-0.75KW 4 units
14. Conveyor Frame Rollers: Φ60×700 Felt: Φ60×Φ76×700 Spacing 400mm
15. Maximum Shaping Dimensions: Width 300 × Height 300
16. Control Method: Shaping machine with three sets of upper shaft button-operated electric lifting; lifting conveyor frame with button-operated lifting

KEY FEATURES

Eliminates bending and wave-like deformation in aluminum profiles caused by transportation, cutting, or processing.
Corrects unevenness resulting from internal stress.
Enhances machining precision and finished product quality of aluminum profiles.
Suitable for correcting aluminum profiles of varying lengths and cross-sections.
