Product details

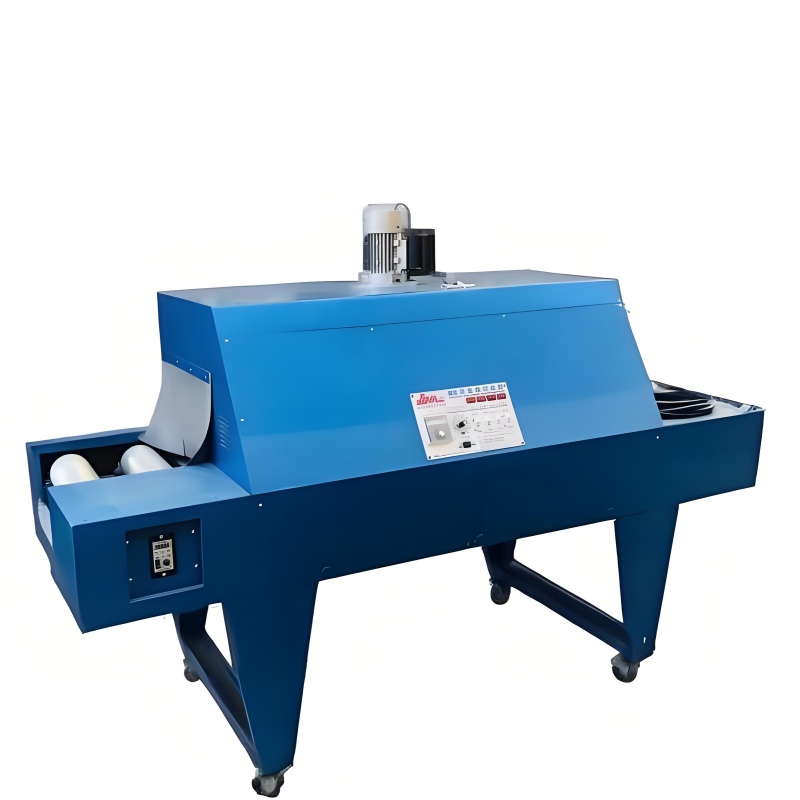

Aluminum Heat Shrink Packing Machine Aluminum Rear Packaging Machinery

MAIN FEATURE

1、Wrap the product with heat-shrinkable film and then heat it so that the film shrinks and wraps the product tightly.

2、Automatic buffer protection .

3、Humanized and flexible control.

4、Speed and temperature, automatic tracking compensation.

5、Can extend the toughness of the shrink film, weather resistance, effectively reduce the transportation of the phenomenon of breakage.

MAIN STRUCTURAL COMPONENTS

1. A high-efficiency, heat-resistant fan is installed atop the heat chamber. It utilizes an ultra-efficient, high-temperature-resistant, high-speed motor imported from the United States under the “General Electric” brand (rated: 220–240V/60Hz/650W, 3450 rpm, temperature resistance 140°C, no-load current 0.5A, operating current 1A, actual power consumption approximately 100W, yet delivering performance equivalent to a domestic 750W fan; Compared to fans used by other shrink wrapper manufacturers, which generally consume higher power and current (typically over 3A). It also employs a high-temperature resistant motor structure, capable of withstanding harsh working environments with furnace temperatures up to 200°C. Even after prolonged use, it maintains consistent speed and airflow without degradation, providing reliable assurance for perfect shrink wrapping, low-temperature packaging, energy-efficient packaging, and high-efficiency packaging.

Unlike fans from other manufacturers, which experience noticeable speed reduction or burnout after short-term use (e.g., dropping from 2800 rpm to 2400 rpm), severely compromising shrink performance.

2. Incorporates elliptical U-shaped side-insertion metal far-infrared high-efficiency heating tubes manufactured using Swiss technology. These tubes convert electrical energy into thermal energy efficiently, offering excellent temperature stability, rapid heating, and energy savings. The machine operates on three-phase four-wire power supply with 8kW capacity.

3. Features an automatic temperature control circuit combining Japanese-imported Mitsubishi AC contactors and renowned brand temperature controllers, supporting a maximum temperature of 250°C.

4. The drive system employs a high-stability 0.18kW AC drive motor from an imported joint-venture brand, paired with a renowned variable frequency drive. Equipped with a “Forward. Stop. Reverse” switch, it delivers exceptionally stable packaging conveying speeds adjustable from 0–25m/min, handling loads ≥80kg.

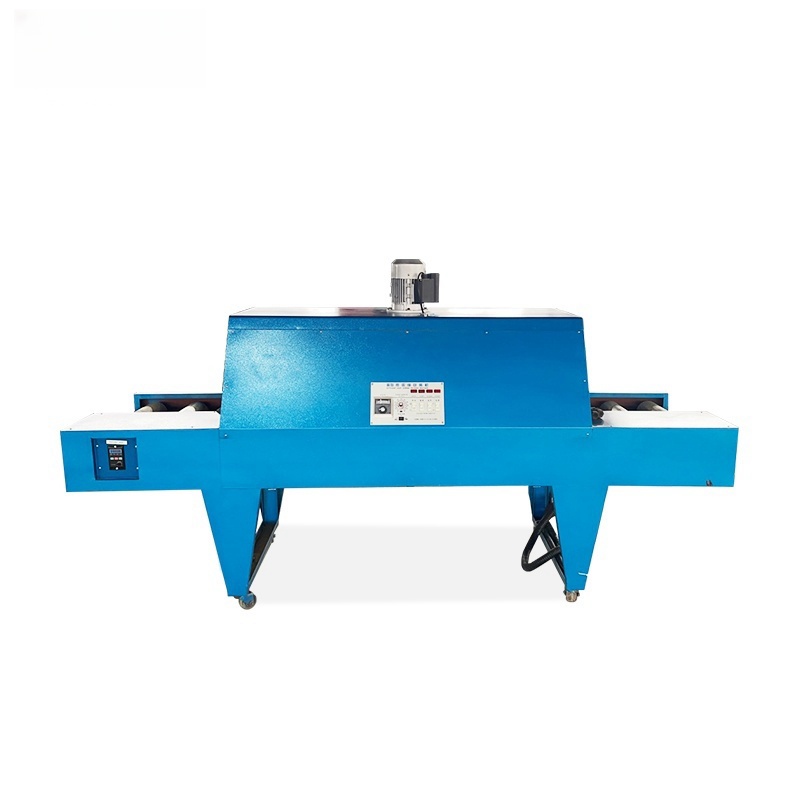

Heat Shrinking Packing Machine For Aluminum

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1 Machine Dimensions: 2060×760×1400(L×W×H mm)

2 Hotbox Access Dimensions：1260×400×270(L×W×H mm)

3 Motor Power：0.18KW drive motor

4 Power Supply：380V 3-phase 4-wire

5 Feeding Speed：0-25 m/min adjustable

6 Conveying Weight：≥80kg

7 Highest Temperature：250°C

8 Conveyor Platform Height：Approx. 730mm

9 Configuration: 1）One 4-meter long conveyor at each entrance and exit.

2）Installation of 2 steel rollers （φ60mm）at each entrance/exit end

APPLICATION SCENARIOS

The aluminum heat shrink packing machine is an automated packaging device specifically designed for aluminum profiles. Through the process of **“film bagging → heating shrinkage → sealing and setting,”** the heat-shrinkable film (PVC, POF, PET, etc.) adheres tightly to the surface of the aluminum profile or bundled profiles when heated, forming a 360° sealed protective layer.

The Heat Shrink Machine For Aluminum Applications, Particularly Suited for the Following High-Frequency Needs:

1. Production Workshops: Bundled packaging, achieving “final form” upon line-off.

2. Warehousing: Sealed moisture protection, extending storage cycles.

3. Long-Distance Transportation: Shock and impact resistance, reducing cargo damage.

4. End-User Delivery: Standardized packaging enhances quality perception, boosting customer trust.
