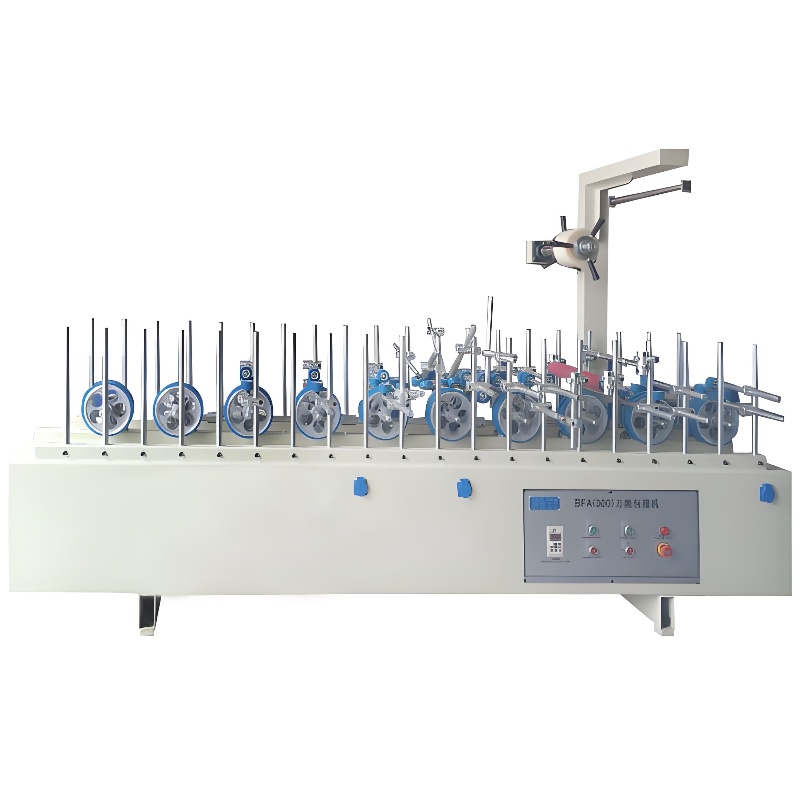

Protective Film Sticking Machine For Aluminum Profiles

MAIN FEATURE

Featuring a simple architecture and practical ease of use.
It can effortlessly apply film to channel-shaped, circular, and plum-blossom-patterned extrusions using a single sheet of film.
Achieving a smooth, wrinkle-free, bubble-free finish with superior quality.

USE RANGE

This aluminum film laminating machine delivers high-quality film application for complex shapes such as circular, curved, channel-shaped, plum-blossom patterns, and convex/concave profiles on aluminum extrusions, stainless steel extrusions, and composite wood-plastic boards.

FILM LAMINATION PROCESS

The roll protective film is installed on the sticking film machine, the product is put on the attaching platform, and the aluminum film sticking machine is started to stick the protective film on the surface of the product accurately and automatically

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Machine Dimensions: 3000×750×1750(L×W×H mm)
2. Conveyor Speed: 0-20 m/min.
3. Control Method: Foot switch controls film application “On” and “Off”.
4. Maximum Film Width: 300 mm
5. Drive Motor: 380V/1.5KW; Frequency Converter: 380V/1.5KW.

OUR ADVANTAGE

Features imported high-wear-resistant polyurethane rubber rollers.
Equipped with premium German VEM brand drive motors, with optional variable speed drives from “Shilin,” “Yuanxin,” or “Mitsubishi.”
Control circuit employs high-quality components including Japanese-imported “Mitsubishi” contactors and Japanese-imported overload protection switches.
Streamlined and advanced control circuitry; foot switch controls low-voltage safety signals and supports external connection of photoelectric switches, limit switches, proximity sensors, etc., for automated control.

BENEFITS

- Protects the surface from scratches and corrosion.

- Enhances the appearance of the aluminum.

- Can add functional properties like UV resistance or anti-fingerprint.
