Aluminum Automatic Bagging Machine Single Aluminum Bagging Machine

EQUIPMENT OVERVIEW

Single bundle bagging machine for aluminum is specifically designed for packaging aluminum profiles into bags. It is only suitable for use with shrink film bags.

This product features a unique design, ensuring safety and reliability, ease of use, enhanced work efficiency, energy savings, reduced labor requirements, and a low price point.

Aluminum Automatic Bagging Machine Features:

1. The main frame is constructed as an integrated structure, ensuring stable movement and smooth transfer during operation. This minimizes collisions and friction with aluminum profiles, thereby improving product yield rates.

2.The movement system employs servo motor drive with rack-and-pinion and slide rail guidance, delivering high positioning accuracy, low noise, and smooth braking.

3.Manual bagging is performed, with a cycle time of 15-25 seconds per bag. This reduces labor intensity and enhances efficiency.

4. Electrical Control System: Servo motors, frequency converters, touchscreens, and proximity switches utilize premium domestic brands. The PLC employs a domestic brand, with the electrical control system managed by PLC. An independent control system is adopted. Low-voltage electrical components are sourced from the renowned domestic brand Chint. The control system integrates a PLC with a 10-inch touchscreen. The equipment is equipped with safety emergency stop devices or buttons to ensure operator safety.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Model: Left-handed machine

2. Equipment Footprint: Designed for 6.5-meter material length. Overall machine dimensions: Length 19000mm, Height 1680mm, Width 2200mm. With material storage conveyor rack: Total width 4 meters (Note: Storage rack width can be increased based on client factory space constraints).

3. Bundle Quantity: Single bundle per cycle

4. Profile Specifications: Maximum length: 4–6.8 meters; maximum width: 80–300 mm; maximum height: 40–200 mm.

5. Main Unit Input Power: Approx. 5 kW (excluding heat shrink machine power).

6. Production cycle: Approximately 15–25 seconds

7. Weight per bundle: Not exceeding 30 kg. Exceeding this weight will relatively slow down the bagging speed.

8. Shrink film bag thickness: ≥10C

PACKAGING PROCESS

Per customer requirements; after film application, each profile is manually bundled into single bundles. Bundle ends are

sealed with shrink wrap or advertising paper. After affixing labels to each bundle head, they are arranged on conveyor racks

awaiting bagging (or stacked on mobile racks awaiting manual transfer into the bagging zone).

Bagging Process: Input parameters on the display screen. Press the jog button to move the profile to the bagging position.

Manually cover the profile head with a towel, then place the bag over the head. Press the bagging jog button. After bagging

is complete (if applicable: automatically cut the bag), retrieve the towel. Proceed to bag the next bundle. As the second

bundle enters the bagging zone, the first bundle is laterally moved out (if applicable; automatic entanglement and sealing of

the bag opening). Then, advance the bundle forward for shrink wrapping completion. (The entire process from bagging to

shrink wrapping and discharge onto the storage rack requires only one operator).

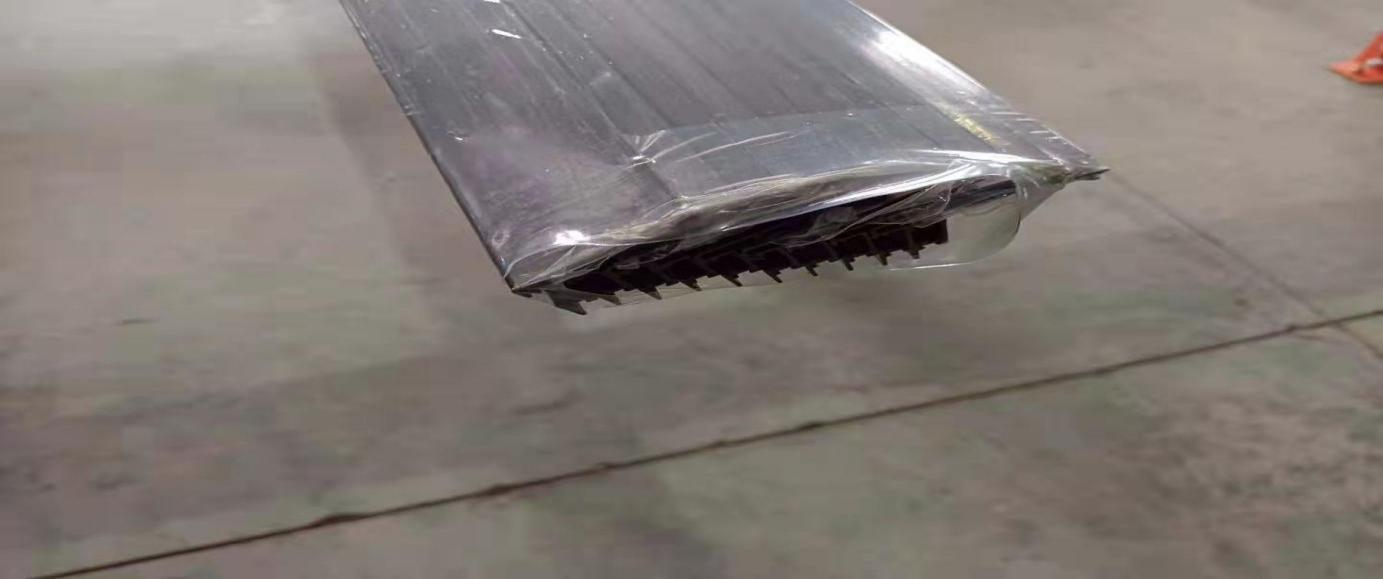

Note: After heat shrinkage of the shrink film bag, a 20mm~30mm excess material tail remains.
