Model of Methanol generator set |
GHW35GF-M | GHW150GF-M | GHW200GF-M | GHW300GF-M | GHW400GF-M |
Rated Power |
35kW () | 150kW () | 200kW () | 300kW () | 400kW () |
Rated Voltage |
400V/230V | 400V/230V | 400V/230V | 400V/230V | 400V/230V |
Rated frequency |
50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
Electrical Phase |
Three-phase four-wire system | Three-phase four-wire system | Three-phase four-wire system | Three-phase four-wire system | Three-phase four-wire system |
Power Factor |
0.8 ( lag) | 0.8 ( lag) | 0.8 ( lag) | 0.8 ( lag) | 0.8 ( lag) |
Steady-state voltage regulation |
≤±2% | ≤±2% | ≤±2% | ≤±2% | ≤±2% |
| Transient voltage adjustment rate | -25%~+35% | -25%~+35% | -25%~+35% | -25%~+35% | -25%~+35% |
Voltage recovery time |
≤10s | ≤10s | ≤10s | ≤10s | ≤10s |
Voltage fluctuation rate |
≤1% | ≤1% | ≤1% | ≤1% | ≤1% |
Steady-state frequency regulation |
≤±2% | ≤±2% | ≤±2% | ≤±2% | ≤±2% |
Frequency settling time |
≤10s | ≤10s | ≤10s | ≤10s | ≤10s |
Transient frequency regulation |
-25%~+18% | -25%~+18% | -25%~+18% | -25%~+18% | -25%~+18% |
Frequency Wave Rate |
≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% |
Power (kW/h) |
50kW | 200kW | 240kW | 380kW | 600kW |
Rotational speed |
3000 r/min | 1500 r/min | 1500 r/min | 1500 r/min | 1500 r/min |
Whether support processing customization:Yes
Whether imported:No

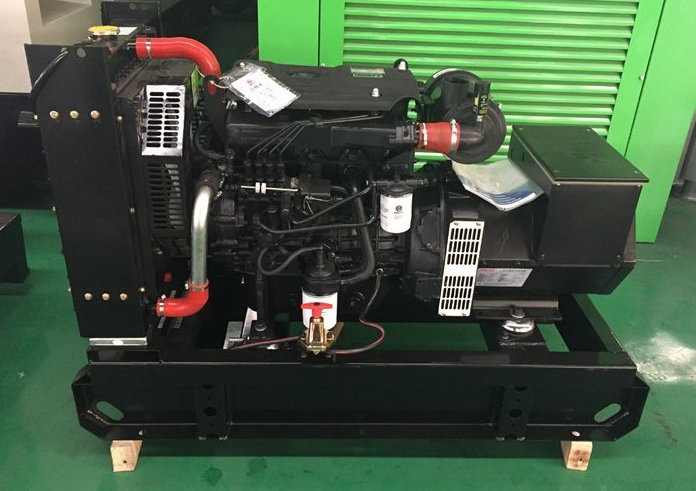

Product name:Weichai 150KW methanol generator set
Product certification:ISP9001
Voltage:400V
Frequency:50Hz
Starting method:electric start
Phase:3
Battery capacity:120Ah
RPM:3
Speed:1500RPM
Cooling method:water-cooled
Power:150KW
Protection level:IP23
1. Engine (1500 rpm): fuel and oil filter, dry air filter, oil and antifreeze drain valve, oil inlet and outlet ports, 40-degree high-efficiency cooling water tank.
2. Generator (400VAC, 50Hz): temperature rise class H, insulation class H, protection class IP23.
3. Control and assembly system: self-starting control panel, key knob, emergency stop button, high-strength steel base frame, high-performance vibration and noise reduction rubber vibration isolator.
4. Smoke exhaust system and others: industrial grade silencer, smoke exhaust stainless steel bellows, smoke exhaust flange and gasket, unit test report, certificate of conformity, electrical schematic diagram.
5. Related accessories: PMG permanent magnet assembly, cell phone APP monitoring, fuel water jacket heater, automatic replenishment control box, ATS automatic switching switch, differential protection device, discharge pump.
6. Basic control system: adopting DEEPSEA or control module, adopting pointer meter to indicate the unit, the system has low oil pressure and high water temperature overspeed short-circuit protection.
7. Self-starting control system: adopts DEEPSEA or control module, control module adopts LCD to display the unit, ATS dual power supply automatic switching switch, dual power supply voltage display.
8. Parallel and simultaneous system: the control module has the functions of parallel, grid-connection and power management, the number of parallel generator sets can be up to 128, power measurement device is optional, and the communication function is optional.
Jinan Guohua Green Power Equipment Co., Ltd. was founded in 2010, after fifteen years of development, has formed a complete diesel generator sets (multi-brand, support OEM), gas generator sets (natural gas, biogas, companion gas, etc.), 190 series engine (Jichai brand: 6L190, 8V190, 12V190, 16V190) sales and after-sales service system.
Main Business Scope
Pre-phase: Consultation, design, supply and installation of engine power plants such as diesel generator sets, natural gas generator sets, gas generator sets, biogas generator sets, etc.
Mid-term: supply of spare parts for Jinan diesel engines (Cummin/Jichai/Chidong brand/Weichai/AB) JNGH has two warehouses, one located in Jinan to supply the domestic market in the north and south, and the other located in Xinjiang to supply the western market, so it can deliver the spare parts quickly and guarantee the quality.
Post: JNGH also provides engine overhaul and maintenance services, with experienced engineers and specialized technology, it can easily solve all kinds of problems.
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Generator Set,
Gas Generator,
Diesel Generator,
Marine Diesel Engine,
Drilling Rig Engine ,
Coal Generator
