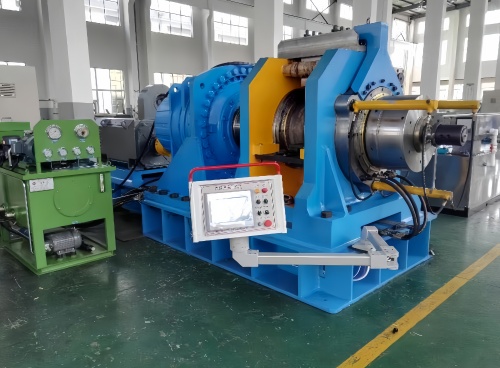

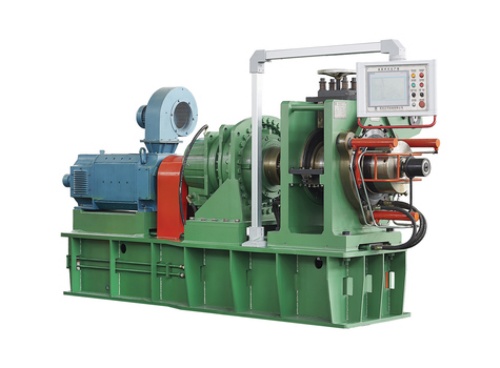

300 Aluminum Continuous Extrusion Machine

300 Aluminum Continuous Extrusion Machine is a high-performance extrusion system designed for the efficient production of solid and hollow aluminum products. This machine utilizes radial direction continuous extrusion technology with a single wheel and single groove, making it ideal for processing both pure aluminum and aluminum alloys. The extrusion process is optimized to ensure consistent quality, high productivity, and minimal material waste. With a nominal extrusion wheel diameter of 300mm, this machine is capable of handling a wide range of aluminum rod sizes, including Ø9.5mm and Ø12mm, allowing for flexibility in manufacturing different types of aluminum profiles.

I. Introduction

Extrusion mode: Radial direction continuous extrusion by single wheel and single groove

Application: Solid and hollow aluminum.

Raw material: Ø9.5mm Aluminum rod

II. Main Technical Specifications

Extrusion wheel nominal diameter 300mm

Main motor power 90kw

Installed power 110kw

Extrusion machine speed 22.5 m/rpm

Types of materials Pure aluminum,aluminum alloy

Rod diameter F9.5/12

Product scope of section 5-150mm²

Product maximum width Flat wire,30 mm flat tube,pipe diameter 20 mm

Average productivity 230kg/h

Material overflow rate 0
