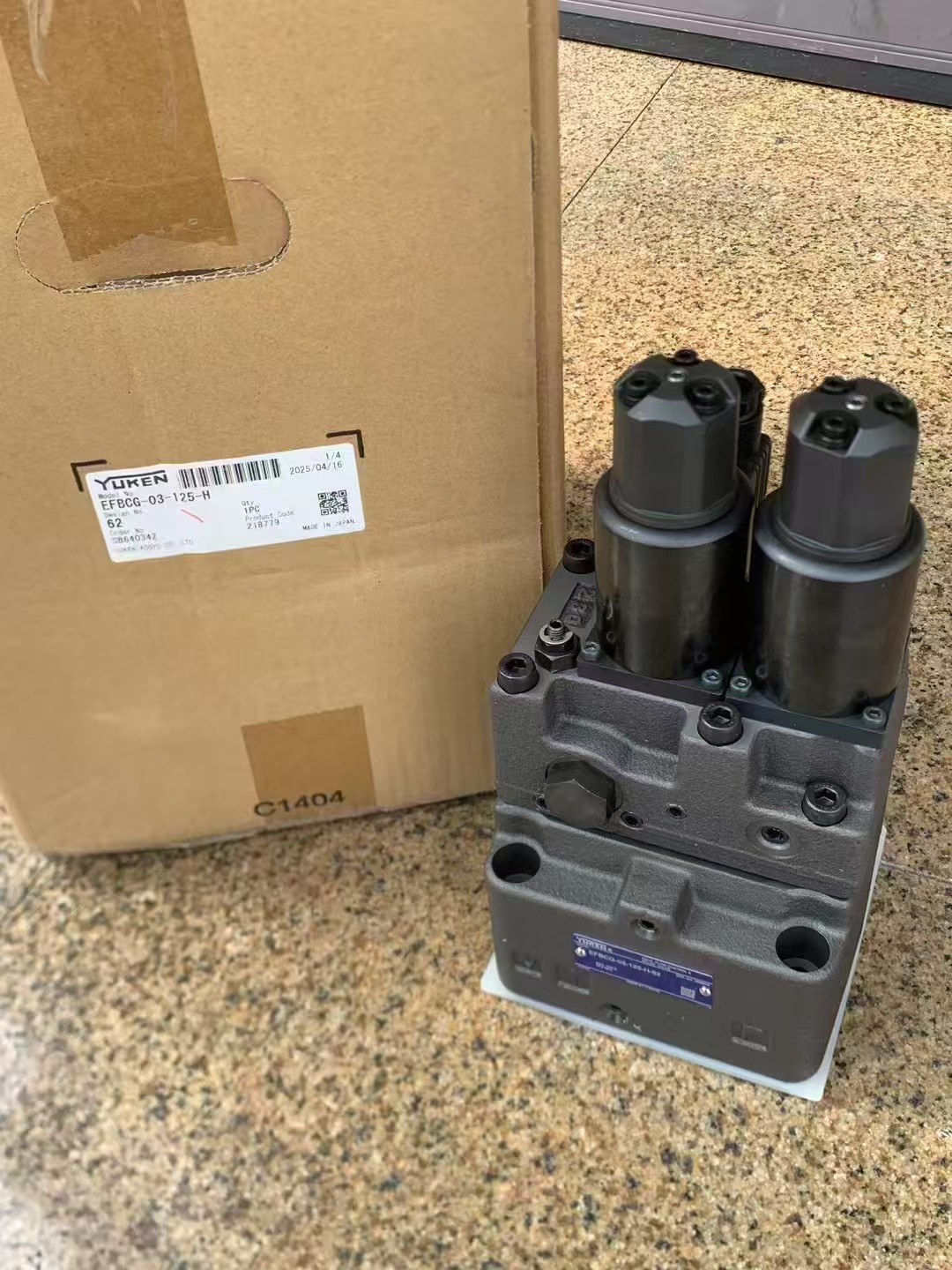

YUKEN EFBCG-03-125-H hydraulic valve

YUKEN EFBCG-03-125-H hydraulic valve

5 week ago

0 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

Product Definition and Type

• Category: Electro-hydraulic proportional flow control valve (speed control valve), classified as a pressure-compensated flow control device with integrated pressure and flow proportional control functions.

• Core Function: Precisely regulates hydraulic system flow and pressure via electro-hydraulic proportional technology, featuring pressure compensation and temperature compensation to ensure stable flow unaffected by load, temperature, or pressure fluctuations.

Technical Parameters and Specifications

• Bore Size and Flow: Nominal bore size 10mm (corresponding to model "03"), maximum flow 125 L/min, flow adjustment range 1.0–125 L/min.

• Pressure Characteristics: Maximum operating pressure 24.5 MPa, pressure adjustment range 1.4–21 MPa (H series), required pressure differential ≥0.5 MPa.

• Electrical Parameters: Rated current 680 mA (flow control)/710 mA (pressure control), coil resistance 43.5 Ω (flow)/10 Ω (pressure), hysteresis <7% (flow)/<3% (pressure), repeat accuracy 1%.

• Physical Characteristics: Weight ≈16 kg, operating temperature -20°C to +65°C (some models support higher temperatures), connection method: ISO-standard pipe or plate connection.

• Special Design Features:

• Pressure Compensator: Dynamically adjusts pressure differential to maintain stable flow.

• Temperature Compensation: Minimizes oil temperature impact on flow stability.

• Modular Structure: Supports integration with stack valves and rectifier plates for bidirectional flow applications.
