OBDII-16P male connector

10 month ago

34 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

In the backbone of modern automotive electronics—where every diagnostic scan, data log, and aftermarket device connection relies on a seamless link to a vehicle’s On-Board Diagnostics (OBD) system—the OBDII-16P Male Connector stands as an indispensable component. More than just a “plug,” this precision-engineered interface is designed to meet the strict standards of the OBDII protocol, serving as the critical bridge between external tools (diagnostic scanners, dashcams, telematics devices) and a vehicle’s ECU (Engine Control Unit). For auto technicians, fleet managers, car enthusiasts, and automotive developers alike, our OBDII-16P Male Connector isn’t just a part—it’s the reliable foundation that ensures accurate data transmission, universal compatibility, and long-lasting performance across millions of vehicles worldwide.

Item	Description

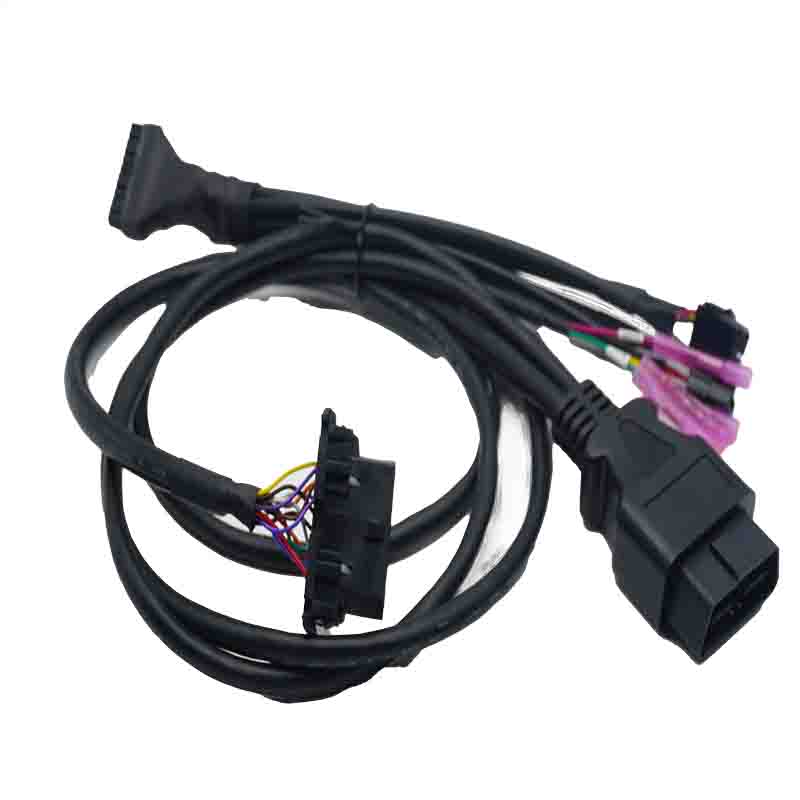

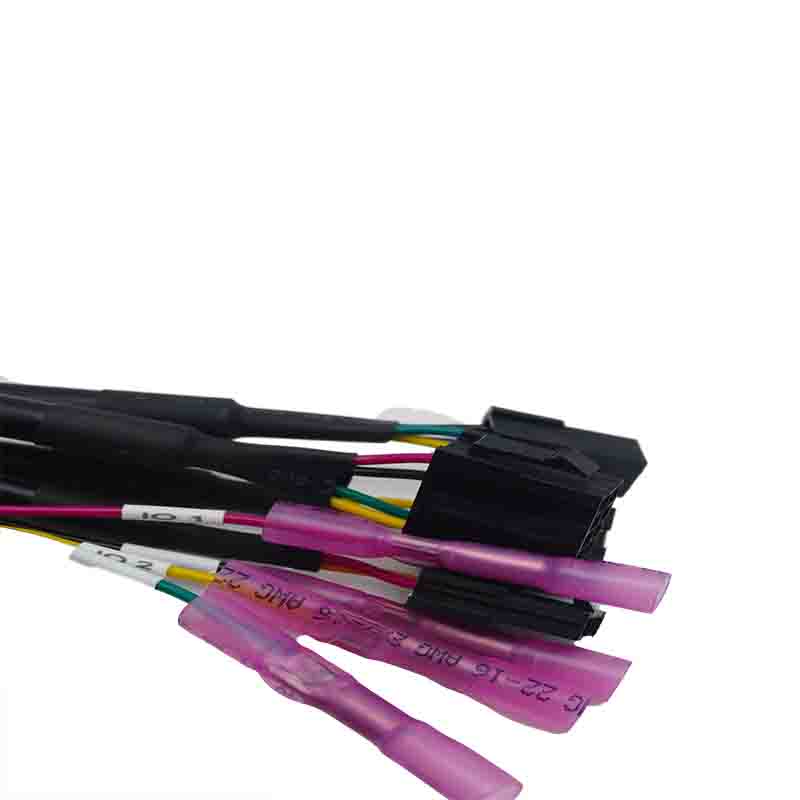

Product Name	OBDII 16P male connector
Type	12V Automotive OBD Signal & Power Custom Wiring Harness
Voltage	12V DC, Customized Available
Pins Material	Nickel-Plated Brass OBD Standard Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade OBDII 16Pin Male Connector Housing, Multi-spec Small Plastic Terminal Housings, Black Flexible PVC Cable Jacket with Strain Relief Protection
Working Temperature	-40℃~+105℃ Or Customized
Length	1000±50mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Application Fields	Automobile fault diagnosis equipment matching, on-board monitoring equipment wiring expansion, vehicle refitting signal tapping, automotive electronic R&D test bench wiring, auto repair shop multi-module test connection, DIY automotive electronic transformation projects, customized multi-branch OBD diagnostic cable
Specific Shipping Cost	Please Contact Us

At its core, this connector is built to adhere to SAE J1962—the global standard for OBDII interfaces—ensuring flawless integration with 100% of OBDII-compliant vehicles manufactured since 1996 (including all passenger cars, SUVs, MPVs, and light trucks sold in North America, Europe, Asia, and beyond). Unlike generic “one-size-fits-all” connectors that cut corners on pin alignment or material quality, our OBDII-16P Male

Connector features a precise 16-pin configuration that matches the exact pinout required by OBDII protocols. Each pin corresponds to a specific function—from power supply (pins 16 for 12V) and ground (pins 4, 5) to data buses (CAN High on pin 6, CAN Low on pin 14, K-Line on pin 7)—ensuring it supports all OBDII communication protocols, including CAN (Controller Area Network), J1850 PWM/VPW, and ISO 9141-2. This universal compatibility eliminates the frustration of “wrong connector” delays, making it a go-to choice for repair shops that service diverse vehicle makes (Toyota, Ford, BMW, Honda, Volkswagen, and more).
