CTC Transposition Wire Production Line
1. Introduction
The continuous transposed conductor (CTC) machine is used to produce continuous transposed conductors for use in power transformer windings.
The Continuous Transposition Conductor (CTC) machine can achieve small side curves of flat conductors through precise mechanical actions of the transposition device, converting and repeating each other; Then combine the insulation paper with the insulation paper, and finally remove it.
2. Characteristic

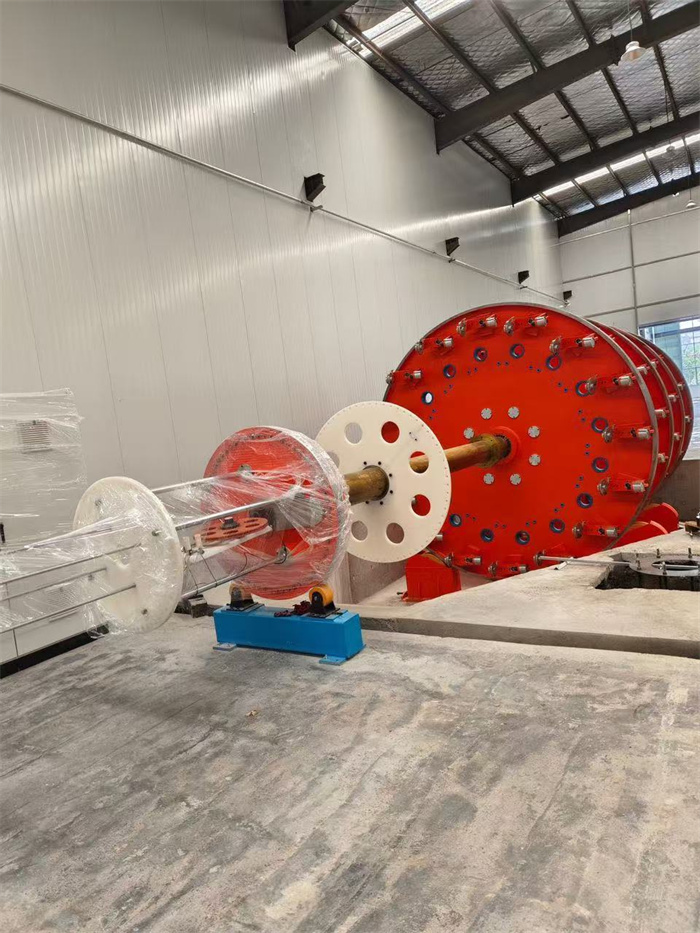

The diameter of the cage is 3.2 meters, with 12 coils per cage. The main motor of the cage is driven by a servo motor (55KW), which improves the problem of weight loss and ensures the accuracy of the displacement pitch. The cage brake is also braked by a servo motor, greatly improving the maintenance and brake pad dust pollution caused by mechanical pneumatic brakes on the wires.
Mechanical forced anti twist device.
Tension fine-tuning forced planning device.

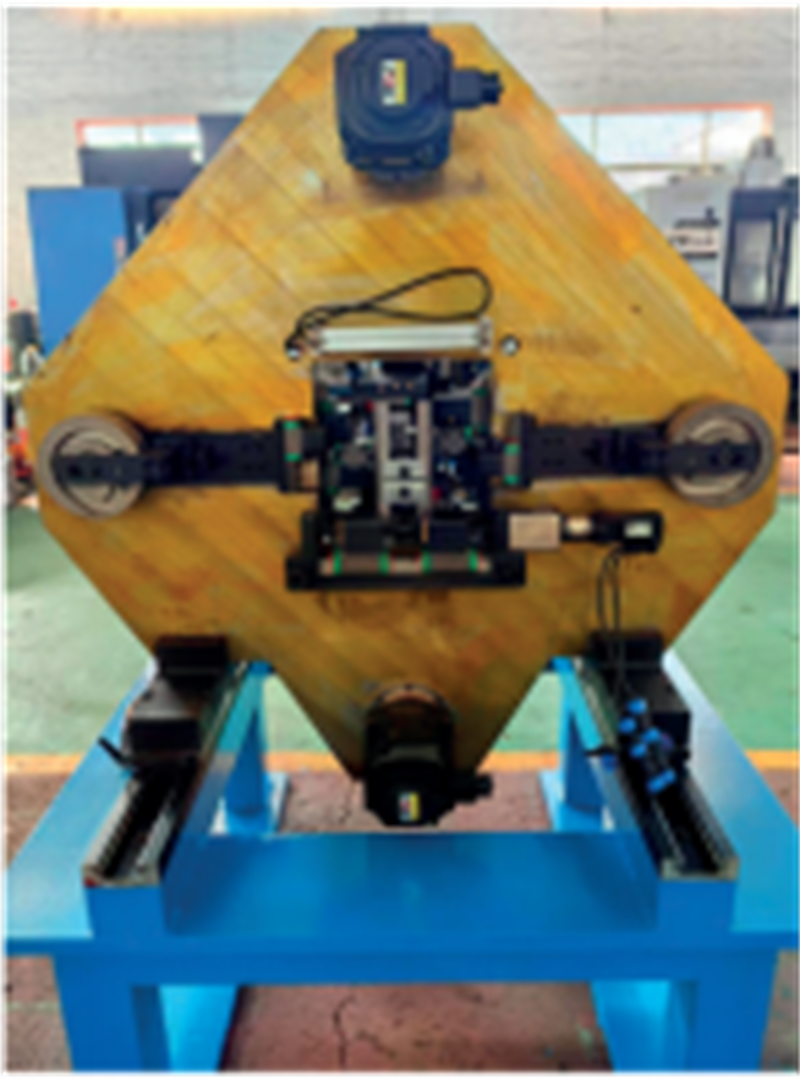

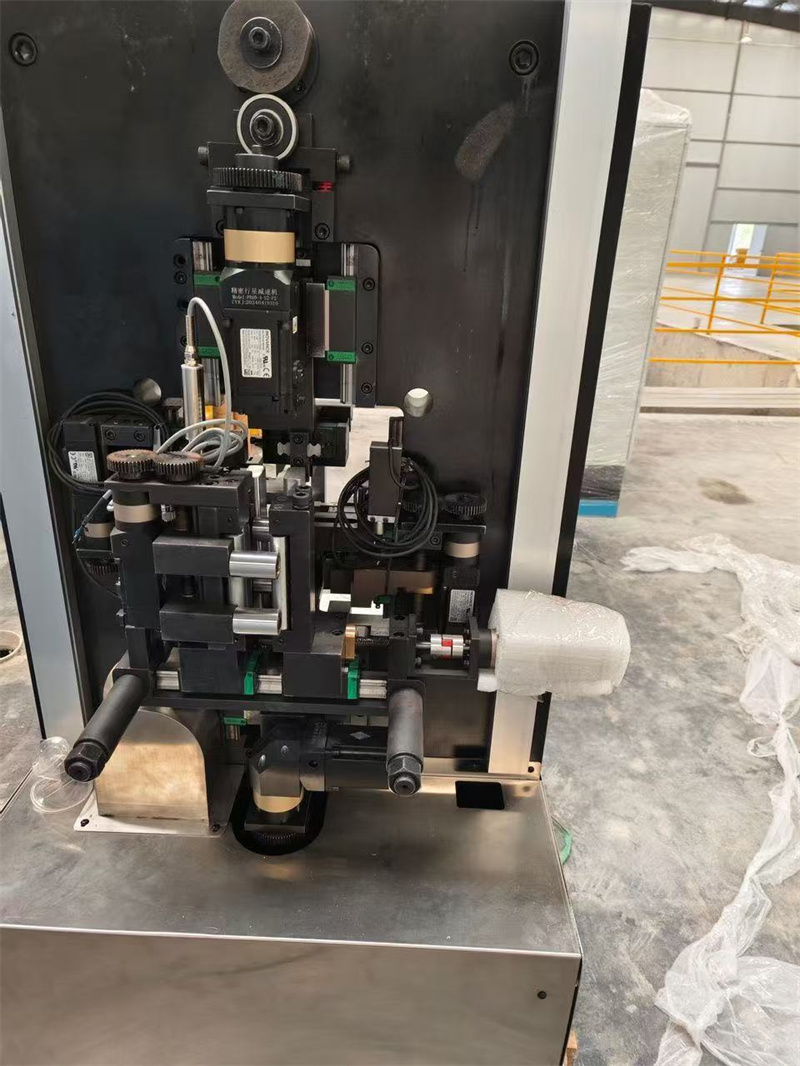

Constant pressure double push method action, with a displacement of 30-225mm, and a maximum frequency of 140-160 adjustments and exchanges per minute without gaps.
Complementary tension type paper packaging, with an overlap rate between 30-70% that can be set arbitrarily.
Flip type sealing traction device, traction force display adjustment.
Servo motor speed regulation, PLC control, high-precision synchronous control transmission of various parts, recording self rectification, remote control diagnosis.
3. Equipment performance
3.1 Production speed: 15m/minute
3.2 Suitable conductor: Material: Copper soft CPR1, CPR2, CPR3, yield strength σ 0.2 ≤ 300N/mm
Thickness: 0.8mm to 3mm
Width: 2.5mm~12.500mm
Width/thickness ratio: 3:1-8:1
3.3 Insulation level of electromagnetic wire:
Acetal resin: Grade 120
Acetal+Self adhesive: Grade 120
Polyesterimide+Polyamide Imide: Grade 200
3.4 Finished wire size:
4mm ≤ thickness ≤ 70mm
5mm ≤ width ≤ 25mm

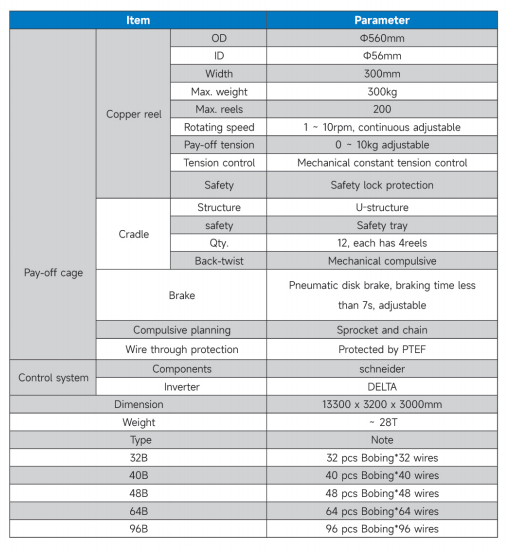

4.Main specifications
5.Equipment schematic diagram
Overall, the CTC Transposition Wire Production Line represents a state-of-the-art solution for transposed wire manufacturing. With its advanced technology, precise control, and efficient operation, it offers a reliable and high-performing option for manufacturers seeking to improve their production processes.
If you are interested in the product, contact 2bvideo.com for more information for more information
