OBD male (24V) to OBD female, 90-degree bend, flat wire, L=500mm

10 month ago

31 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

The 24V OBD male to female cable, featuring an elbow connector, 0.5-meter length, and 16P flat wire design, stands as a specialized and practical accessory for heavy-duty vehicle diagnostic and monitoring tasks. Tailored explicitly for 24V electrical systems—common in trucks, buses, construction machinery, and agricultural vehicles—this cable addresses key pain points of standard OBD cables, blending space efficiency, signal reliability, and durable performance.

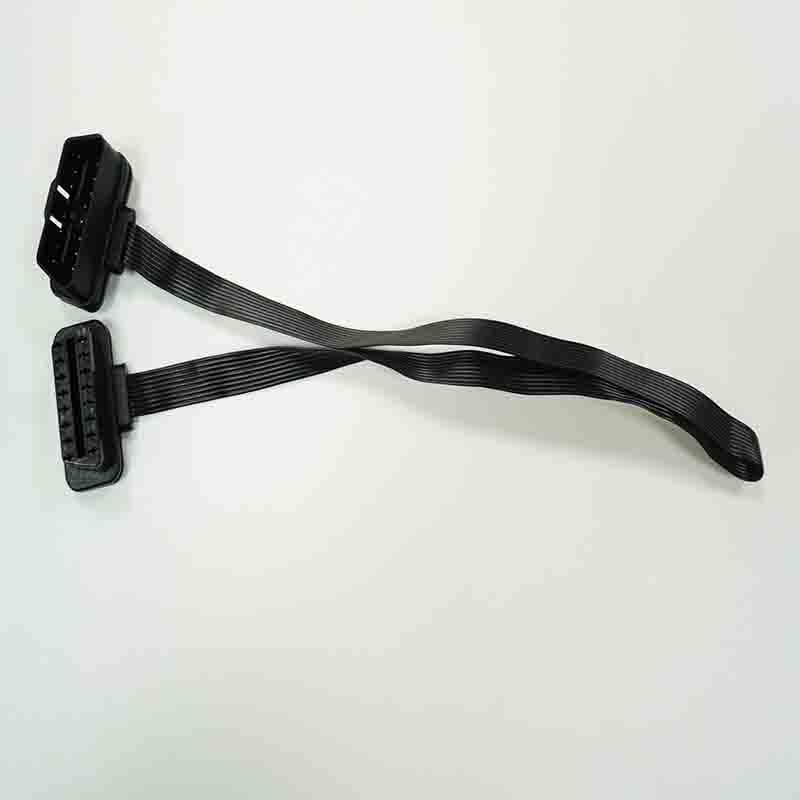

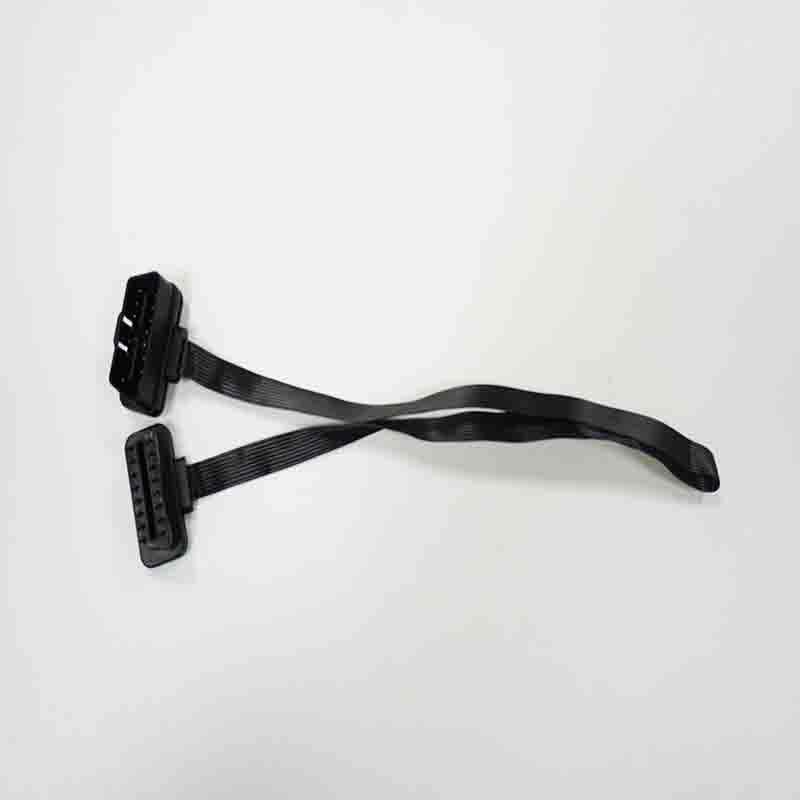

MDL_2 Obd2 Elm327 16-pin male to female extended diagnostic extension cable

A standout feature is its elbow (angled) connector, a design choice that solves the challenge of tight under-dash or engine bay spaces. Unlike straight connectors that often protrude awkwardly, risking damage from nearby components or accidental knocks, the elbow connector bends at a right angle, allowing the cable to fit seamlessly into confined areas. This not only protects the vehicle’s OBD port and the cable’s connector from strain but also keeps the cable neatly routed, avoiding interference with other wires, hoses, or mechanical parts—a critical advantage in cluttered heavy-duty vehicle compartments.

Item	Description
Product Name	OBD 16P Flat Cable Elbow Adapter 0.5m
Type	24V Automotive OBD Diagnostic Flat Wiring Harness
Voltage	24V DC, Customized Available
Pins Material	Nickel-Plated Brass OBD Standard Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade OBDII 16Pin Male & Female Elbow Connector Housing, Black Flexible Flat PVC Cable Jacket
Working Temperature	-40℃~+105℃ Or Customized
Length	500±20mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Application Fields	Automotive OBD diagnostic tool extension, narrow space vehicle OBD port wiring, fleet GPS tracker & monitoring device connection, auto repair shop diagnostic equipment wiring, vehicle modification signal transmission, automotive electronic bench testing, custom OBD flat extension wiring harness
Specific Shipping Cost	Please Contact Us

Complementing the elbow design is the 16P flat wire construction. The 16-pin configuration adheres to universal OBD-II standards, ensuring full compatibility with all 16P OBD ports on 24V vehicles. This means it can transmit all necessary diagnostic data—including engine performance metrics, fault codes, and sensor readings—without signal loss. The flat wire itself offers distinct benefits over traditional round cables: it lies flat against surfaces, reducing tangling and making it easier to route through narrow gaps; its slim profile also minimizes storage space, a plus for technicians who carry multiple tools and cables.

Magideal MDL_2 Obd2 Elm327 16 Pin Male to Female Extension Diagnostic Extender Cable

At 0.5 meters (500mm), the cable’s length hits an ideal balance. It is long enough to connect a diagnostic tool (such as a code scanner or telematics device) to the vehicle’s OBD port while giving technicians flexibility to place the tool on a nearby workbench, seat, or floor—no need to stretch or awkwardly position the device. Yet, it is short enough to avoid excess slack that could lead to tripping hazards, cable clutter, or accidental pulls that might damage the connector or port.

Built for 24V systems, the cable uses high-grade conductive materials to ensure stable voltage transmission. Low-quality cables often suffer from voltage drops, which can corrupt diagnostic data or cause tool malfunctions; this cable’s conductors and insulation are optimized to prevent such issues, delivering consistent performance even during extended use. Additionally, the connectors are reinforced with durable plastic, resisting wear from repeated plugging/unplugging, and the flat wire’s outer sheath is oil- and heat-resistant—critical for withstanding the harsh conditions of automotive repair shops or vehicle engine bays.

In essence, this 24V OBD male to female cable merges thoughtful design (elbow connector, flat wire) with reliable performance (16P compatibility, 24V optimization) and practical length, making it an indispensable tool for technicians and fleet managers working with 24V heavy-duty vehicles.

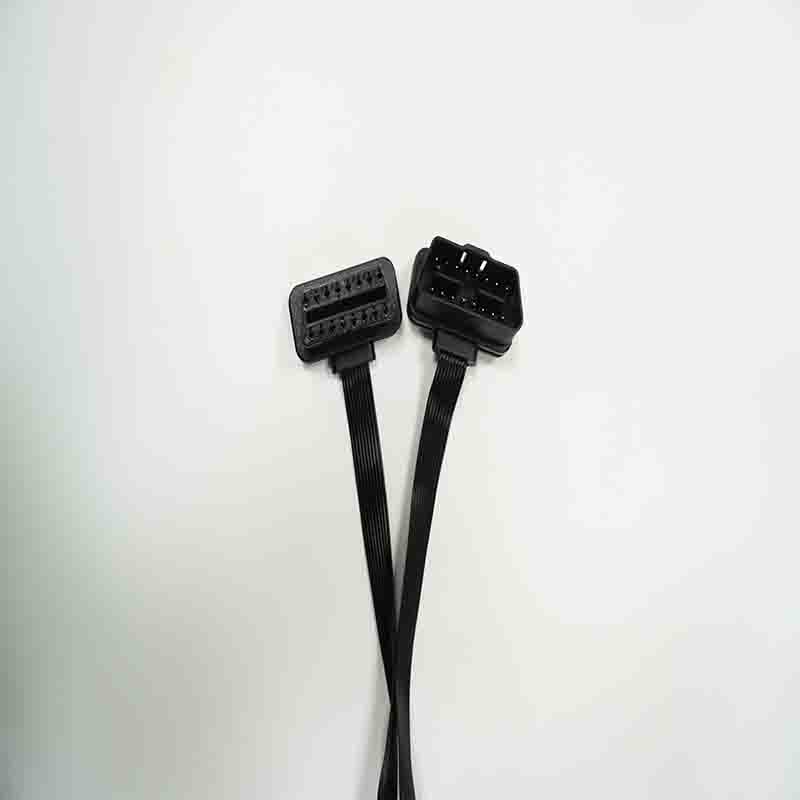

60cm OBD Extension Cable – 16-pin Male to Female Diagnostic Adapter for Scanning Tools
