OBD Male to 26P Cable for Vehicle Diagnostics

10 month ago

28 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

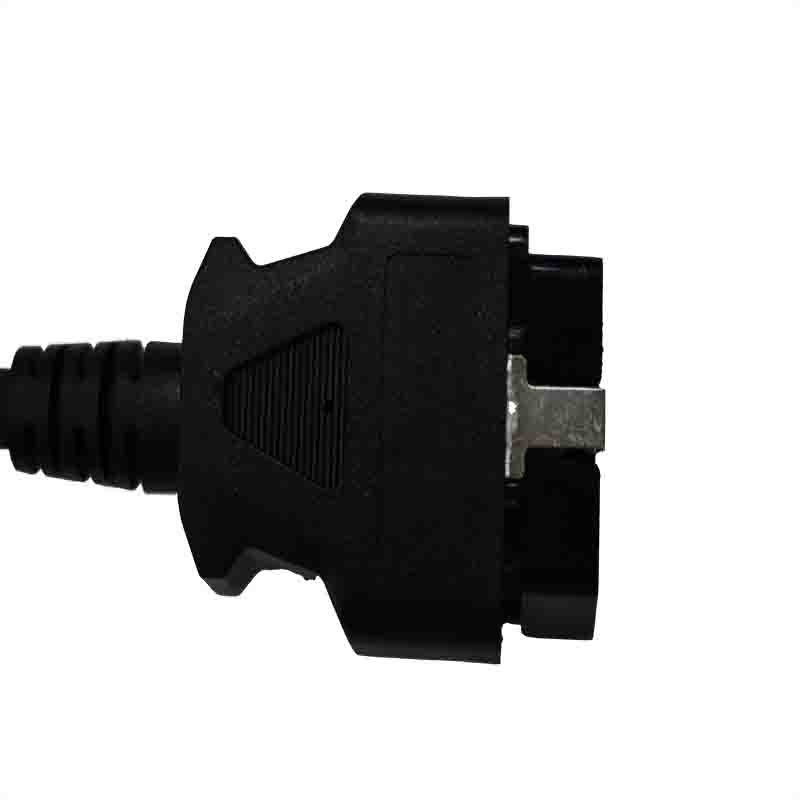

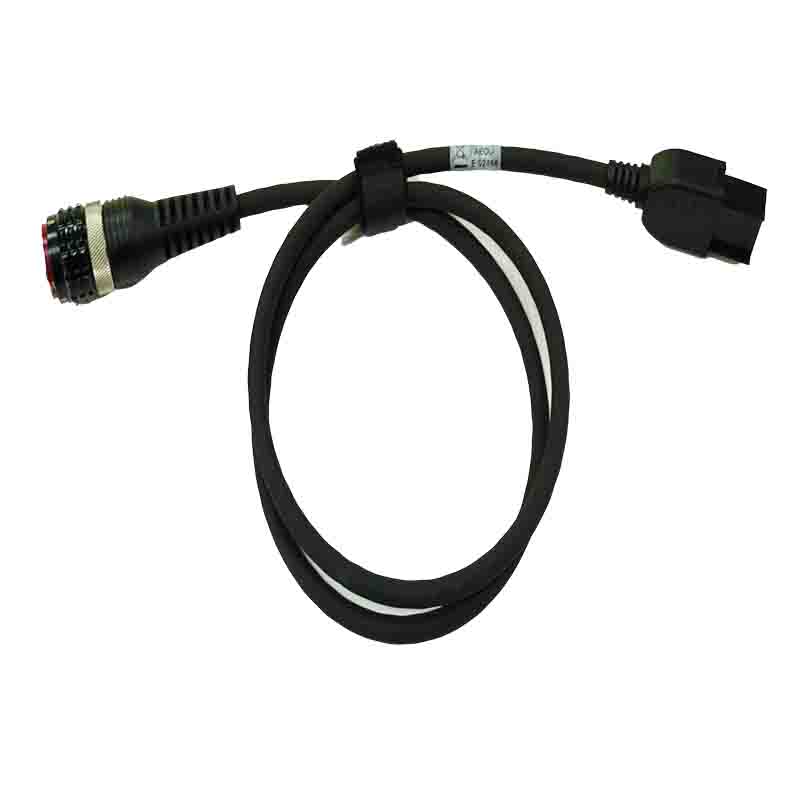

In the intricate ecosystem of automotive diagnostics and industrial data transmission, the OBD male to 26P connector stands as a vital interface, bridging legacy systems with specialized equipment. This adapter serves as a critical link, enabling seamless communication between on-board diagnostic (OBD) ports—standard in modern vehicles—and 26-pin devices, which are common in specialized machinery, industrial sensors, and vintage automotive systems. Its design reflects a blend of functionality and durability, addressing the unique demands of both automotive and industrial environments.

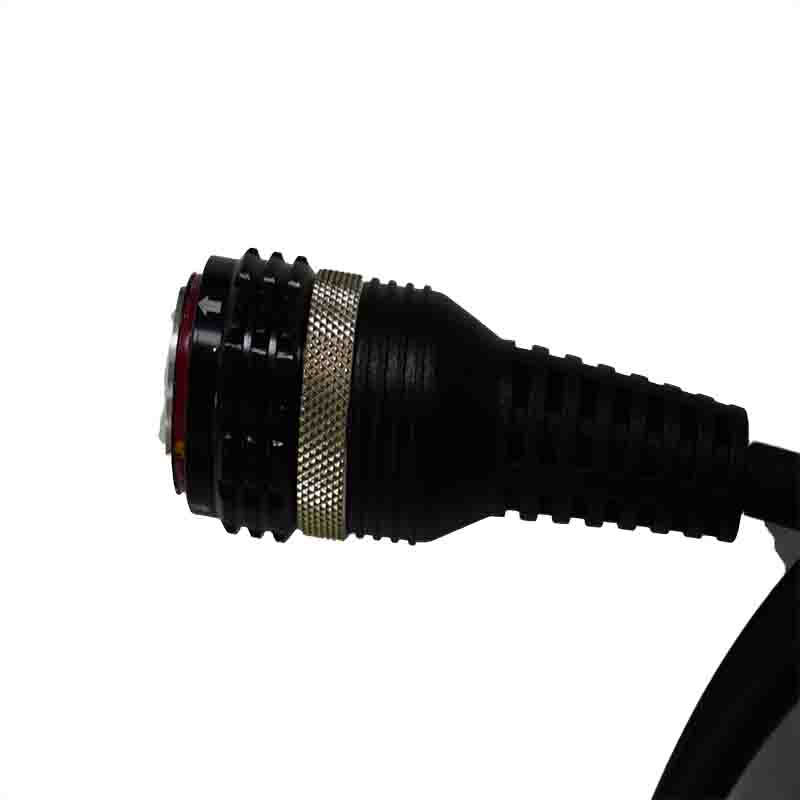

At its core, the OBD male end adheres to standardized OBD-II protocols, featuring a 16-pin configuration that has become universal in passenger cars and light trucks since the 1990s. This end plugs directly into a vehicle’s OBD port, granting access to real-time data streams—such as engine RPM, fuel efficiency, and error codes—generated by the vehicle’s ECU (Engine Control Unit). The 26P counterpart, with its 26-pin layout, caters to more complex, often proprietary systems found in heavy-duty vehicles, manufacturing equipment, or older models that predate OBD-II standardization. This dual compatibility eliminates the need for multiple adapters, simplifying workflows for technicians and engineers.

Item	Description
Product Name	OBD Male to 26P Cable for Vehicle Diagnostics
Type	Automotive OBD to 26Pin Diagnostic & Communication Wiring Harness
Voltage	12V / 24V DC, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade OBDII Connector Housing, Industrial Grade 26Pin Connector Housing
Working Temperature	-40℃~+105℃ Or Customized
Length	1000±30mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Application Fields	Automotive diagnostic tool 26Pin interface connection, vehicle ECU programming and calibration, whole vehicle fault code scanning and data reading, auto repair shop professional diagnostic equipment matching, automotive electronic R&D bench testing, fleet vehicle batch detection wiring, on-board communication system signal transmission, DIY automotive electronic test projects, custom OBD to 26Pin diagnostic wiring harness
Specific Shipping Cost	Please Contact Us

Functionality is a key strength of this connector. It supports bidirectional data transfer, allowing not only the retrieval of diagnostic information but also the programming of settings in compatible 26-pin devices. For example, in a workshop, a technician might use it to connect a modern OBD scanner to a 26-pin-equipped forklift, enabling them to diagnose engine issues without relying on outdated tools. In industrial settings, it can link OBD-enabled vehicle fleets to 26-pin data loggers, centralizing performance metrics for fleet management.

Durability is engineered into every component. The housing, typically made from high-grade thermoplastic, resists heat, vibration, and chemical exposure—critical for withstanding under-hood temperatures or industrial workshop conditions. Gold-plated pins ensure low electrical resistance, maintaining signal integrity even after repeated insertions. This robust construction minimizes downtime caused by connector failure, a crucial factor in time-sensitive diagnostic or manufacturing processes.

Versatility further defines its value. Beyond automotive and industrial use, it finds applications in research and development, where engineers may need to interface OBD data with 26-pin testing equipment. Its compact design allows for easy integration into tight spaces, such as under dashboards or within control panels, without compromising connectivity.

In essence, the OBD male to 26P connector is more than a simple adapter; it is a bridge between technological eras. By harmonizing standardized OBD systems with specialized 26-pin devices, it empowers professionals to work efficiently across diverse equipment, ensuring accurate diagnostics, reliable data transfer, and reduced operational complexity. For anyone navigating the intersection of modern and legacy systems, this connector is an indispensable tool.
