10m Small ToF Distance LiDAR Sensor Automotive 100Hz
Are you looking for a ToF distance sensor with 100Hz fast speed measurement? Yes, PTWC-H001X is our new product with 100 hertz,approx 905nm wavelength, really a small size (12*9*8.5 mm) suitable for industrial automation, spotting vehicles/automotive or forklift/AGV anti-collision. How about your project? If you are interested in the laser distance module for ranging robots & AGV collision avoidance targets at a disctance up to 10 m with an accuracy of ±10mm, kindly contact us.
It will be useful if you reply us. Some Parts descriptions are as follows.
Model No.: PTWC-H001X-1(b251106n25T-1) for example

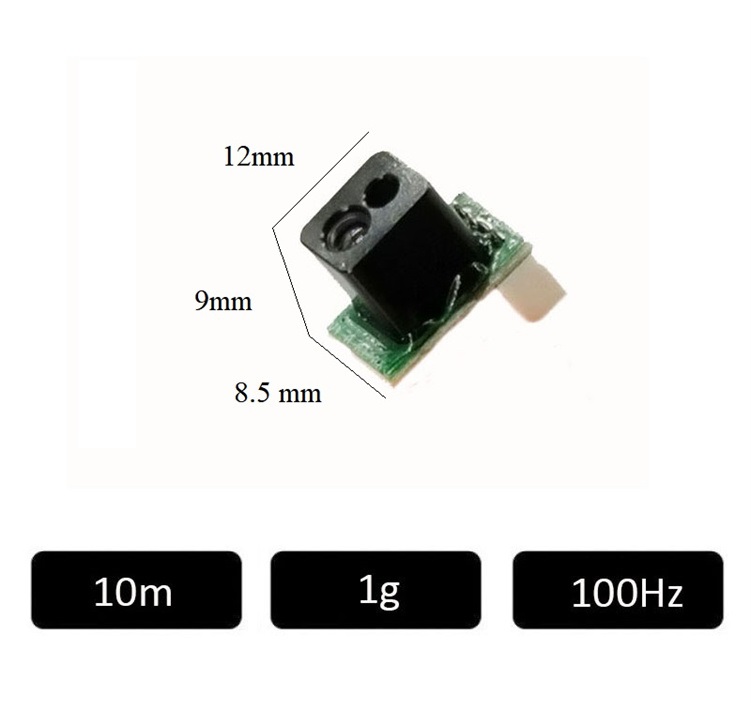

Size: 12*9*8.5mm
Distance: 0.03-10m
Applications: industrial robots, drones, AGV obstacle avoidance etc.
Key parameters:
1. Reliable, accurate
Measuring distance: 10 meters
Interface: ttl, serial port
Repeatability accuracy: ±10mm
2.Small, high-frequency
Size: 12*9*8.5 mm
Measuring range with high speed, max up to 100 Hz
Detailed Specifications and Parameters
1 Range 0.03-6m(10% Reflectivity),0.03-10m(90% Reflectivity)
2 Range frequency 100Hz
3 Range accuracy 1%
4 Repeatability precision ±10mm
5 Environmental light resistance 100K Lux
6 Measure the laser wavelength 905nm
7 Measure laser levels Class1
8 Measure the laser field Angle N/A
9 Indicate the laser wavelength N/A
10 Indicate laser level N/A
11 Input voltage DC 3.3±9%V
12 Peak point current N/A
13 Average current N/A
14 Average power consumption ＜0.4W
15 Communication mode TTL
16 levels of protection N/A
17 Size (length x width x height) 12 x 9 x 8.5 mm
18 Weight 1g
19 Working temperature -30℃~+65℃
20 Cable specifications 4pin 1.25mm terminal, 10cm tin coated loose wire
21 Customization scope Supports customization of external structure, input voltage and output protocol
More Detailed Pictures:

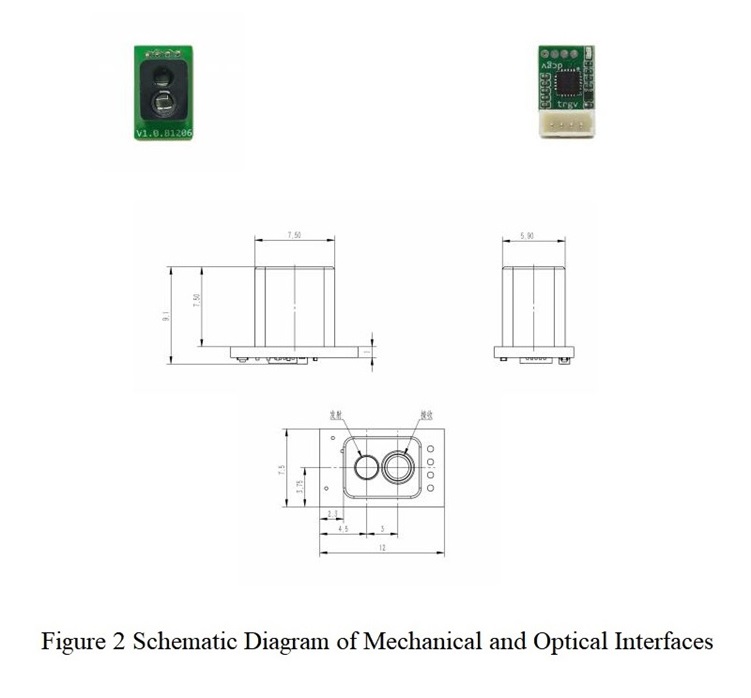

ToF LiDAR Sensor Mechanical Dimensions

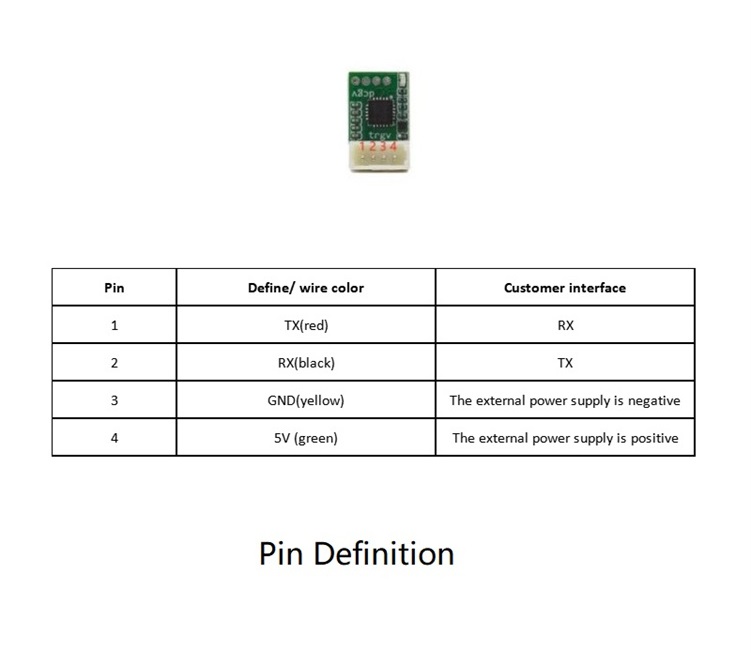

Pin Definition
Feedbacks:
Customer to JRT.
The modules system is working very well.
I would appreciate if you could send me the official invoice.
