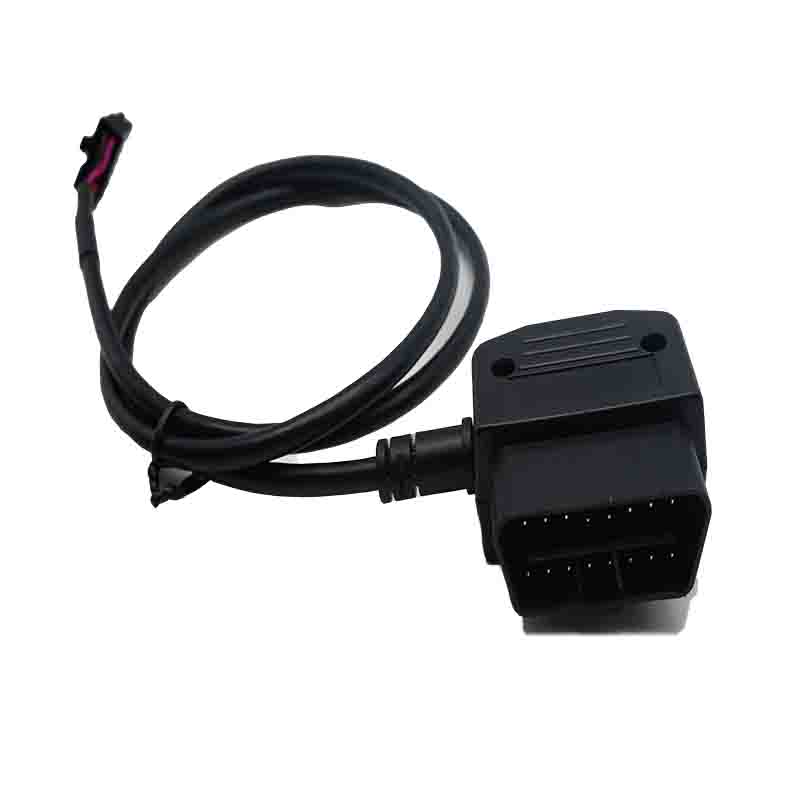

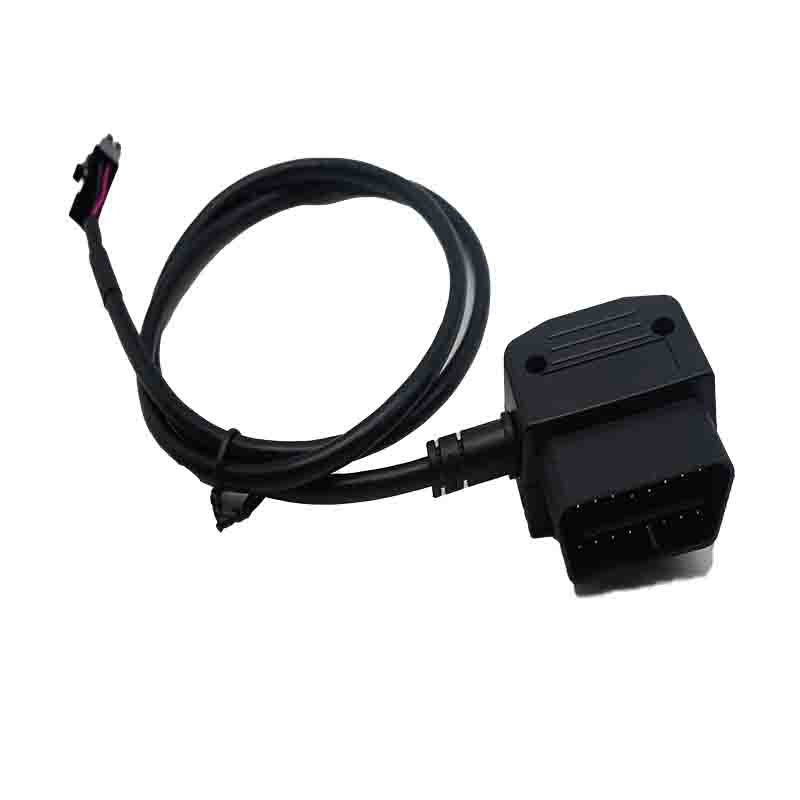

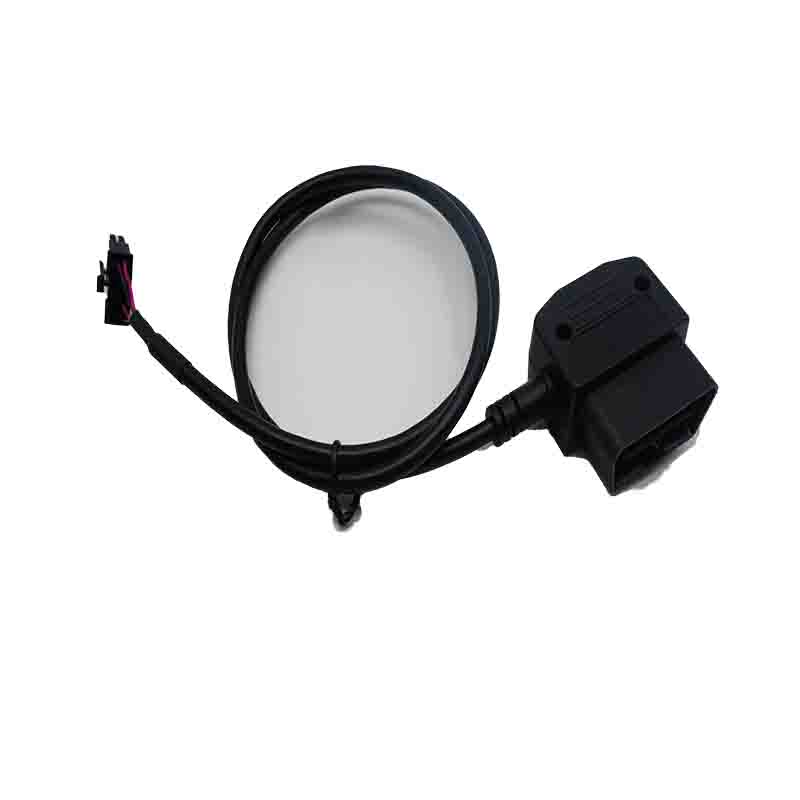

In the intricate landscape of automotive diagnostics, the right connector can mean the difference between seamless data transmission and frustrating inefficiencies. The OBD II-16P Male Elbow Connector for MX3.0 2x6P stands out as a specialized solution, engineered to bridge the universal OBD II interface with the MX3.0 2x6P protocol—critical for advanced vehicle systems and diagnostic tools. Its unique elbow design and tailored pin configuration make it an essential component for technicians working with modern automotive electronics, where space constraints and protocol specificity are common challenges.

At its core, this connector addresses two key demands: compatibility with the MX3.0 2x6P standard and adaptability to tight installation environments. The OBD II-16P male end adheres to the universal OBD II specification, ensuring it pairs seamlessly with standard OBD II ports found in most passenger vehicles and light trucks. On the opposing end, the MX3.0 2x6P interface—characterized by its dual rows of 6 pins—aligns with specialized diagnostic tools, ECUs, and aftermarket modules that rely on the MX3.0 protocol, often used in advanced driver assistance systems (ADAS), infotainment setups, and performance tuning equipment. This dual compatibility eliminates the need for multiple adapters, streamlining the diagnostic process.

The elbow (90-degree) design is a standout feature, addressing a common pain point in automotive workshops: limited space around OBD ports. Many vehicles position their OBD II ports in tight corners, under dashboards, or near other components, making straight connectors cumbersome to install or prone to accidental disconnection. The 90-degree angle allows the connector to lie flat against the vehicle’s interior, reducing strain on the cable and minimizing the risk of damage from foot traffic, tool handling, or component movement. This design also simplifies cable management, keeping diagnostic setups organized and reducing clutter during extended testing sessions.

Durability and signal integrity are prioritized in its construction. The housing is crafted from high-impact, heat-resistant nylon, capable of withstanding the rigors of garage environments—including exposure to oils, solvents, and temperature fluctuations from -40°C to 85°C. The pins are precision-machined from brass and gold-plated to ensure optimal conductivity and resistance to corrosion, a critical feature for maintaining consistent data flow in both occasional and frequent use scenarios. Unlike generic connectors that may suffer from intermittent signal loss, this elbow connector ensures stable communication between OBD II ports and MX3.0 2x6P devices, critical for accurate readings of fault codes, sensor data, and system parameters.

Item	Description
Product Name	OBD II-16P elbow connector for automotive testing
Type	12V Automotive OBDII Diagnostic Test Wiring Harness
Voltage	12V DC, Customized Available
Pins Material	Nickel-Plated Brass OBD2 Standard Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade OBDII 16Pin Elbow Connector Housing, PH2.0 Plastic Terminal Housing, Black Flexible PVC Cable Jacket with Reinforced Strain Relief
Working Temperature	-40℃~+85℃ Or Customized
Length	500±20mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Application Fields	Automotive OBD fault diagnosis test, on-board ECU programming & debugging, auto repair shop diagnostic equipment internal wiring, automotive electronic R&D bench testing, vehicle modification signal acquisition, DIY automotive electronic test projects, custom OBDII elbow test wiring harness
Specific Shipping Cost	Please Contact Us

For technicians, mechanics, and automotive enthusiasts, the practical benefits are clear. The plug-and-play functionality eliminates the need for complex wiring or configuration, allowing users to connect diagnostic tools quickly and focus on analysis rather than setup. Its compatibility with MX3.0 2x6P systems opens up access to specialized data that standard OBD II tools might not retrieve, making it invaluable for servicing modern vehicles with advanced electronics. Additionally, the elbow design’s space-saving properties reduce wear and tear on both the connector and the vehicle’s OBD port, extending the lifespan of both components.

In summary, the OBD II-16P Male Elbow Connector for MX3.0 2x6P is a testament to thoughtful engineering, merging universal compatibility with specialized functionality. Its 90-degree design solves spatial challenges, while its robust construction ensures reliability in demanding environments. For anyone working with MX3.0 2x6P-equipped tools and modern vehicles, this connector is not just an accessory but a precision tool that enhances efficiency, accuracy, and durability in every diagnostic task.
