500Hz ToF Laser Range Tiny Distance Sensor 22m
Hello,
Are you looking for a ToF laser range sensor to install in a compact housing with following characteristics?
Data Output Rate: 500 Hz high frequency
Wavelength: 905 nm (near IR)
Interface: UART TTL

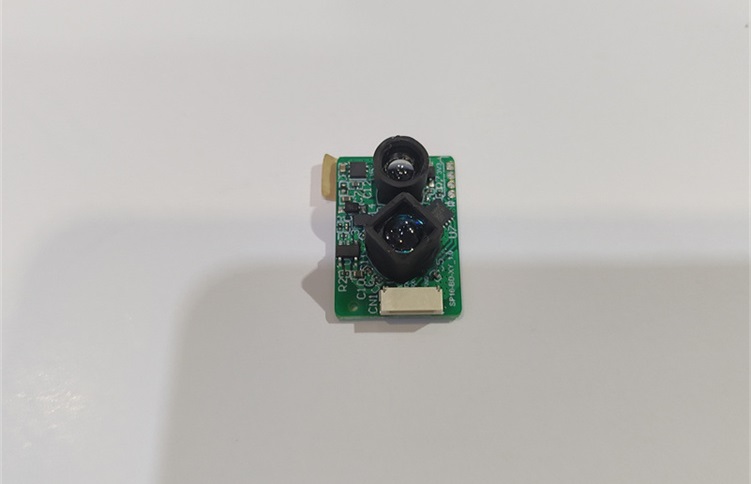

Yes, the PTWC-H002X is JRT new generation ToF tiny distance sensor(21*15*7.43mm, only 2g), which is easy to integrate. Max range can be up to 22m.
If you are interested in ordering 2 of these tiny ToF units for implementation into your devices, or know more other types of Long Range Lidar, welcome to contact us.
It will be helpful if you reply us. Some specifications parts are as follows.
■ Model No.: PTWC-H002X-1(b251110n25T-2) for example

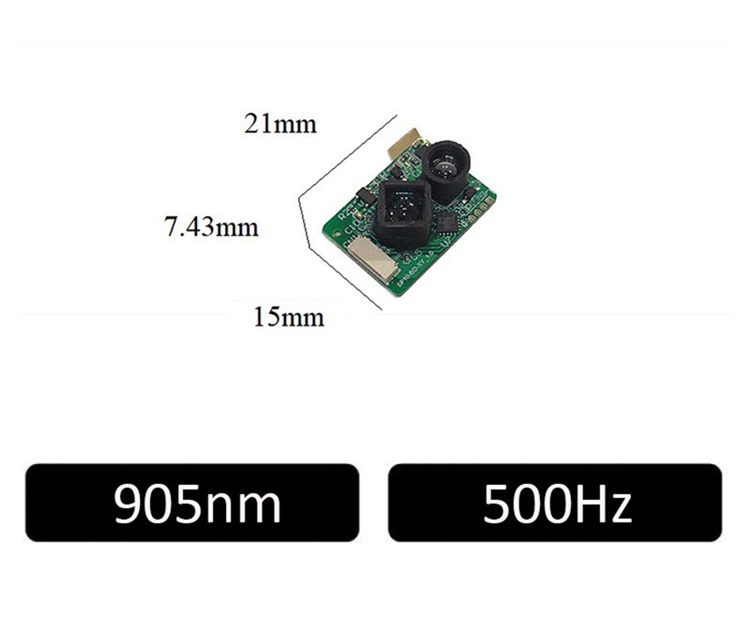

■ Size: 21*15*7.43mm
■ Distance: 0.03-22m

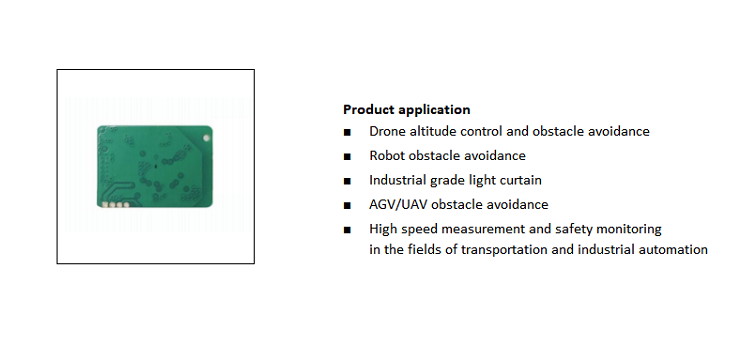

■ Applications: Drone altitude, AGV, Robot obstacle avoidance etc.
Key parameters:
1. Fast, accurate etc. high performance
-Based on Direct Time of Flight algorithm
-Measurement distance: 22 meters
-Measurement blind zone: 3 centimeters
-Measurement accuracy: 1%
-Resolution: 1mm
-Operating temperature: -30~+65℃
-Power supply voltage: 3.3V DC
-Ambient light resistance: 100K Lux
2.Compact, long range

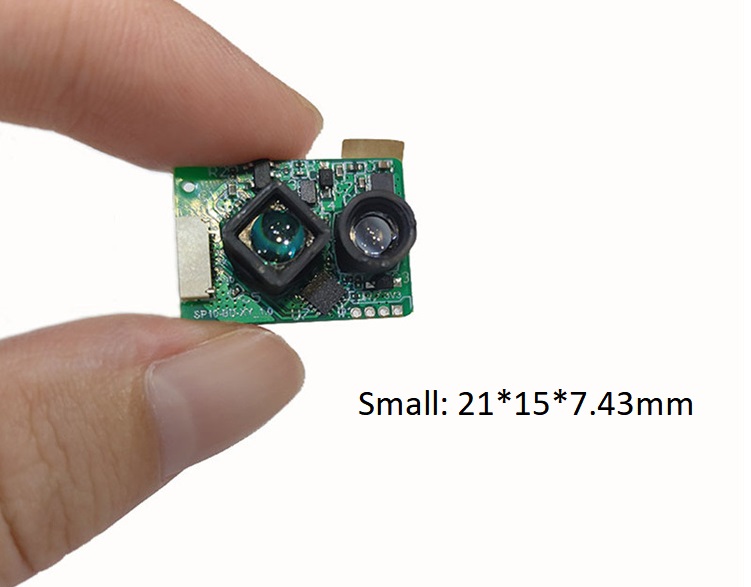

-Compact size: 21 x 15 x 7.43 mm
-Weight: 2 grams
-Measurement speed: 500 Hertz
Detailed parameters of the LiDAR product
1 Ranging: 0.03-22m (90% reflectivity)
2 Range hole: 3cm
2 Range frequency: 500Hz
3 Ranging accuracy: ±3cm(0.2~6m), 1%(≥6m)
4 Repeatability precision: ±10mm
Resolution ratio: 1mm
5 Environmental light resistance: 100K Lux
6 Laser wave length: 905nm
7 Laser level: Class1
8 Angle of field: 3.4°
9 Indicate the laser wavelength: N/A
10 Indicate laser level: N/A
11 Input voltage: 3.3V
12 Peak point current: 100mA
13 Average current: 75mA
14 Average power consumption: 0.4W
15 Communication mode: UART TTL
16 Levels of protection: N/A
17 Size (length x width x height): 21x15x7.43mm
18 Weight: 2g
19 Working temperature: -30℃~+65℃
20 Cable specifications: 6pin 0.8mm end, 10cm tin coated loose wire
21 Customization scope: Supports customization of external structure, input voltage and output protocol

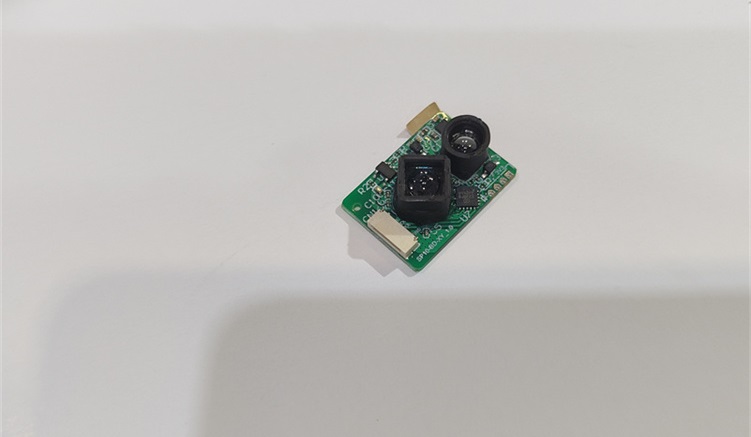

More Detailed Pictures:

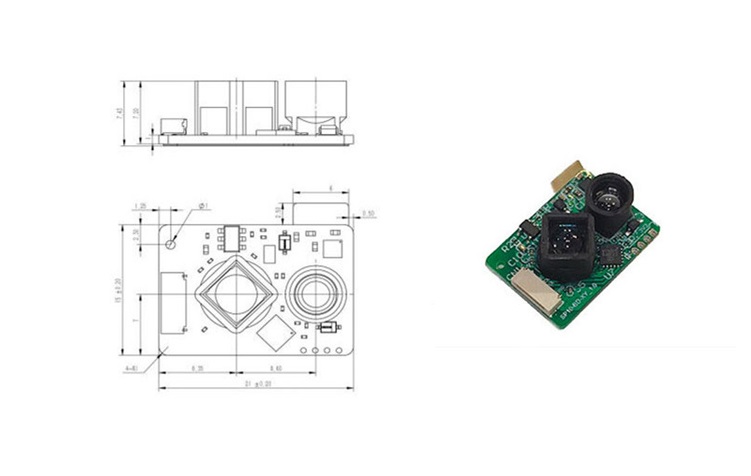

Mechanical Dimensions
Feedbacks:
Customer to JRT.

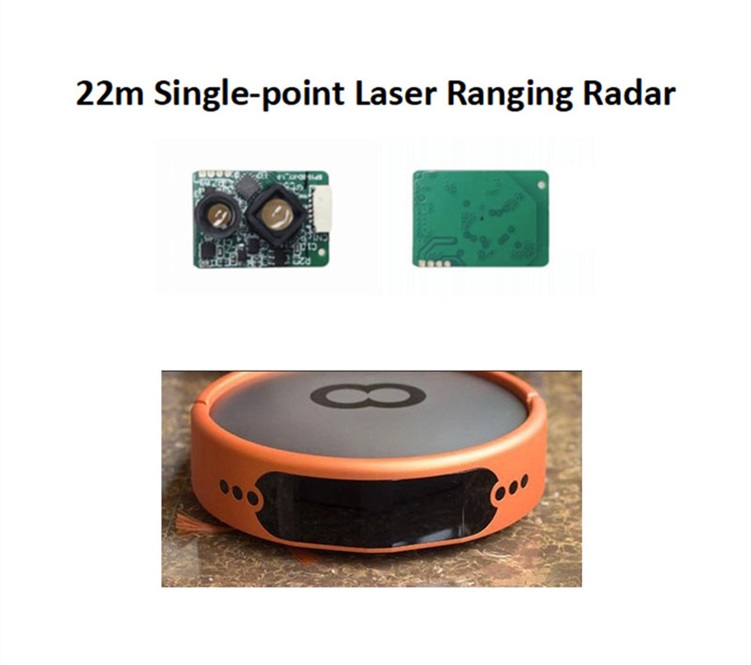

Thank you for getting back to me. Your single-point laser ranging radar seems like a good fit. I would like to explore further.
I would appreciate if you could send me the official invoice.
