Bidirectional thrust ball bearings: reliable carriers of bidirectional axial loads
In mechanical equipment that requires precise control of bidirectional axial displacement, bidirectional thrust ball bearings have become the core component to solve the problem of bidirectional axial load due to their unique design, and are widely used in scenarios that require high axial positioning accuracy.

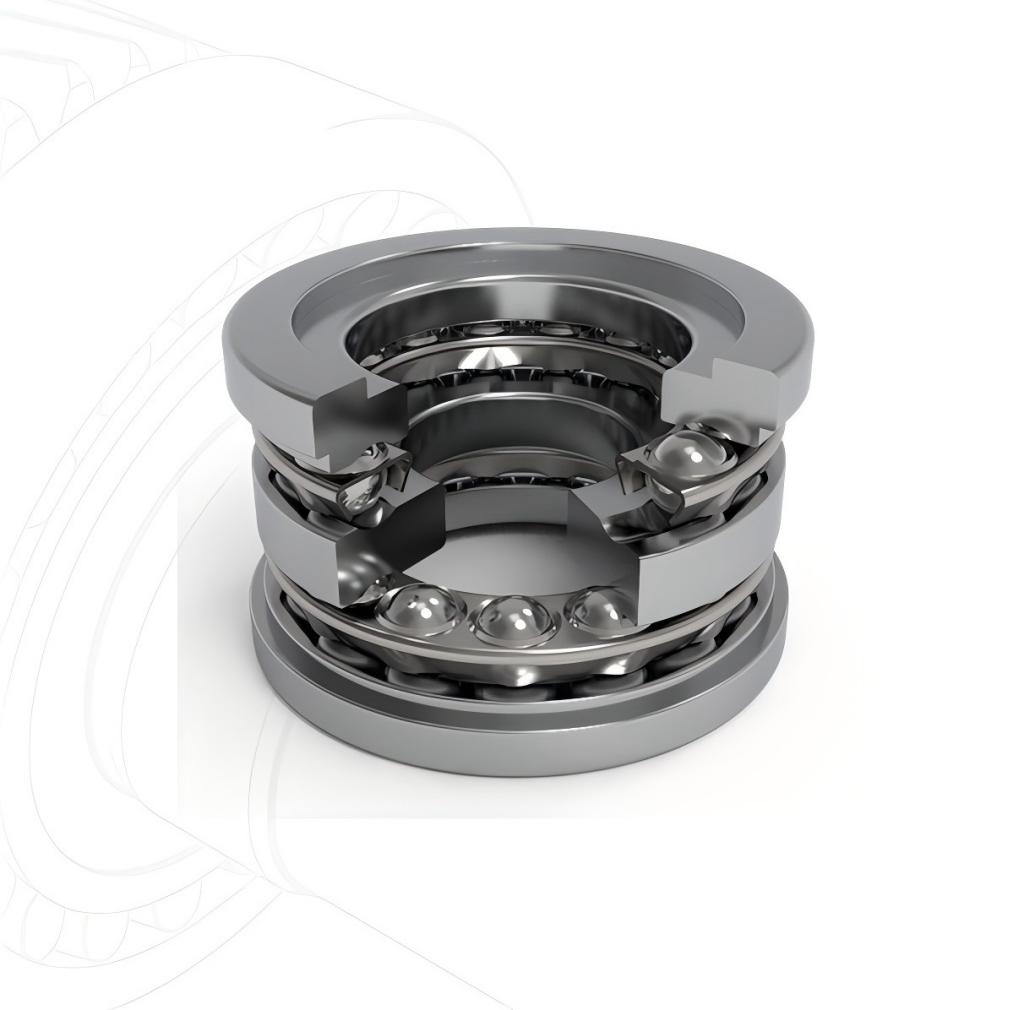

From a structural point of view, two-way thrust ball bearings consist of **one shaft ring**, **two seat rings** and **two sets of steel ball-cage assemblies**. The shaft ring is tightly matched with the shaft and rotates with the shaft. The two seat rings are located on both sides of the shaft ring and are fixed to the bearing seat. Two sets of steel ball-cage assemblies are symmetrically distributed between the shaft ring and the seat rings on both sides, forming an independent two-way load-bearing channel. This structure determines that it can withstand axial loads in both directions at the same time, but cannot withstand radial loads. It is necessary to ensure that there is no additional radial force during operation to avoid bearing damage.
In terms of performance, bidirectional thrust ball bearings have outstanding advantages. First, it has stable bidirectional load-carrying capacity and can accurately limit the bidirectional axial movement of the shaft. For example, in machine tool spindles and precision gearboxes, it can ensure the axial positioning accuracy of the shaft system during forward and reverse rotation. Secondly, it has low operating friction, and the point contact design between the steel ball and the raceway is matched with high-quality cage guidance, which can reduce operating resistance, reduce heat generation, and is suitable for medium-low speed and high-precision working conditions. Third, **installation and maintenance are convenient**. The shaft ring, seat ring and components can be separated. There is no need to disassemble the entire shaft system during disassembly, and it is more efficient to replace worn parts.Centripetal Bearings,High-Quality Bearings,Industrial Bearings,Explore our premium centripetal and radial ball bearings. Boost your machinery's efficiency today! Shop now for the best deals.
