Bidirectional thrust ball bearing with self-aligning seat ring: an all-rounder for bidirectional load-bearing and deviation compensation
In mechanical equipment that needs to cope with bidirectional axial loads and installation deviations at the same time, bidirectional thrust ball bearings with self-aligning races have become a core component that takes into account both load-bearing stability and working condition adaptability due to their innovative structure. They are widely used in scenarios with medium and low speeds, heavy loads and installation errors.
From a structural point of view, based on the traditional two-way thrust ball bearing (1 shaft ring, 2 seat rings, 2 sets of steel ball-cage components), at least one seat ring is designed as an aligning seat ring** - the bottom surface of the seat ring is spherical arc-shaped, which can accurately match the spherical concave surface in the bearing seat. This design gives the bearing an alignment angle of 1°-3° (the specific value depends on the model), which can effectively compensate for the installation misalignment between the shaft and the bearing seat, the deflection deformation of the shaft due to force, or the machining error of the bearing seat, avoiding early damage caused by local stress concentration, while retaining the core function of "withstanding bidirectional axial loads".
In terms of performance, this bearing has outstanding advantages. First, it takes into account both bidirectional bearing and alignment**, which not only stably limits the bidirectional axial movement of the shaft, but also solves the problem of deviation. For example, in a vertical motor, it can simultaneously carry the up and down bidirectional thrust of the rotor and adapt to the slight bending of the motor shaft. Secondly, **high operating reliability**, the self-aligning seat ring reduces the abnormal contact between the raceway and the steel ball, and is guided by a high-quality cage to reduce friction and heat and extend the service life. Third, it has strong installation compatibility and can adapt to working conditions with slight deviations without large-scale modifications to the equipment.Centripetal Bearings,High-Quality Bearings,Industrial Bearings,Explore our premium centripetal and radial ball bearings. Boost your machinery's efficiency today! Shop now for the best deals.

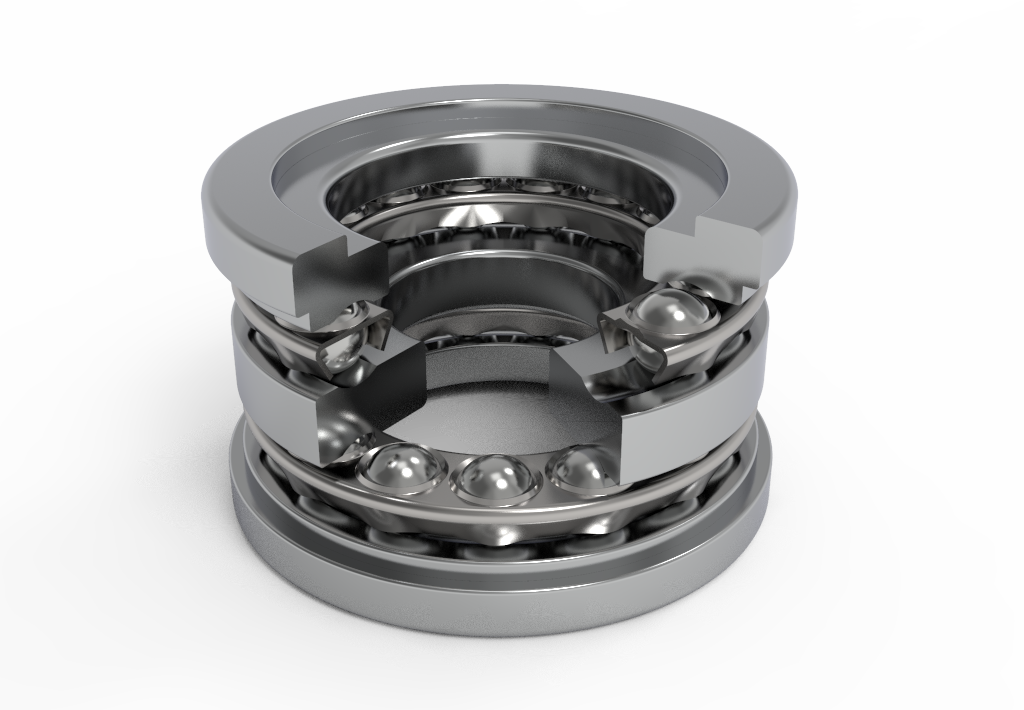

Self Aligning Seat Ring Double Direction Thrust Ball Bearing1
