2.54 (24P) female connector to M12 (8P+12P) male connector

9 month ago

29 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

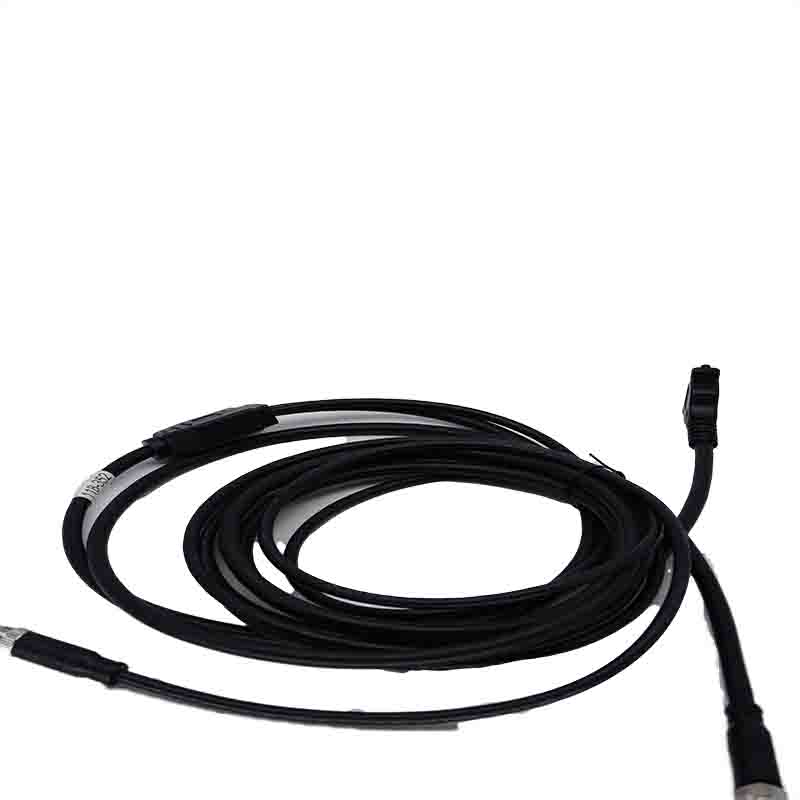

In the intricate ecosystem of electronic and industrial connectivity, cables that seamlessly link standard board-level interfaces to rugged industrial connectors are vital for operational efficiency. The specialized cable featuring a 2.54mm 24P female connector on one end and a dual-port M12 male connector (integrating 8P and 12P configurations) on the other stands as a pivotal solution, designed to bridge the gap between precision electronics and harsh industrial environments. This hybrid connectivity solution combines the versatility of a standard pin header interface with the robustness of M12 technology, making it indispensable across automation, instrumentation, and consumer electronics sectors.

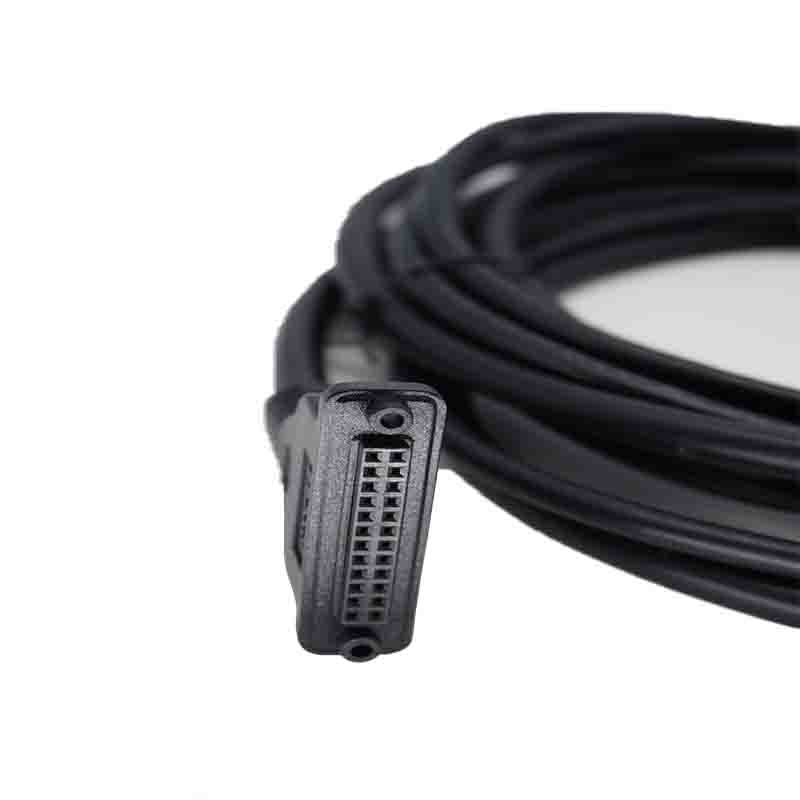

The 2.54mm 24P female connector serves as the cable’s gateway to precision electronic systems, a widely adopted standard in printed circuit boards (PCBs), development kits, and small-scale electronic devices. Its 24-pin layout offers abundant channels for parallel data transmission, power delivery, and control signals, catering to complex devices that require multi-functional connectivity. The 2.54mm pitch ensures compatibility with off-the-shelf PCB headers, simplifying integration into existing designs without the need for custom adapters—an advantage that reduces development time and production costs for manufacturers.

Item	Description
Product Name	D sub cable female to 8p 12p male
Type	Industrial & Automotive Multi-Pin Signal Wiring Harness
Voltage	12V / 24V DC, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Industrial Grade Connector Housing
Working Temperature	-40℃~+105℃ Or Customized
Length	Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Withstand Voltage Test	DC 300V 10MS
Application Fields	Industrial control system signal transmission, automotive ECU and sensor connection, test and measurement equipment interface conversion, automation equipment wiring, communication device signal conversion, diagnostic tool extension harness, custom multi-pin signal distribution projects
Specific Shipping Cost	Please Contact Us

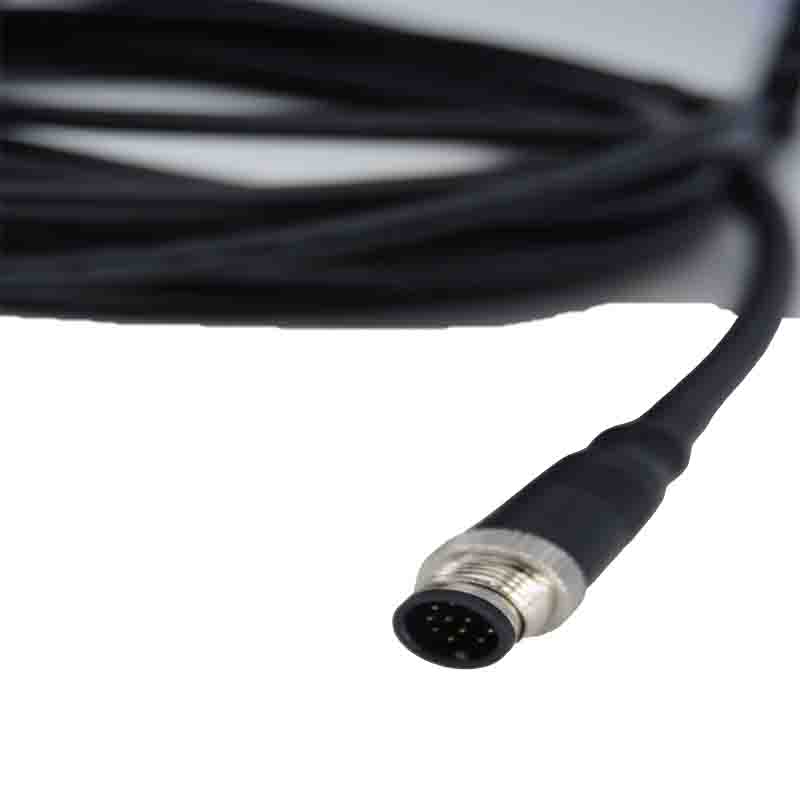

On the industrial end, the dual-port M12 male connector redefines rugged reliability. The M12 interface is universally recognized for its IP-rated sealing (typically IP67 or higher), resistance to vibration, and immunity to electromagnetic interference (EMI)—critical attributes for factory automation, robotics, and outdoor sensing applications. The split 8P and 12P configuration within a single M12 housing is a standout feature: the 8P port excels at high-speed data protocols like Ethernet/IP, while the 12P port handles power distribution and auxiliary control signals. This separation of data and power pathways minimizes crosstalk, ensuring stable signal integrity even in high-noise industrial settings.

2 54 24p female to m12 8p 12p male connector

Beyond its interface advantages, the cable’s construction enhances its practicality. Engineered with flexible yet durable conductors and abrasion-resistant outer sheathing, it withstands repeated bending during installation and operation. The shielded core further reinforces signal stability by blocking external EMI, a common challenge in manufacturing floors populated with heavy machinery. Whether connecting a PCB-based controller to a robotic arm’s sensors or linking a data logger to industrial Ethernet networks, the cable’s 24P-to-dual-M12 design eliminates the need for multiple intermediate adapters, reducing wiring complexity and potential failure points.

This integrated cable embodies the synergy between standardization and specialization. By pairing the ubiquitous 2.54mm 24P interface with the industrial-grade M12 connector, it empowers engineers to create seamless connectivity chains from prototype to production. Its ability to handle both data and power, resist harsh conditions, and simplify integration makes it a cost-effective and reliable choice for industries where precision and durability cannot be compromised.
