Product details

Overview

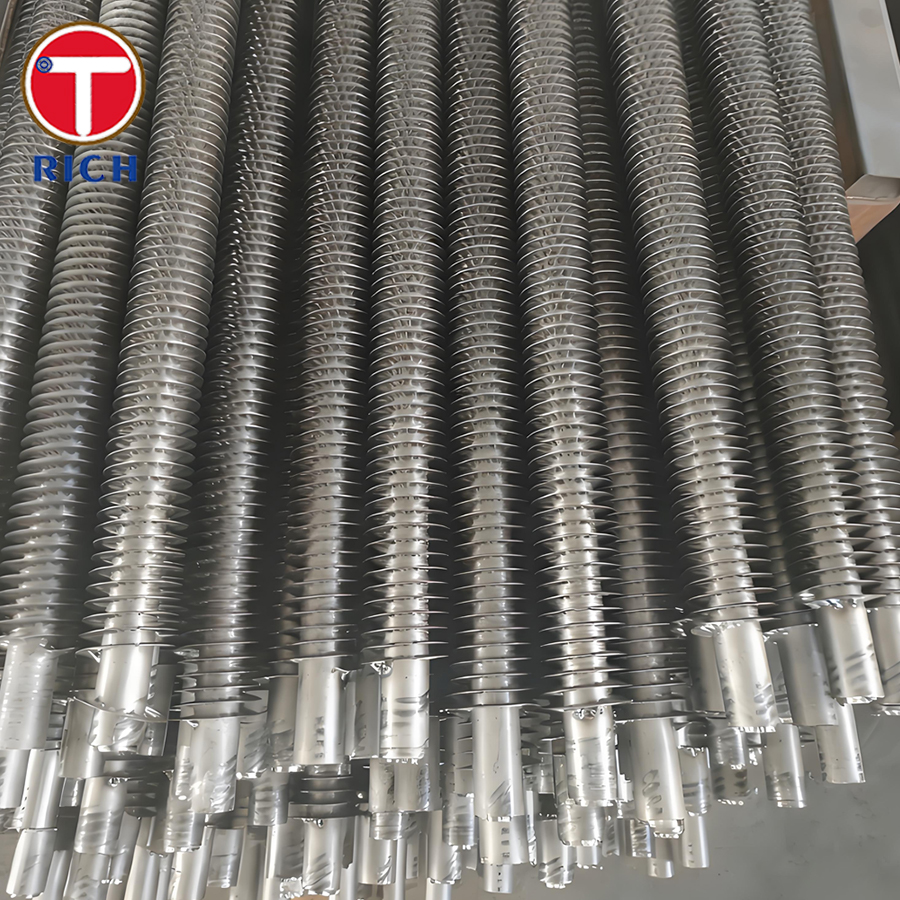

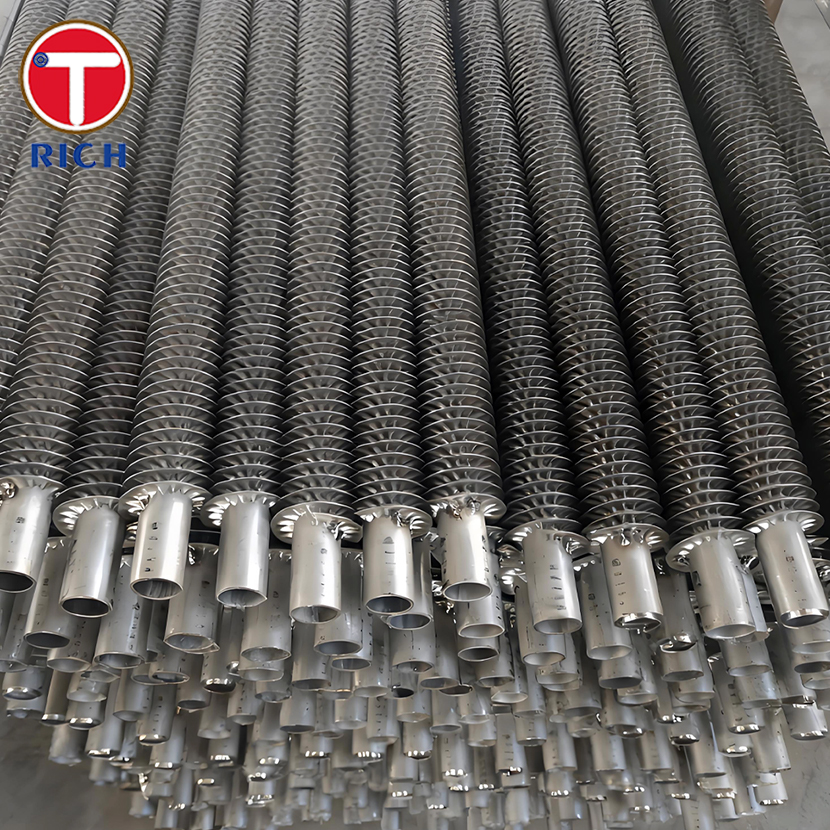

Our SA192 cold-rolled finned tubes use SA192 high-pressure carbon steel seamless boiler tubes as the base tube, with fins wound onto the tube body using a cold mechanical tension winding process. Both the base tube and fins are made of carbon steel, and aluminum fins are also available. They possess excellent strength and thermal stability, are specifically designed for high-temperature and high-pressure environments, and are suitable for industries such as power generation, petrochemicals, oil refineries, and industrial boilers.

Specification

Standard	ASTM A192
Grades	SA192
Form	L-Foot
Manufacturing Process	Cold mechanical fin winding for strong bonding
Tube Outer Diameter	12.7 mm – 63.5 mm (Customizable)
Tube Wall Thickness	1.0–4.0 mm (Customizable)
Fin Height	10–16 mm (Customizable)
Fin Thickness	0.3–0.5 mm (Customizable)
Fins per Inch	3–11 (Customizable)
Length	Up to 20 meters (Customizable)

Key Features

High Pressure and High Temperature Resistance: The SA192 base tube is designed specifically for high-pressure boiler environments, making it ideal for demanding APH and economizer conditions.
High Fin Bond Strength: Our L-Foot Finned Tube utilizes a cold mechanical winding process to ensure a tight contact between the fins and the base tube, guaranteeing stable thermal conductivity.
Excellent Mechanical Strength: Our tubes undergo tensile testing, hardness testing, and flattening testing, exhibiting high tensile and yield strength, making them suitable for demanding systems.
Vibration and Corrosion Resistance: Cold-wound fins interlock tightly with the tube—similar to a nail driven securely into wood—creating a near-monolithic bond. This strong mechanical fusion provides superior resistance to vibration and corrosion compared to traditional L-type fin tubes, making it ideal for boilers and high-duty heat exchangers.

Chemical Composition

Element	C	Mn	P	S	Si
Content (%)	0.06–0.18	0.27–0.63	≤0.035	≤0.035	≥0.10

Mechanical Properties

Property	Tensile Strength	Yield Strength	Elongation	Hardness
Requirement	≥ 325 MPa	≥ 180 MPa	≥ 35%	≤ 79 HRB

Application

Power generation industry: Boiler air preheaters, waste heat recovery devices
Petrochemical industry: Gas-to-gas heat exchangers, furnace and heater waste gas recovery
Industrial boilers: Steam generators, waste heat recovery steam generators

Possible Alternative Grades

ASTM A179: Optimal thermal conductivity, thin-walled low-carbon steel, suitable for medium- and low-temperature heat exchangers.
ASTM A210 Grade A1: Higher strength and higher temperature resistance, suitable for power plant air preheaters and refinery heaters.
SA213 T11/T22: Alloy steel with excellent high-temperature resistance and oxidation resistance, suitable for superheater sections, systems > 500°C.

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
