Core Positioning

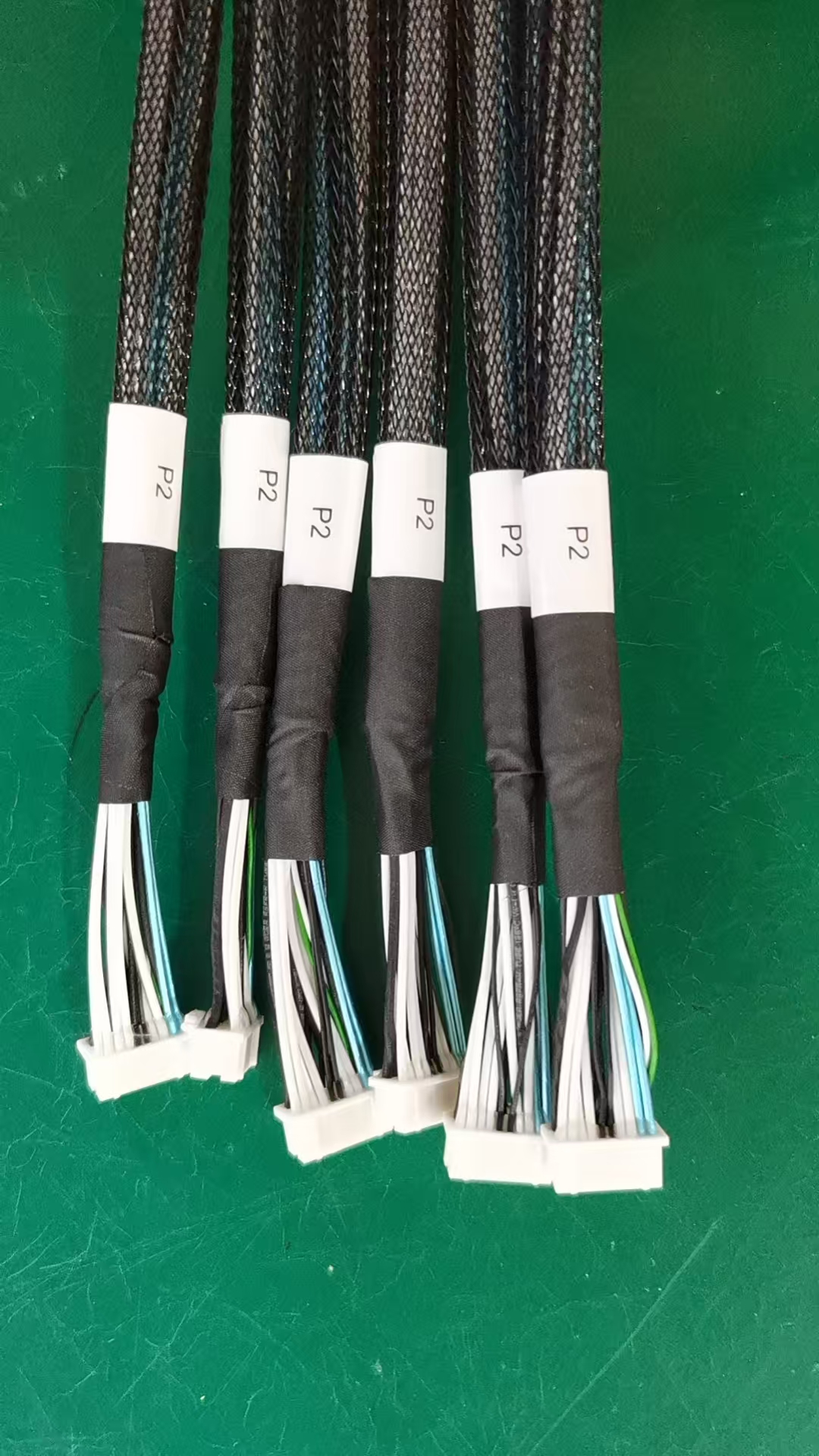

A high-performance wiring harness designed specifically for internal server power and data transmission. It utilizes high-conductivity materials and precision engineering to ensure stable connectivity between the PSU, motherboard, and hardware. Solves common issues such as overheating, poor contact, and signal interference. Suitable for servers, data storage equipment, and high-availability computing systems.
Core Functions
Stable Power & Signal Transmission: Oxygen-free copper conductors minimize resistance, ensuring efficient power delivery and signal integrity.
Safety & Reliability: Flame-retardant insulation and keyed connectors prevent short circuits, electric leakage, and misconnection.
Environmental Durability: Resistant to high/low temperatures and EMI, ensuring long-term performance in demanding environments.
|
Specification |
Standard Value |
Industry Application Notes |
|
Wire Gauge (AWG) |
16AWG/18AWG/20AWG |
16AWG for high-current servers; 20AWG for space-saving setups |
|
Rated Voltage/Current |
600V AC /10A |
Industrial servers require 10A full load; medical IT needs overload protection |
|
Temperature Range |
-40℃ to 105℃ |
-40℃ for outdoor cabinets; 105℃ for high-temperature server rooms |
|
Insulation Material |
PVC/XLPE |
XLPE for eco-sensitive environments; PVC for cost-effective solutions |
|
Shielding Type |
None / Foil / Foil + Braid |
Dual shielding for precision instruments; unshielded for general use |
|
Connector Material |
Gold-plated brass (30µ") |
Gold plating for frequent plugging (test servers) to prevent oxidation |
|
Cable Diameter |
5.2mm–8.8mm |
≤6mm for compact server chassis (e.g., blade servers) |
3. Product Features & Advantages
(1) Core Features
a、Oxygen-Free Copper Conductors
Low resistance (≤0.01Ω/m), 12% higher conductivity than standard copper
Reduces heat buildup under continuous load
b、Dual Flame-Retardant Insulation
UL94 V-0 rated; self-extinguishing within 30 seconds
Safer for enclosed server environments
c、Keyed Connector Design
Prevents reverse insertion, reducing installation errors and board shorts
Cuts post-sale failures by 30%
(2) Unique Advantages
d、In-House Connector Production
Precision ±0.02mm ensures smooth plugging
e、Fast Customization
Samples in 3 days (competitors: 7 days), MOQ 50pcs
f、Rigorous Aging Tests
48 hours at 105℃ (competitors: 24 hours), extends lifespan by 50%
UL, CE, RoHS certified — compliant with international export standards.
Available upon request — color coding, length, shielding, connector types.
6. FAQ
Q: Are your server wiring harnesses compatible with major motherboard brands?
A: Yes — compatible with ATX, Micro-ATX, Mini-ITX standards. Supports ASUS, Supermicro, Dell, and others.
Q: What is the lead time for custom harnesses?
A: Standard specs ship in 3 days. Custom samples in 3 days, mass production in 7–10 days, delivery within 15 days (MOQ 50pcs).
