Product details

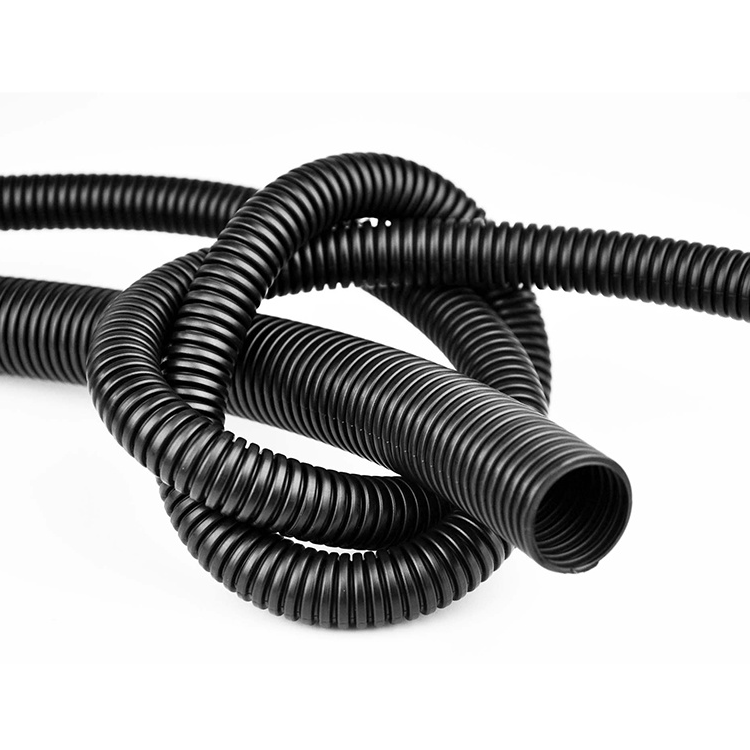

Black Corrugated Plastic Tube

Product Description:

Black Corrugated Plastic Tube is precision extruded from environmentally friendly modified polypropylene (PP); as a high performance Corrugated Pipe, it releases no harmful volatile substances, fully complies with environmental standards, and simultaneously integrates the structural advantages and practical characteristics of Corrugated Tubing. This product features certified flame retardant performance, is not easy to burn in open flame environments with excellent fire resistance, ensuring safer electrical applications; the corrugated structure design endows it with high mechanical strength, strong impact resistance, as well as outstanding flexibility, small bending radius, torsion resistance, no easy damage after repeated bending, and also possesses the flexible adaptation advantages of Corrugated Flexible Hose. The PP material itself is wear resistant and aging resistant, with an outer wall that can effectively resist scratches, and excellent chemical stability, capable of withstanding long term erosion by acids, alkalis, inorganic salts and industrial lubricants without corrosion or cracking, which can not only provide durable and reliable insulation protection for lines but also be suitable for small and medium sized water and gas supply scenarios, with trustworthy protection effects.

Product Applications:

Black Corrugated Plastic Tube is widely used in the automotive and rail transit fields, applicable for wrapping engine compartment and chassis wire harnesses, with excellent oil resistance and vibration resistance, while adapting to the on board line protection needs of high speed rail and subway, featuring anti interference and aging resistance; in industrial machinery scenarios, it is suitable for internal threading of machine tools and automation equipment, can perfectly adapt to frequent bending working conditions and ensure stable signals, and can also be used for protecting sensors and actuator cables; in the marine and communication fields, it can realize line protection in ship cabins, withstand seawater salt spray erosion, and can also be used for underground or overhead communication line protection, effectively isolating soil corrosion and external impact; in power and electronic scenarios, it can be used as a casing for power engineering lines, and also adapts to internal wiring of routers and power distribution cabinets, with both good insulation and auxiliary heat dissipation effects; in addition, it is suitable for fluid transmission scenarios, can meet the use needs of low pressure water supply for small equipment and compressed air transmission for pneumatic devices, covering the protection and transmission demands of multiple fields.

Technical Performance:

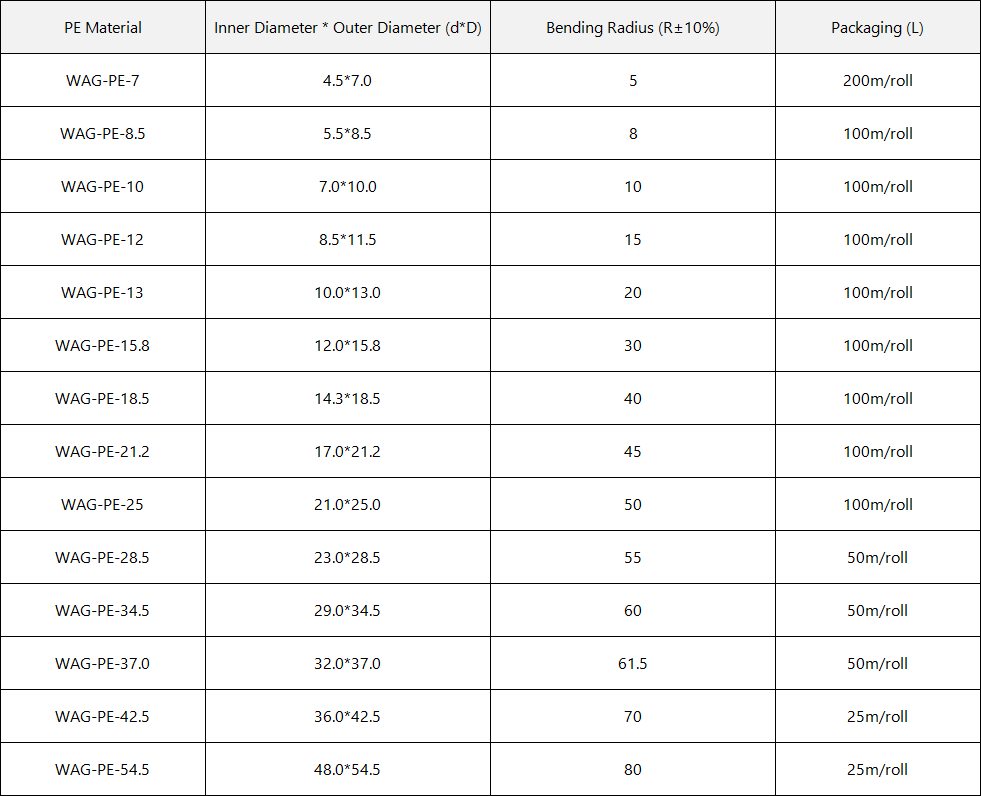

Product Specifications:

Note: Both wave pitch A and wave width a are reference values.

Colors: Black, Orange (Standard), Red, Blue, Yellow, Gray, etc. Other colors are customizable, and slit processing is available upon request.

Environmental protection standard: Complies with EU RoHS2.0

Product Attributes:

Temperature Resistance Grade	A
Operating Temperature	-40℃ – 105℃
Heat Distortion Temperature	120±3
Heat Distortion Test Time	24h
Heat Aging Temperature	105±3
Heat Aging Test Time	3000h
Heat Ageing Temperature	125±3
Heat Aging Test Time	240h

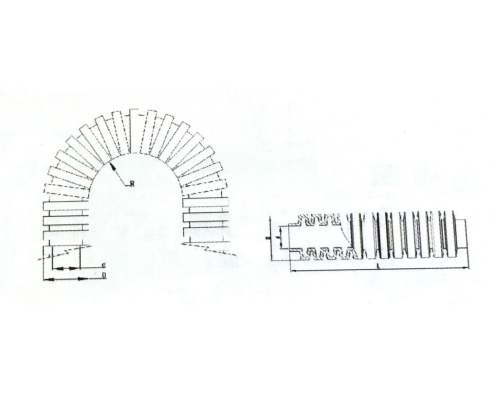

Structural Analysis Diagram:
