OBD male 24V to Molex 20P Y wire

9 month ago

26 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

Y-wires linking OBD male (24V) and OBD female (Kia) connectors to Molex 20P and BMW 10P interfaces are critical adapters in automotive diagnostics and customization. These specialized cables bridge distinct connector standards, enabling seamless data transmission and power delivery between OBD systems and vehicle-specific components—essential for mechanics, automotive enthusiasts, and fleet managers alike.

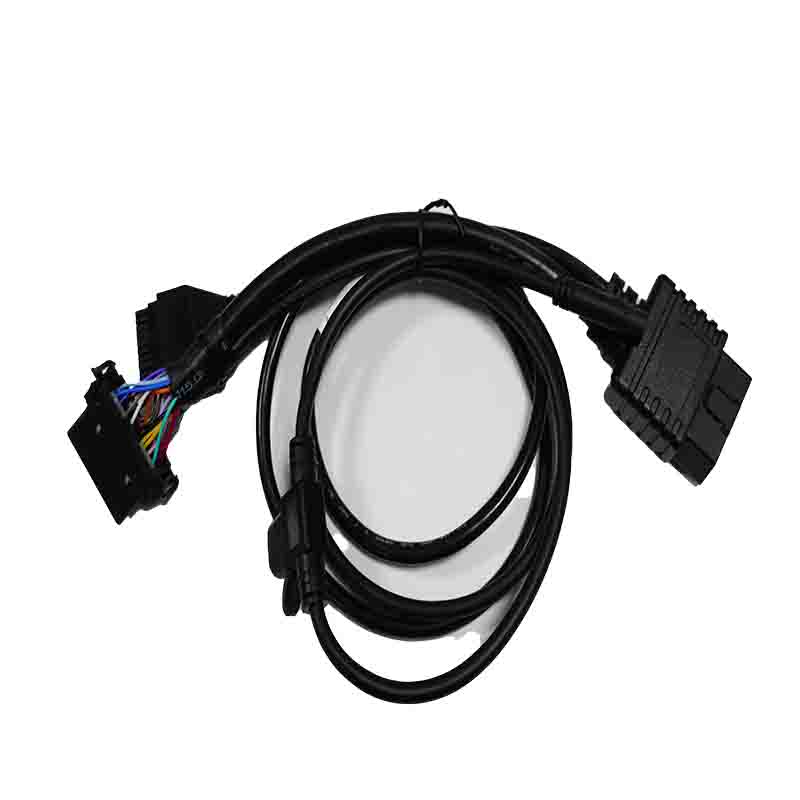

The OBD male connector, rated for 24V, caters to heavy-duty or commercial vehicles where higher voltage systems are standard. Its robust pin configuration ensures stable power supply, preventing voltage drops during diagnostic scans. In contrast, the OBD female connector is tailored for Kia models, matching the brand’s proprietary OBD port layout to ensure a secure fit and reliable communication with the vehicle’s ECU (Engine Control Unit).

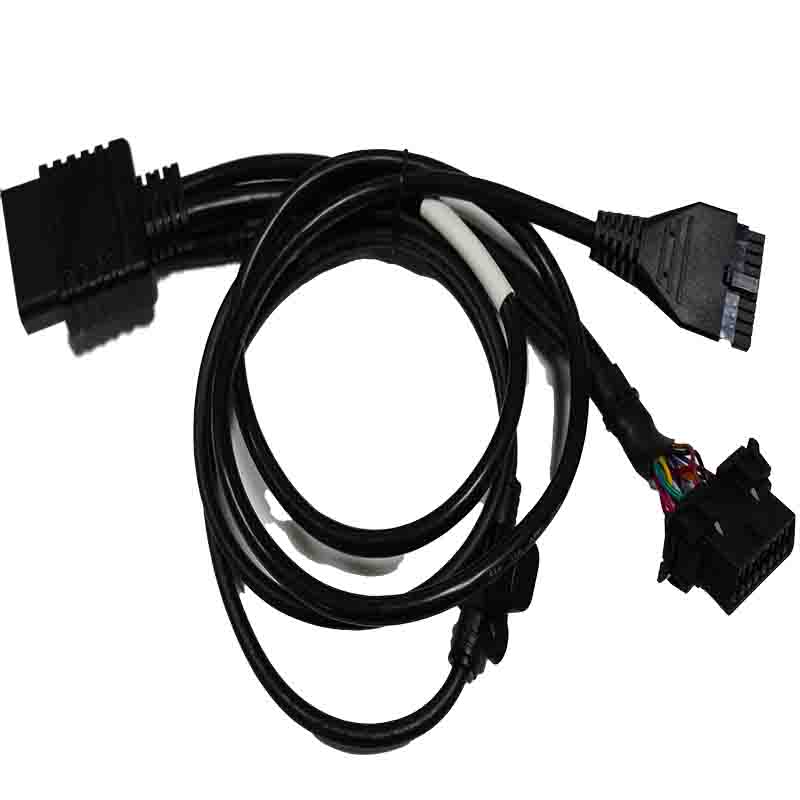

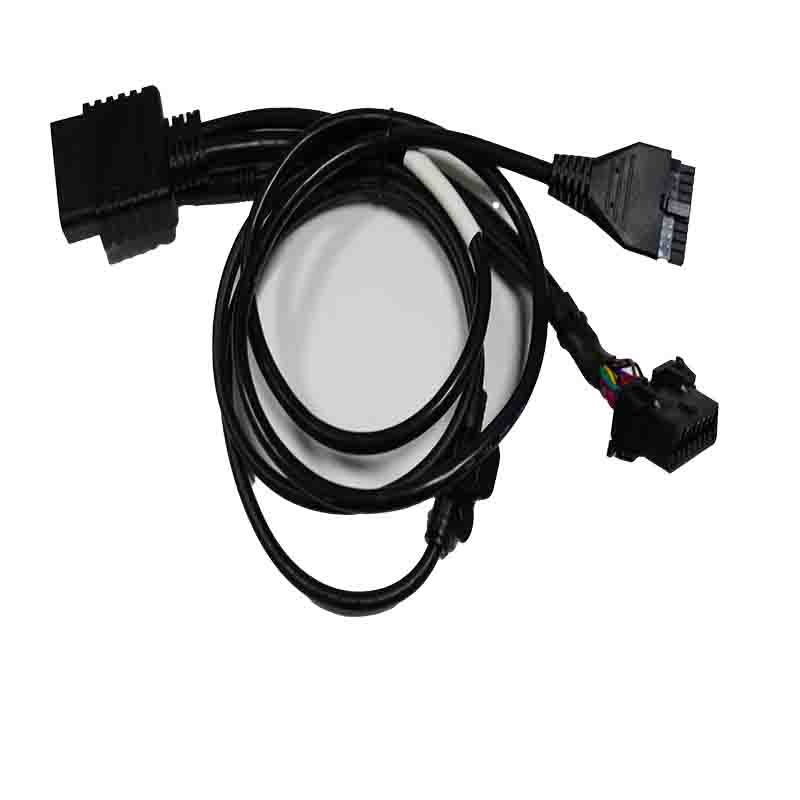

The Y-wire design splits the OBD signal and power into two branches: one terminating in a Molex 20P connector, the other in a BMW 10P connector. Molex 20P is widely used in aftermarket electronic modules—such as GPS trackers or infotainment upgrades—offering a compact, pin-dense solution for data transfer. The BMW 10P connector, meanwhile, aligns with BMW’s specific wiring protocols, making it ideal for integrating OBD data with the brand’s onboard systems, like iDrive or advanced driver-assist features.

Item	Description
Product Name	OBD male 24V to Molex 20P Y wire
Type	Automotive 24V Power & Signal Distribution Wiring Harness
Voltage	12V / 24V DC, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade Connector Housing
Working Temperature	-40℃~+105℃ Or Customized
Length	Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Withstand Voltage Test	DC 300V 10MS
Application Fields	Cummins engine fault diagnosis and code reading, heavy-duty truck ECU communication, diesel vehicle maintenance and calibration, fleet truck diagnostic tool connection, engine performance testing and tuning, workshop and repair center diagnostic equipment matching, custom Y-split signal distribution
Specific Shipping Cost	Please Contact Us

Key considerations for using these Y-wires include voltage compatibility and pinout alignment. The 24V OBD male connector must only be used with vehicles supporting 24V systems; connecting it to 12V Kia models (via the female connector) requires a voltage regulator to avoid ECU damage. Pinout mismatches between OBD, Molex, or BMW interfaces can disrupt data flow, so verifying connector pin diagrams—especially for Kia and BMW’s model-specific variations—is mandatory.

In practice, these Y-wires streamline complex tasks. A mechanic might use them to run simultaneous diagnostics: accessing OBD data via the Kia port while connecting a Molex-compatible scanner to monitor auxiliary systems. For BMW owners, the cables allow integrating aftermarket OBD devices (e.g., performance trackers) without modifying the vehicle’s original wiring. Durability is another asset—quality versions feature insulated wiring and corrosion-resistant connectors, suited for under-hood or dashboard installations.

In summary, these Y-wires solve a common automotive connectivity challenge, merging OBD versatility with Molex and BMW’s specialized standards. By prioritizing compatibility and proper installation, users can leverage their full potential—enhancing diagnostics, enabling customizations, and ensuring reliable performance across different vehicle systems.
