Window hardware · selection and application

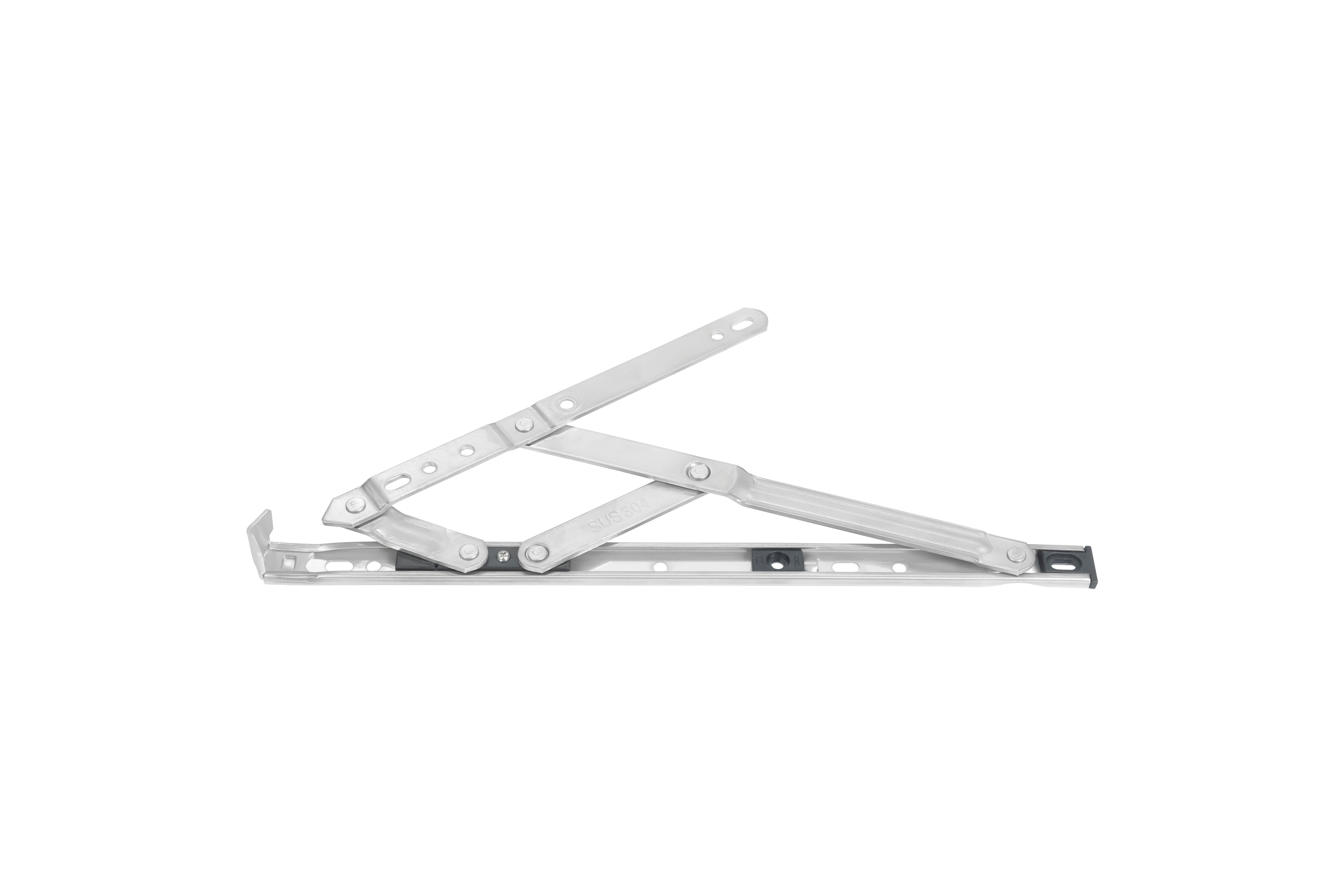

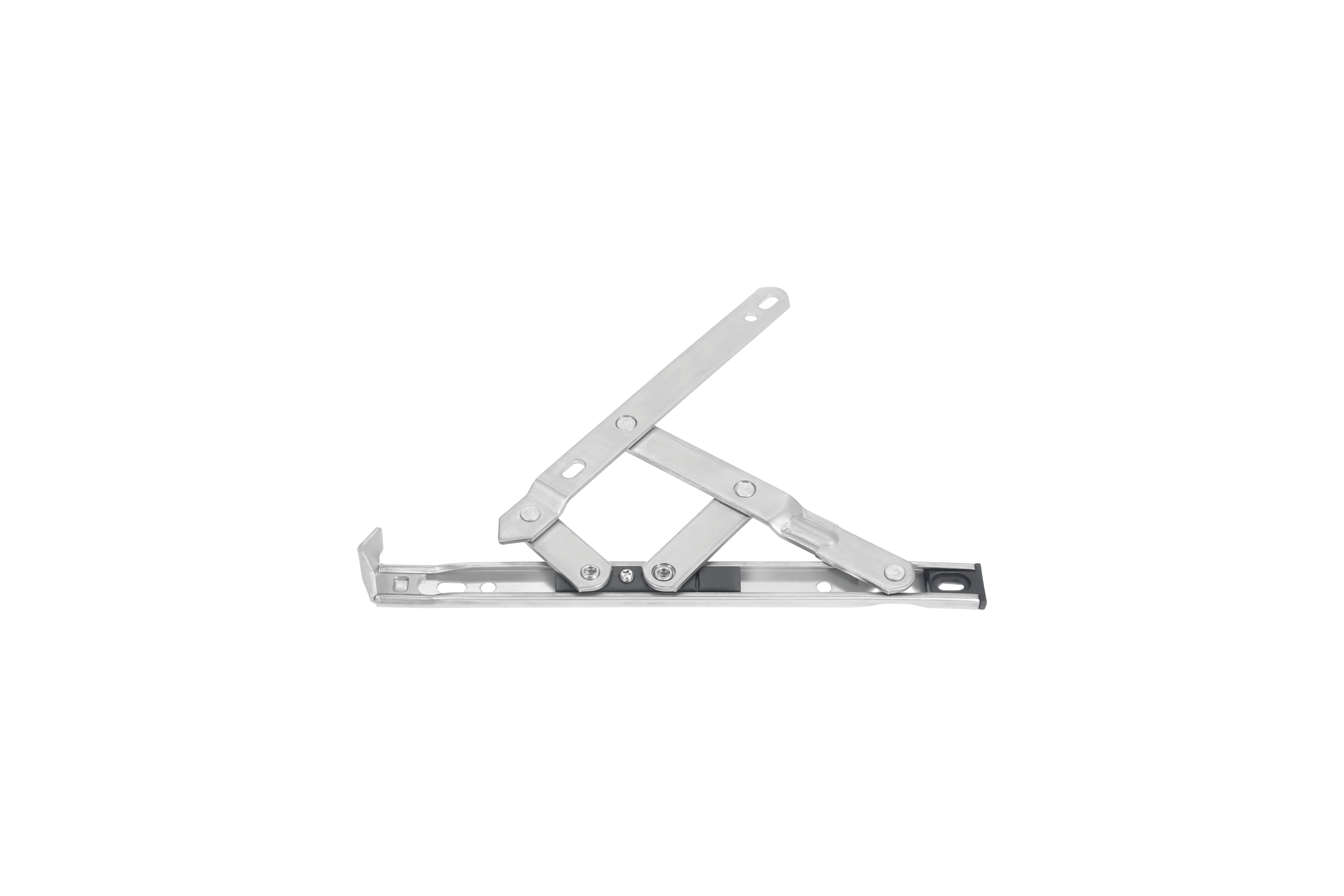

The product view shows an extended sash arm connected to a tracked four-bar linkage. Multiple fixing points are visible along the members, making hole layout and arm orientation central to product identification.
Application and fit
When planning an adjustable four-bar stay, include access to the adjustment area in the window layout. The profile must accommodate the folded mechanism while still allowing the relevant setting to be reached during assembly or service.
Define whether the window is top-hung or side-hung before selecting this stay. Compare the travel of the sliding shoe, the arm overlap when folded and the fixing pattern against the actual frame and sash profiles.
Confirm window type and handing before selecting the part.
A window assembler may have enough room for a stay but limited access after covers or seals are fitted. Include those surrounding parts in the review of the adjustable four-bar form. Identify the setting that the assembly process needs to reach and show the proposed access direction before agreeing the track position.
Include the nearest profile wall, cover and sash edge, together with the intended access direction. Mark the feature being adjusted on the actual component so the enquiry refers to a specific setting rather than an unspecified adjustable stay.
