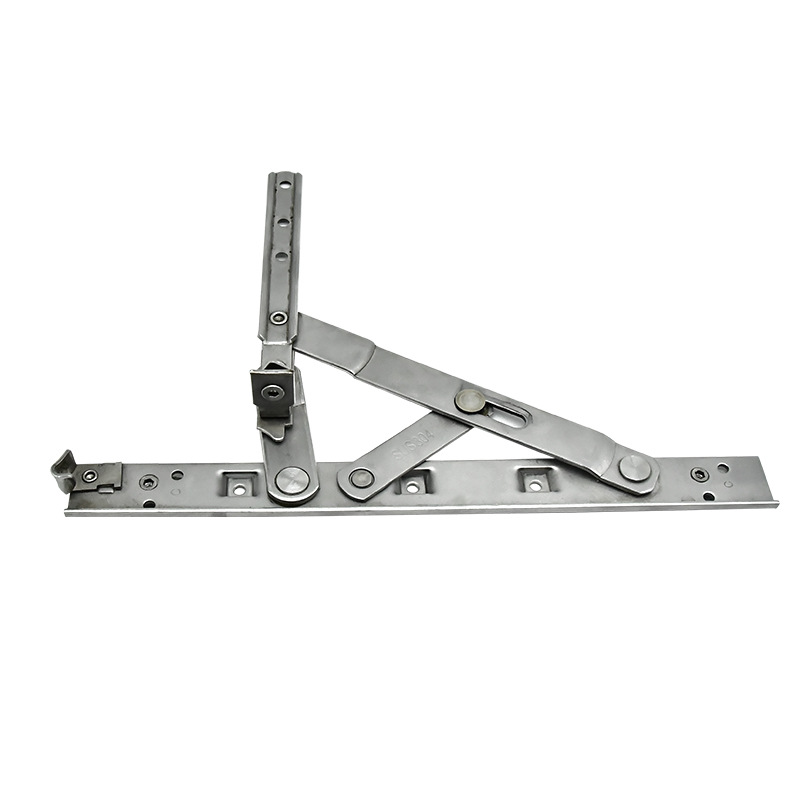

### **Product Title: Robust 4-Linkage Sliding Hinge Bar for Heavy-Duty Window Systems**
**Product Overview**
Engineered for superior performance in demanding architectural applications, the XINLIDA Hinge Slide Bar (Model 21) combines precision engineering with industrial-strength materials. This advanced sliding mechanism features a multi-linkage support structure crafted from corrosion-resistant stainless steel, ensuring reliable operation under heavy loads and extreme weather conditions.
**Core Advantages**
* **Advanced Load-Balancing Mechanism**
The precisely engineered 4/5-bar linkage system creates an optimal force distribution network, effectively transferring weight across multiple support points. This intelligent design prevents deformation under pressure while maintaining alignment integrity during repeated operation cycles.
* **Precision-Guided Smooth Operation**
Incorporating a specially formulated polymer glide component, this system achieves near-frictionless movement. The self-lubricating interface ensures consistent performance across temperature variations while eliminating metal-on-metal contact that causes premature wear.
* **Engineered Environmental Resistance**
Utilizing marine-grade 304 stainless steel with proprietary surface treatment technology, this hardware maintains structural integrity in corrosive environments. The multi-layer protection system resists salt spray, chemical exposure, and UV degradation while preserving mechanical properties.
* **Industrial-Grade Durability**

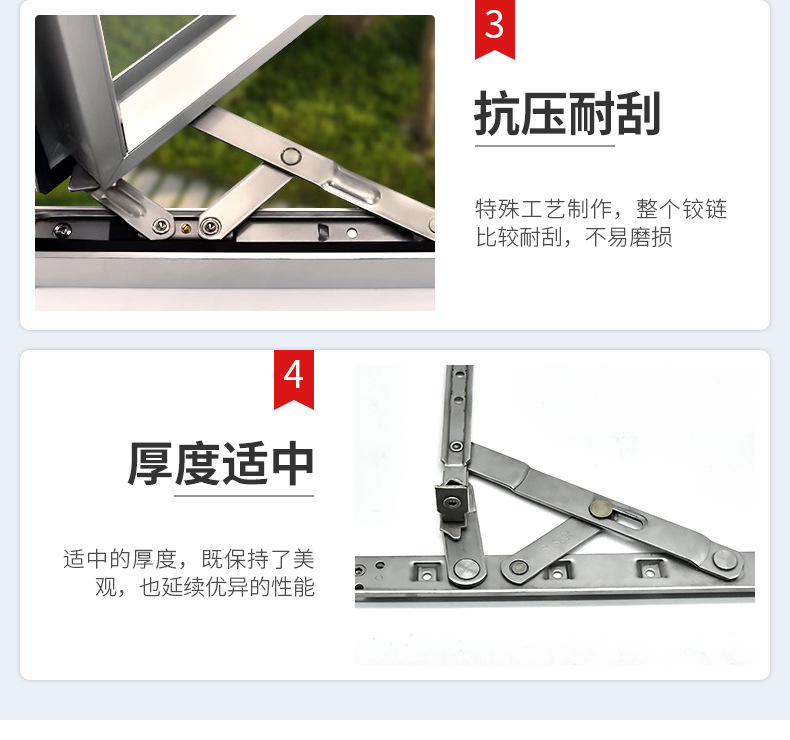

Manufactured using high-precision stamping technology with reinforced stress points, this hinge bar exceeds standard load requirements. The strategic material thickness variation (2.5mm/3.0mm) optimizes strength-to-weight ratio without compromising structural stability.

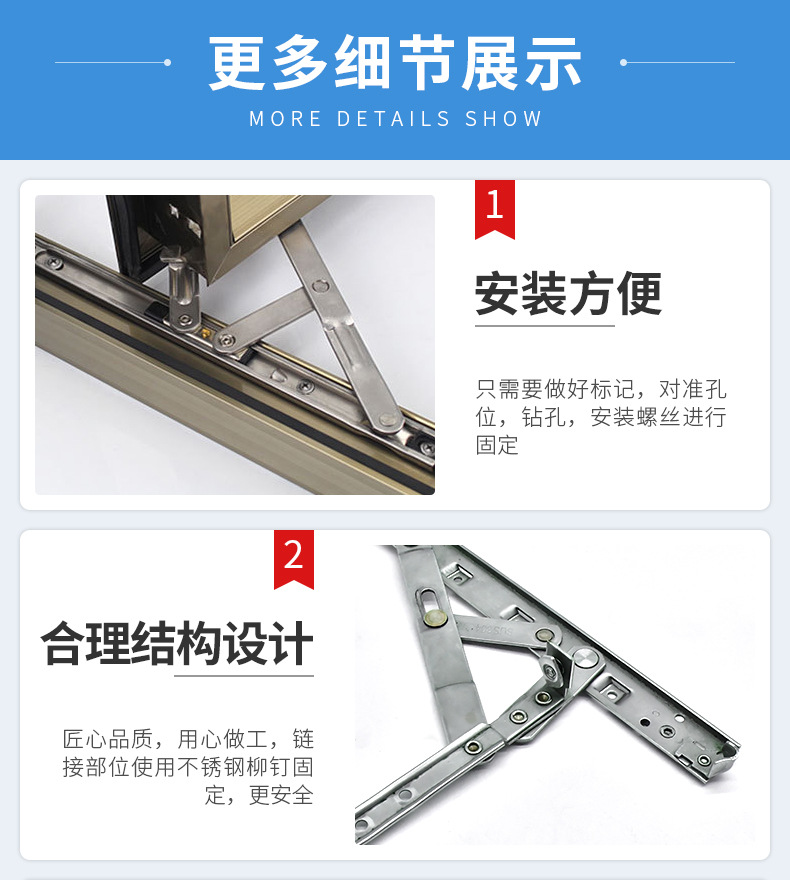

* **Modular Installation Design**
Featuring a universal mounting system with adjustable positioning capabilities, installation requires minimal specialized tools. The pre-engineered connection interfaces allow for rapid deployment while maintaining precise alignment through integrated calibration points.
**Specification Profile**
- **Product Identification**: Sliding Hinge Mechanism Series 21
- **Primary Materials**: Marine-Grade Stainless Steel (304/202 grades), Engineering Polymer Components
- **Structural Dimensions**: 2.5mm/3.0mm thickness profiles
- **Mechanical Configuration**: 4-point linkage (14" units), 5-point reinforcement (18"/20" units)
- **Size Variations**: 254mm, 305mm, 356mm, 457mm, 508mm lengths
- **Interface Specifications**: 13.5/18/22mm channel profiles
- **Compatibility Range**: Heavy casement systems, top-hung installations, specialized door applications
- **Surface Technology**: Industrial-grade brushed finish with protective layering
- **Customization Support**: Full OEM/ODM technical adaptation services
**Implementation Scenarios**
- Industrial/commercial fenestration systems requiring enhanced load management
- Oversized architectural glazing installations with extended service requirements
- Coastal/industrial zone applications demanding maximum corrosion protection
- Specialized retrofit projects requiring precision-engineered replacement components
**Quality Assurance Commitment**
As a certified manufacturer with vertically integrated production capabilities, we maintain complete control over material sourcing and manufacturing processes. Our dedicated engineering team provides comprehensive technical support from design consultation through installation validation, ensuring optimal system integration and performance realization.
**Technical Consultation Available**
Contact our engineering department for detailed CAD specifications, load analysis reports, and project-specific configuration recommendations. We provide customized solutions tailored to unique architectural requirements and performance parameters.
