Cummins 9P to OBD Y type cable 330mm

9 month ago

32 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

In the realm of heavy-duty diesel engines, Cummins stands as a benchmark for reliability, and maintaining its performance hinges on precise diagnostics. The Cummins 9P Y-Type Cable—featuring a 9P male connector, a 9P female connector, and an OBD female connector, with a total length of 330mm—emerges as a specialized solution to streamline connectivity challenges in Cummins engine maintenance and troubleshooting.

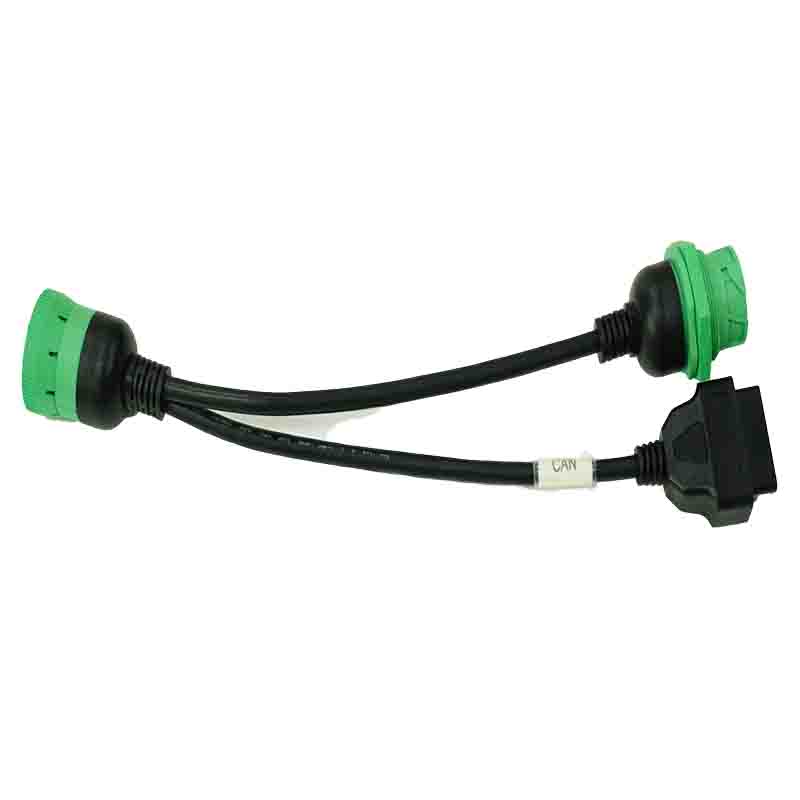

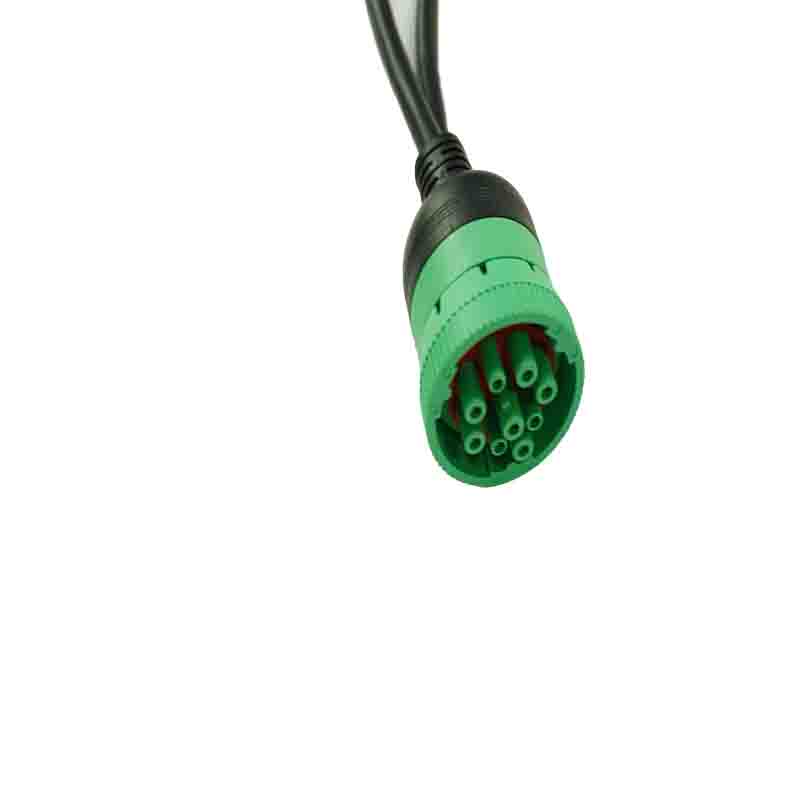

At first glance, the cable’s Y-shaped design reveals its functional ingenuity. The 9P male connector serves as the primary link, securely mating with the dedicated 9P port on Cummins engines to tap into the engine control module (ECM). This connection is engineered to align with Cummins’ proprietary communication protocols, ensuring uncompromised access to critical engine data. The branching 9P female connector extends this capability by allowing daisy-chaining of additional Cummins-compatible tools, such as fuel system analyzers or sensor testers, without disrupting the main diagnostic link.

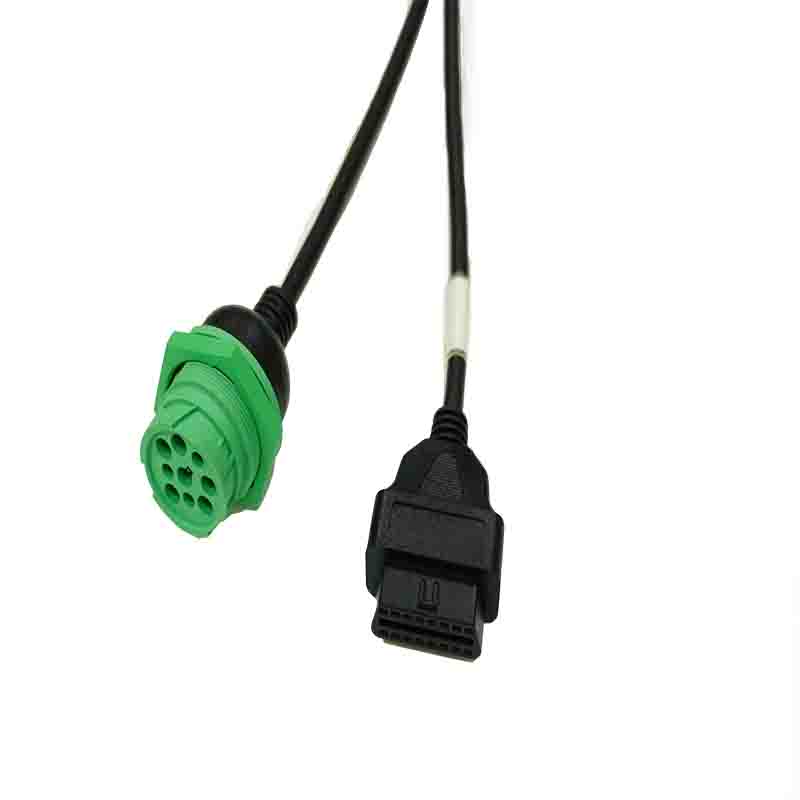

The integrated OBD female connector is the cable’s versatility cornerstone. It bridges the gap between Cummins’ specialized 9P interface and universal OBD diagnostic tools, a game-changer for technicians who work with multiple equipment types. Instead of switching between dedicated Cummins cables and standard OBD leads, the Y-type design enables simultaneous use: technicians can run comprehensive ECM diagnostics via Cummins tools while cross-referencing data with mainstream OBD scanners for a holistic view of engine health.

Item	Description
Product Name	Cummins 9P to OBD Y type cable 330mm
Type	Cummins Engine Specialized Commercial Vehicle Diagnostic Wiring Harness
Voltage	12V / 24V DC, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive & Commercial Vehicle Grade Connector Housing
Working Temperature	-40℃~+85℃ Or Customized
Length	330±20mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Application Fields	Cummins engine fault code scanning and diagnosis, heavy-duty truck & bus ECU programming and calibration, commercial vehicle on-board diagnostic system connection, auto repair shop Cummins-specific diagnostic equipment matching, fleet heavy vehicle batch detection wiring, engineering vehicle brake & engine system debugging, DIY commercial vehicle electronic test projects, custom Cummins diagnostic conversion wiring harness
Specific Shipping Cost	Please Contact Us

Measuring 330mm, the cable strikes an optimal balance between maneuverability and stability. Its compact length prevents tangling in crowded engine bays—common in trucks, generators, or construction equipment—while providing enough reach to connect tools placed on nearby workbenches. Constructed with industrial-grade materials, the cable features shielded conductors to resist electromagnetic interference from engine components, ensuring stable data transmission even in high-vibration environments. The connectors are reinforced with durable housing, preventing pin damage from frequent plugging and unplugging.

For fleet managers and service centers, this cable translates to tangible efficiency gains. It reduces tool inventory by replacing multiple single-function cables, cuts diagnostic time by enabling parallel testing, and minimizes human error from repeated connection changes. Whether diagnosing emission issues, optimizing fuel efficiency, or troubleshooting electrical faults, the cable ensures technicians have instant, reliable access to the data they need. In essence, the Cummins 9P Y-Type Cable is more than a connectivity accessory—it’s a precision tool that empowers professionals to maintain Cummins engines at peak performance with greater speed and confidence.
