Product details

introduce

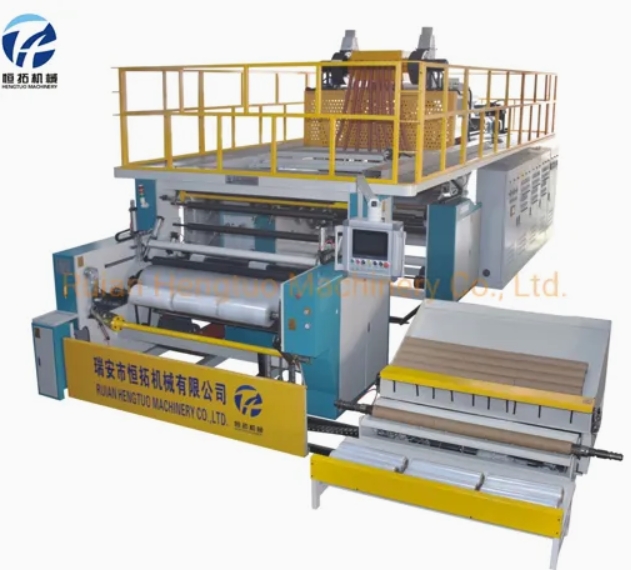

The HT-1000 double layer stretch film machine is a high-performance extrusion system designed for producing high-quality LLDPE and LDPE stretch films. This machine features a double-screw extruder with a 55mm、70mm screw diameter and a 32:1 length-to-diameter ratio, ensuring excellent plasticization and high output.It is equipped with a bi-directional loop design and helical cooling rollers to maintain stable film thickness and quality. The HT-1000 also includes an automatic cutting and roll-changing system, enhancing production efficiency and reducing downtime.With a maximum output of 100kg/h this machine is ideal for various packaging applications, providing cost-effective and reliable film production.

Main Technical Parameters：

Model	HT-1000	HT-1500	HT-2000
Srew diameter	55/70	70/90	70/110
L/D	32:1	32:1	32:1
T-die width	1250mm	1900mm	2400mm
Finished film width	1000mm	1500mm	2000mm
Finished film thickness	0.01-0.03mm	0.01-0.03mm	0.01-0.03mm
Max.extrusion output	100kg/h	180kg/h	260kg/h
Main motor pawer	15/22kw	22/37kw	22/75kw
Heating Power	35kw	55kw	75kw
Air consumption	0.8m³/min	0.8m³/min	0.8m³/min
Water consumption	0.5m³/min	0.7m³/min	0.9m³/min
Total Power	65kw	110kw	165kw
power supply	380/3/4/50（Volt/Ph/Une/Hz）	380/3/4/50（Volt/Ph/Une/Hz）	380/3/4/50（Volt/Ph/Une/Hz）
Overall dimension	*700023502800mm*	*750028502800mm*	*860038503200mm*

Packaging & Shipping

As an export standard pallet, the pallet material is wood, mechanically wrapped with stretch film and bubble film, and treated with fumigation.

1. Within 45-60 workding days after receipt of deposit.
2. Stretch film packing

3. By sea by train
