Red-Black OBDII Lenses Set, 750mm

8 month ago

47 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

In the realm of automotive diagnostic and connection components, the combination of high-quality male and female lenses plays a pivotal role in ensuring stable signal transmission and long-term durability. This article focuses on two complementary products: the OBDII-16P male lens with a straight head, featuring a sleek red and black color scheme, and the D05.52.5 female lens, along with the 750mm cable configuration that enhances their practicality in various automotive applications.

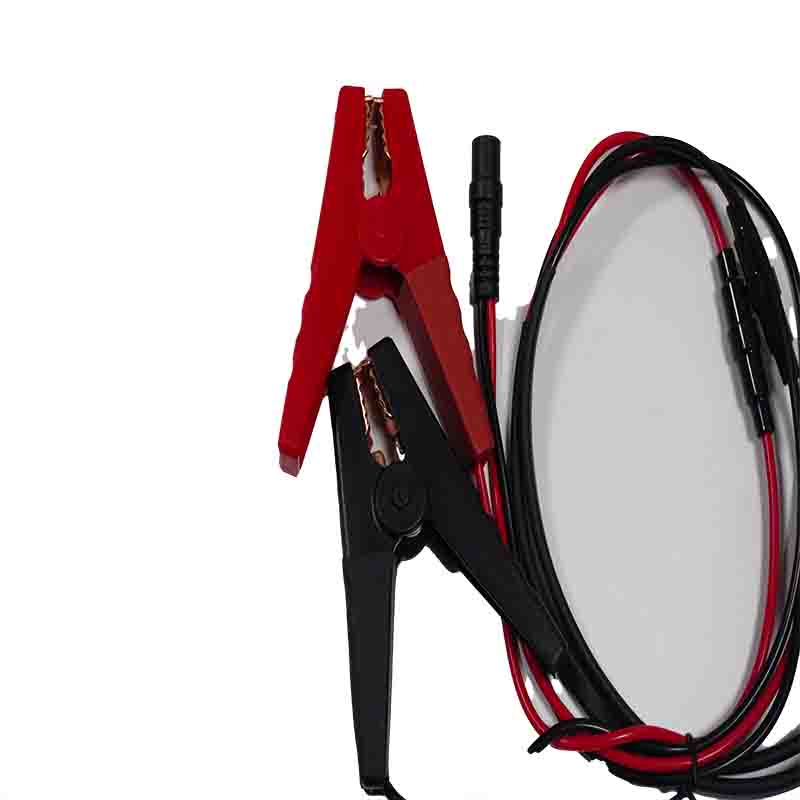

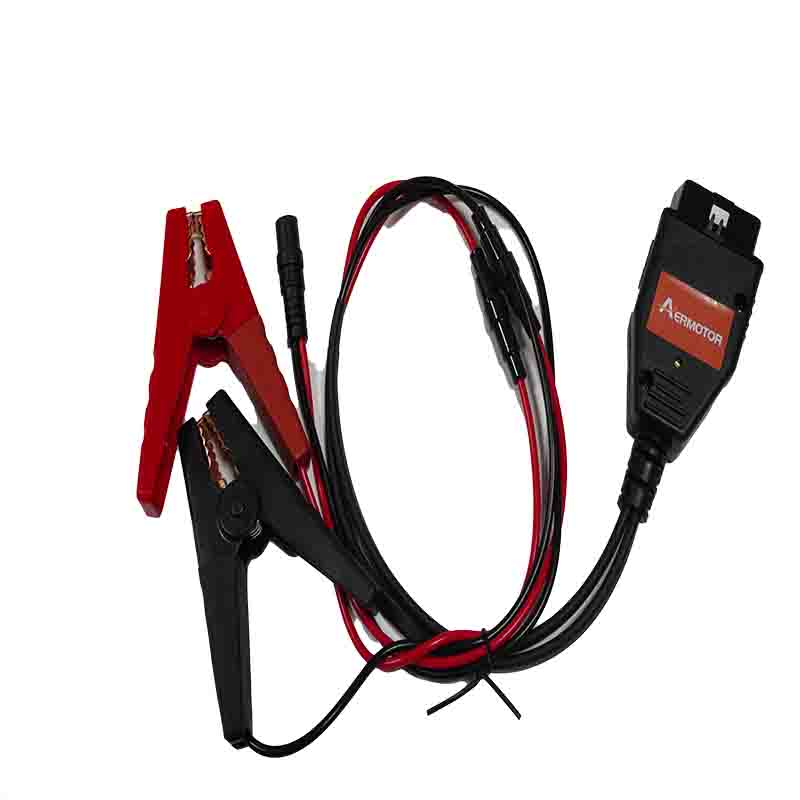

First and foremost, the OBDII-16P male lens with a straight head stands out for its ergonomic design and distinctive aesthetic. The straight head structure is meticulously engineered to facilitate easy insertion and removal, even in tight spaces within vehicle dashboards or engine bays—a common pain point in many automotive maintenance scenarios. Unlike curved alternatives, the straight head ensures a direct, secure fit into OBDII ports, minimizing the risk of loose connections that can disrupt diagnostic processes. The red and black color tones are not merely a stylistic choice; they also serve functional purposes. The bold red accents highlight the key connection points, allowing technicians to quickly identify the lens in cluttered work environments, while the matte black body resists fingerprints and scratches, maintaining a professional appearance even after prolonged use. Crafted from high-grade ABS plastic, the lens boasts excellent resistance to high temperatures and chemical corrosion, ensuring reliable performance in the harsh conditions of automotive engine compartments.

Paired perfectly with the OBDII-16P male lens is the D05.52.5 female lens, a precision-manufactured component designed for seamless compatibility. The D05.52.5 specification ensures a tight, interference-free fit with the male lens, guaranteeing optimal signal integrity during diagnostic procedures. This female lens features a robust construction with gold-plated contact pins, which significantly reduce electrical resistance and prevent oxidation over time—critical factors for maintaining consistent data transmission between diagnostic tools and vehicle ECUs (Electronic Control Units). The lens is also engineered with a secure locking mechanism that prevents accidental disconnection, providing peace of mind to technicians during intensive diagnostic work.

Item	Description
Product Name	Red-Black OBDII Lenses Set, 750mm
Type	Automotive OBD Power Supply Wiring Harness
Voltage	12V DC, Customized Voltage Specification Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade OBDII Connector Housing
Working Temperature	-40℃~+105℃ Or Customized
Length	750mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Application Fields	Automotive OBD device off-board power supply, vehicle ECU programming power backup, auto diagnostic equipment emergency power connection, car battery charging and voltage maintenance, RV & marine low-voltage power matching, automotive modification projects, DIY vehicle electronic debugging projects
Specific Shipping Cost	Please Contact Us

Complementing these two lenses is the 750mm cable configuration, which offers the ideal balance between flexibility and reach. This length is specifically tailored to meet the needs of automotive maintenance, allowing technicians to connect diagnostic tools to vehicle OBDII ports without straining the cable or restricting movement. The cable is sheathed in a durable, wear-resistant material that protects the internal wiring from abrasion and damage, while the high-quality copper conductors ensure fast, reliable data transfer. Whether working on compact sedans or larger SUVs, the 750mm cable provides sufficient length to navigate around engine components and other obstacles, making it a versatile choice for professional garages and home mechanics alike.

In summary, the combination of the OBDII-16P male lens (straight head) in red-black tones, the D05.52.5 female lens, and the 750mm cable offers a comprehensive, high-performance solution for automotive diagnostic applications. From their durable construction and seamless compatibility to their user-friendly design and functional color scheme, these components are engineered to meet the rigorous demands of the automotive industry. Whether used by professional technicians or automotive enthusiasts, this product set ensures reliable, efficient signal transmission, making it an indispensable tool in any automotive maintenance toolkit.
