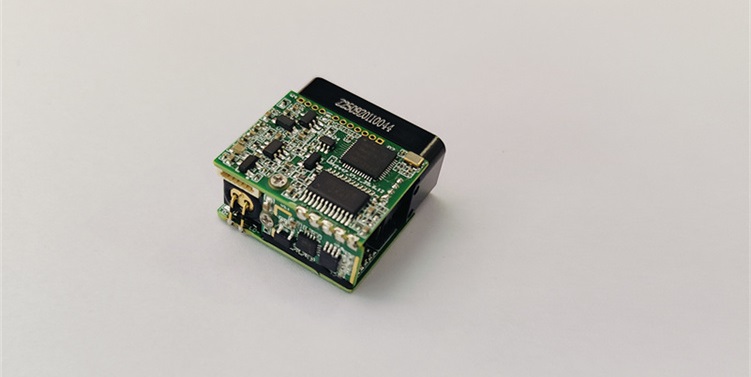

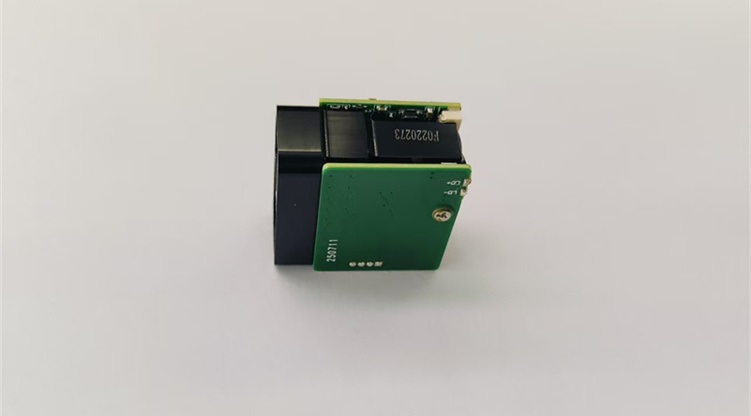

1800m Infrared Long Photoelectric Range Of a Sensor
Hello dear, are you looking for 1800m range of a sensor with high precision rangefinder? Yeah, the PTYS-18X infrared red sensor is JRT 2026 new-generation long range photoelectric sensor that can measure 1.8km. It works at 905 nm eye-safe laser, which is good for drones, night vision devices, thermal imaging, golf etc. applications. Welcome to tell us more info(Distance measurement, frequency, dimensions, interface etc. requirements), so we can help to select suitable model for you.

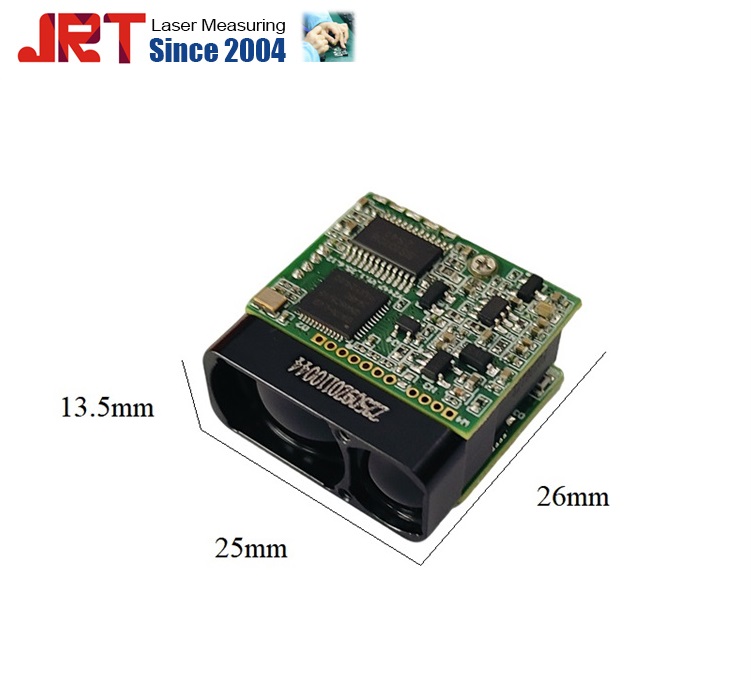

Machinical Dimensions
Technical Parameters:
1. Operating Wavelength: 905nm
2. Transmitting Aperture: Φ10mm
3. Receiving Aperture: Φ15mm
4. Ranging Capability: ≥2000m (Target: large target, Visibility: ≥10km, Humidity: ≤60%, Target Reflectivity: 0.3)
≥700m (Target: person or equivalent target, Visibility: ≥10km, Humidity: ≤60%, Target Reflectivity: 0.3)
5. Ranging Blind Zone: ≤5m
6. Ranging Accuracy: ≤±0.5m (≤80m), ±1m (≤1000m), ≤±(0.2+0.0015*D) (>1000m)
7. Divergence Angle: ≤6mrad
8. Detection Rate: ≥98%
9. False Alarm Rate: ≤1%
10. Ranging Frequency: Single shot, 1Hz, 2Hz, 5Hz
11. Baud Rate: 115200bps
12. Weight: ≤12g
13. Dimensions: ≤26mm×25mm×13.5mm
14. Function: Laser Ranging
Electrical & Power features
1. Electrical Interface: Connector Plug: 0.8WTB-6Y-2
Connector Socket: 0.8WTB-6AWB-01
2. Power Supply Voltage: 3.3V～5V
3. Standby Power Consumption: ≤0.8W@1Hz
4. Average Power Consumption: ≤1.6W@1Hz
Environmental conditions
1. Operating Temperature: -20℃～+60℃
2. Storage Temperature: -45℃～+60℃
Close Pins Picture
Applications
This Industrial laser range sensor can be widely used in agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.
Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Rangefinder Sensor , Tof LiDAR Sensors, Measuring Tool Instruments.
