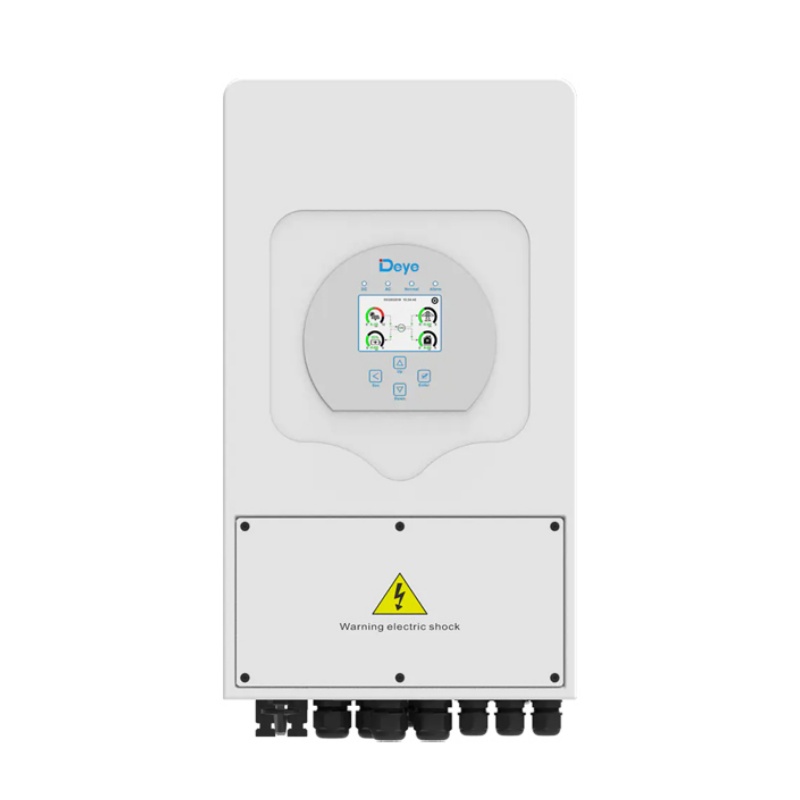

Model
|
SUN-3.6K
-SG05LP1-EU |
SUN-5K
-SG05LP1-EU |
SUN-6K
-SG05LP1-EU |
SUN-7K
-SG05LP1-EU |
SUN-7.6K
-SG05LP1-EU |
SUN-8K
-SG05LP1-EU |
||||||
|
Battery Input Data
|
|
|
|
|
|
|
||||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|
|
|
||||||
|
Battery Voltage Range (V)
|
40-60
|
|
|
|
|
|
||||||
|
Max. Charging Current (A)
|
90
|
120
|
135
|
175
|
190
|
190
|
||||||
|
Max. Discharging Current (A)
|
90
|
120
|
135
|
175
|
190
|
190
|
||||||
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
|
|
|
|
|
||||||
|
Number of Battery Input
|
1
|
|
|
|
|
|
||||||
|
PV String Input Data
|
|
|
|
|
|
|
||||||
|
Max. PV Input Power (W)
|
4680
|
6500
|
7800
|
10000
|
9880
|
10400
|
||||||
|
Max. PV Input Voltage (V)
|
500
|
|
|
|
|
|
||||||
|
Start-up Voltage (V)
|
125
|
|
|
|
|
|
||||||
|
MPPT Voltage Range (V)
|
150-425
|
|
|
|
|
|
||||||
|
Rated PV Input Voltage (V)
|
370
|
|
|
|
|
|
||||||
|
AC Input/Output Data
|
|
|
|
|
|
|
||||||
|
Rated AC Input/Output Active Power (W)
|
3600
|
5000
|
6000
|
77000
|
7600
|
8000
|
||||||
|
Max. AC Input/Output Apparent Power (VA)
|
3960
|
5500
|
6600
|
7700
|
8360
|
8800
|
||||||
|
Max. Continuous AC Passthrough (grid to load) (A)
|
35
|
|
40
|
50
|
|
|
||||||
|
Rated Input/Output Grid Frequency/Range(Hz
|
50/45-55, 60/55-65
|
|
|
|
|
|
||||||
|
Rated Input/OutputVoltage/Range (V)
|
220/230 0.85Un-1.1Un
|
|
|
|
|
|
||||||
|
Efficiency
|
|
|
|
|
|
|
||||||
|
Max. Efficiency
|
97.6%
|
|
|
|
|
|
||||||
|
Euro Efficiency
|
96.5%
|
|
|
|
|
|
||||||
|
MPPT Efficiency
|
>99%
|
|
|
|
|
|
||||||
|
Surge Protection Level
|
TYPE II(DC), TYPE II(AC)
|
|
|
|
|
|
||||||
|
Communication Interface
|
WIFI, RS485, CAN
|
|
|
|
|
|
||||||
|
Operating Temperature Range (℃)
|
-40 to +60℃, >45℃ Derating
|
|
|
|
|
|
||||||
|
Permissible Altitude
|
2000m
|
|
|
|
|
|
||||||
|
Noise (dB)
|
<30
|
|
|
|
|
|
||||||
|
Ingress Protection(IP) Rating
|
IP 65
|
|
|
|
|
|
||||||
|
Cabinet Size (WxHxD mm)
|
330×580×232 (Excluding Connectors and Brackets)
|
|
|
|
|
|
||||||
|
Weight (kg)
|
24.9
|
|
|
|
|
|
||||||
|
Warranty
|
5 Years/10 Years
|
|
|
|
|
|
||||||
|
Grid Regulation
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
|
|
|
|
|
||||||
|
Safety / EMC Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
|
|
|
|
|
||||||
