I. Product Overview

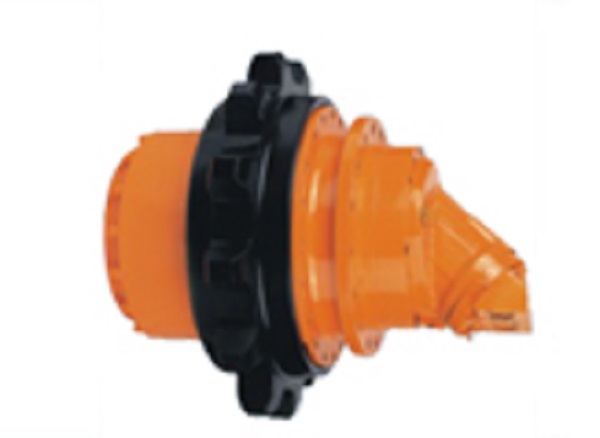

TheXZ-36000is a high-pressure braking crawler travel reducer, classified as a hydraulic travel motor, specifically designed for tracked or wheeled equipment. It features high torque, low rotational speed, and a compact structure, enabling stable movement for devices such as drilling rigs, excavators, and engineering vehicles. Its core function is to drive crawlers or wheels via a hydraulic system, ensuring reliable locomotion in demanding applications.

II. Key Specifications

【表格】

Parameter Value Description

Rated Torque 36,000 N·m Suitable for heavy-duty applications like large drilling rigs or excavators.

Speed Range 0.1–20 r/min Low-speed design ensures smooth operation and reduces impact.

Maximum Pressure 31.5 MPa High-pressure system adapts to harsh conditions (e.g., mining, trenchless work).

Reduction Ratio 131:1 Multi-stage planetary gearbox amplifies torque for heavy loads.

Weight 220 kg Compact design facilitates easy installation on equipment chassis.

Braking Method High-pressure braking Equipped with a static braking torque ≤8,500 N·m for reliable stopping.

III. Structural Components

TheXZ-36000consists of the following core parts:

1. High-Speed Hydraulic Motor

• Utilizes radial piston or ball-piston design (e.g., A2FE80/90 series) for efficient hydraulic energy conversion.

2. Planetary Gearbox

• Multi-stage planetary gear transmission achieves high reduction ratios and torque output.

3. Brake System

• Hydraulically controlled braking ensures rapid response and stability on slopes or during stops.

4. Valve Assembly

• Integrated pressure compensation valves and relief valves optimize system pressure control to prevent overloading.

5. Housing and Drive Design

• Directly connects to crawler drive wheels or vehicle wheels, minimizing transmission losses and improving efficiency.

IV. Technical Advantages

1. High Load-Bearing Capacity

• Tapered roller bearings withstand axial and radial forces during excavator operation, extending service life.

2. Patented Technology

• National patent-awarded design ensures structural optimization and stable performance, replacing imported alternatives.

3. Versatility

• Compatible with drilling rigs, trenchless rigs, rotary drilling rigs, and tunneling machines for diverse industrial needs.

4. Energy Efficiency

• Low-speed, high-torque output reduces energy waste and enhances overall equipment efficiency.

V. Application Scenarios

1. Drilling Rigs

• Serves as the crawler travel drive for horizontal directional drilling rigs (e.g., XCMG XZ3600), providing stable thrust (max. 6,600 kN) and rotational torque (120,000 N·m).

2. Excavators

• Replaces traditional mechanical transmissions in medium-sized excavators (e.g., Hitachi ZX360H-5G), improving mobility and gradeability (70% slope capacity).

3. Engineering Vehicles

• Used in rail vehicles or heavy-duty transport equipment for low-speed, high-torque locomotion.

VI. Selection and Installation Guidelines

1. Parameter Matching

• Choose models (e.g., XZ-30000 or XZ-36000) based on equipment weight, travel speed, and load requirements.

2. Installation Requirements

• Ensure a flat mounting surface to avoid misalignment; align crawler drive wheels precisely to minimize vibration.

3. Maintenance

• Regularly inspect hydraulic oil cleanliness and replace filters; verify brake performance to prevent failure.
