Copper braided wire welding and cutting machine

Copper braided wire welding and cutting machine

2 month ago

0 0

Ningbo Xin Chang Machinery Co.,Ltd

 8 month year

Product details

Fully Automatic MFDC Spot Welding and Cutting Machine for Copper Braid Wires

Product advantages:

High welding stability;
Save more than 30% electricity and have low operating costs;
Balanced input of three-phase power supply, with a power factor of up to 95%;
Lower welding current and electrode pressure;
The secondary circuit has almost no induced energy loss;
Increase electrode life by more than double, reducing electrode grinding time;
Significantly saving the installation costs of electricity and auxiliary facilities such as water and gas;
Control and analyze welding parameters more accurately, quickly, and comprehensively;
Shorter welding time, improving work efficiency and welding quality;
The welding range is wider, and the welding effect is better for low-carbon steel, stainless steel, copper, aluminum, and galvanized sheet;

SR	Name	Parameters
1	MF controller	450A
2	Model	DNM-130KVA
3	Rated volt	380V± 15% 50HZ
4	Rated capacity	130KVA
5	Duty cycle(％)	20
6	Max short circuit current	25 KA
7	Compressed air	0.6-0.8 MPa
8	Throat depth	200mm
9	Output copper braid wires	Single pc or double pc
10	Cycle time	4-5 s per single wires
11	Insulation class	F
12	Cylinder stroke（mm）	80
13	Range of current（KA）	0-25
14	Cooling water pressure（Mpa）	0.15
15	Cooling water flow	12 L/MIN

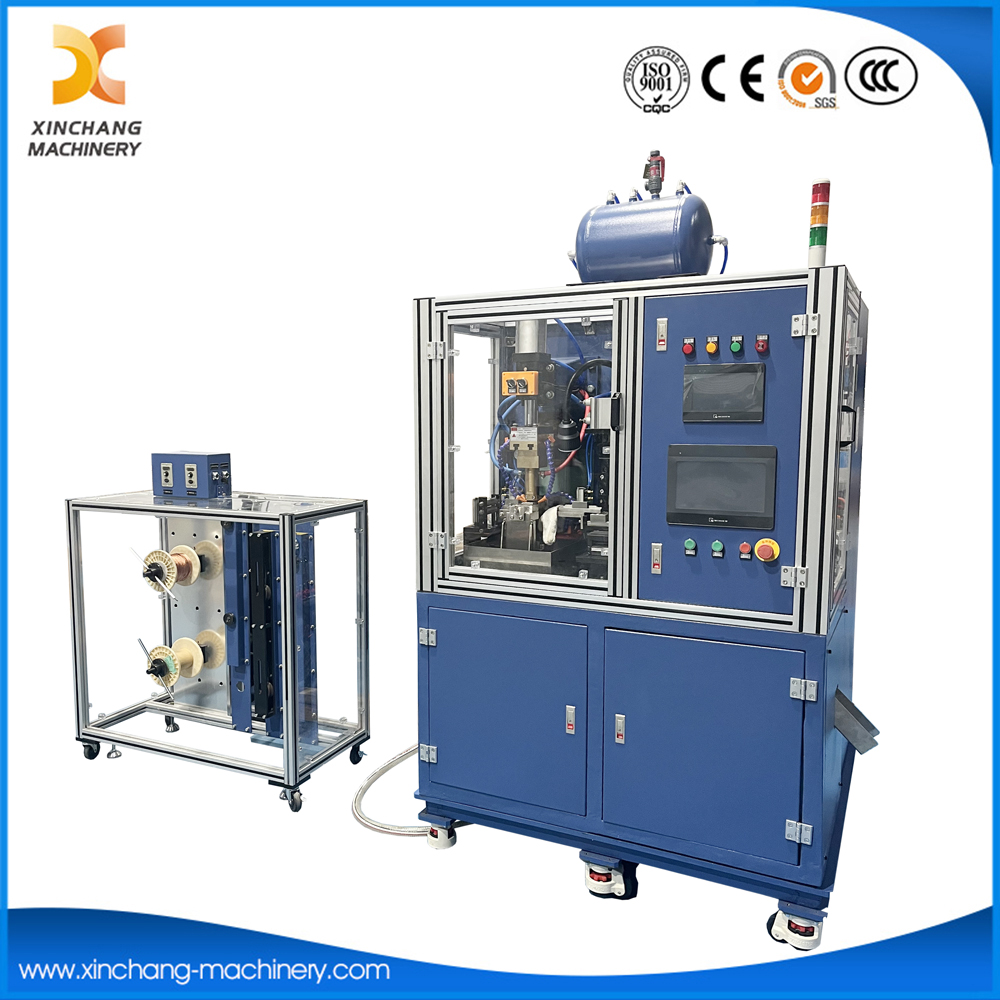

Copper braided wire welding and cutting machine (1)

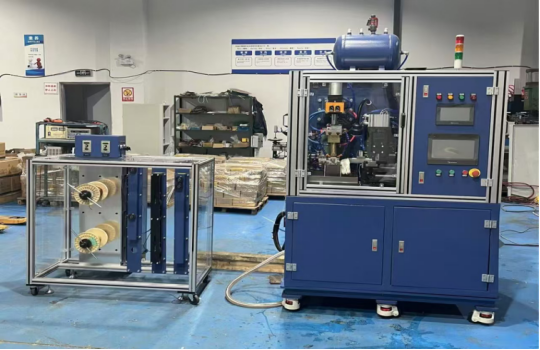

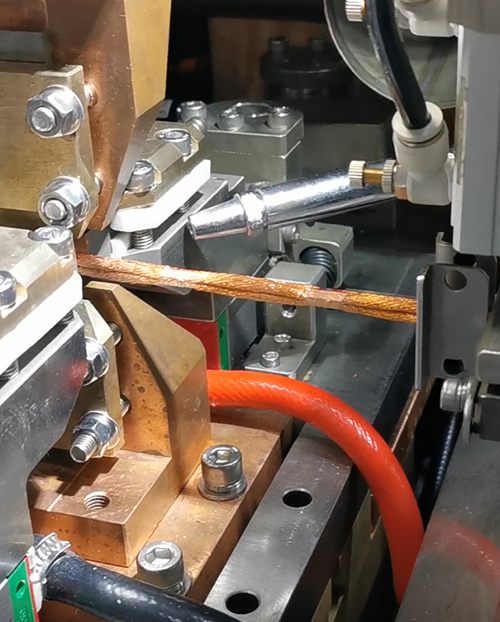

Copper braided wire welding and cutting machine (2)
