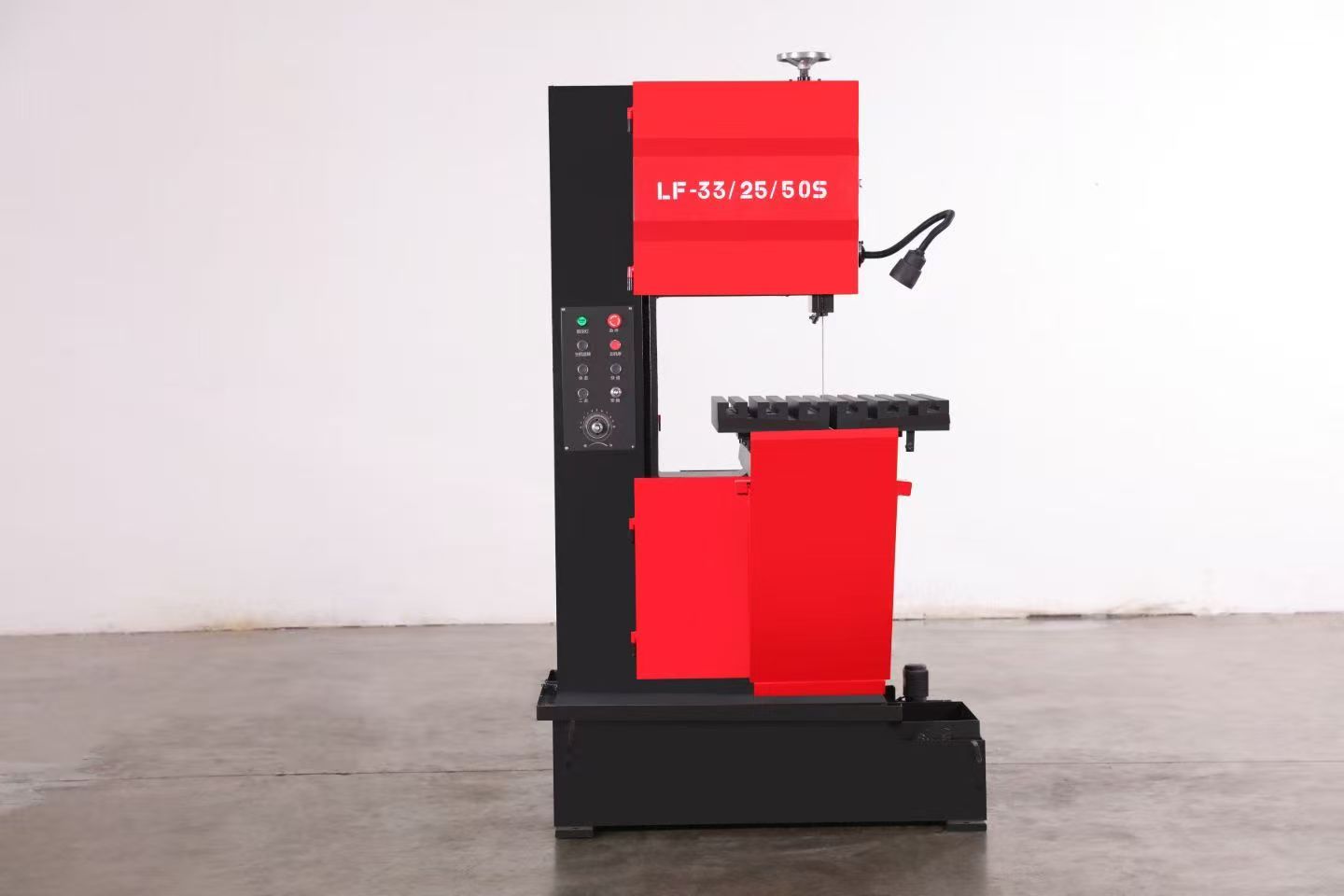

LF Type Vertical Band Sawing Machine: An Energy-Efficient Metal Cutting Equipment
Metal cutting operations often face the challenges of wide cutting edges and high material consumption, as well as limited applicable industry scenarios. Many users also encounter the problem of needing to frequently switch equipment for cutting black and Non-ferrous metals materials， resulting in high energy consumption. Our Vertical Band Sawing Machine (LF type vertical band sawing machine)， as a base product of the vertical band sawing machine series， integrates advanced foreign experience and becomes a high-quality solution to these problems. It can cut various specifications of black metal steel materials and profiles, and by adjusting process parameters， it can also cut Non-ferrous metals materials. It is compatible with saw machines， tapping machines， and grinding machines for collaborative operations， widely used in large and medium-sized steel groups， machinery， automobiles， shipbuilding， and other industries， helping enterprises reduce costs and increase efficiency， and improving the cutting process level.
This vertical band sawing machine uses a double-metal band saw blade as the cutting tool. The narrow cutting edge significantly reduces material loss， while maintaining high efficiency and low energy consumption. It also takes into account energy conservation and environmental protection， meeting the requirements of modern industrial production. In actual operations， whether it is pre-processing workpieces for the subsequent tapping machine threading process or completing high-precision processing before materials by the grinding machine， its stable cutting performance can lay a good foundation for subsequent processes， and it can also form complementarity with other saw machines to cope with different cutting scenarios.
In addition， the equipment is widely applicable in various industries， from metallurgy， mining to petroleum and chemical fields， meeting the metal cutting needs of these industries. Without the need to frequently replace equipment， it can handle various materials， reducing equipment investment costs for enterprises and improving the smoothness of the production process.
Product Features
Integrating advanced technology， with narrow cutting edges， high efficiency， and low energy consumption， it also takes into account energy conservation and environmental protection， suitable for cutting black and Non-ferrous metals materials.
It has a wide range of applicable industries， can be coordinated with saw machines， tapping machines， and grinding machines， reducing equipment investment.
Tips for Use
It is recommended to select the appropriate double-metal band saw blade based on the type of cutting material and regularly check the condition of the saw blade； when not in use， clean the equipment well to avoid the accumulation of metal debris affecting performance.
Main structure
1. Bed: It is a frame structure composed of the base, end plate, and side plate welded together. The bed has a large internal space. The platform moves left and right within the cavity and is used to hold the cooling cutting fluid, which is for the welding of steel plates and channel steel.
2. Saw frame: The saw frame is a welded arch-shaped box. The main motor, driving saw wheel, driven saw wheel, worm gear box, guiding device, upper and lower guiding heads, saw blade tensioning device, etc. are assembled. The saw frame body is an arch-shaped box made of thick steel plates and has strong rigidity.
3. Guiding device: The guiding device consists of upper and lower guiding mechanisms. The guiding seat on the upper guiding mechanism is installed on the saw frame support plate and is driven by a screw. The guiding rods installed on the upper guiding seat move up and down to adjust the distance between the upper guiding head and the guiding block to adapt to different thickness workpieces.

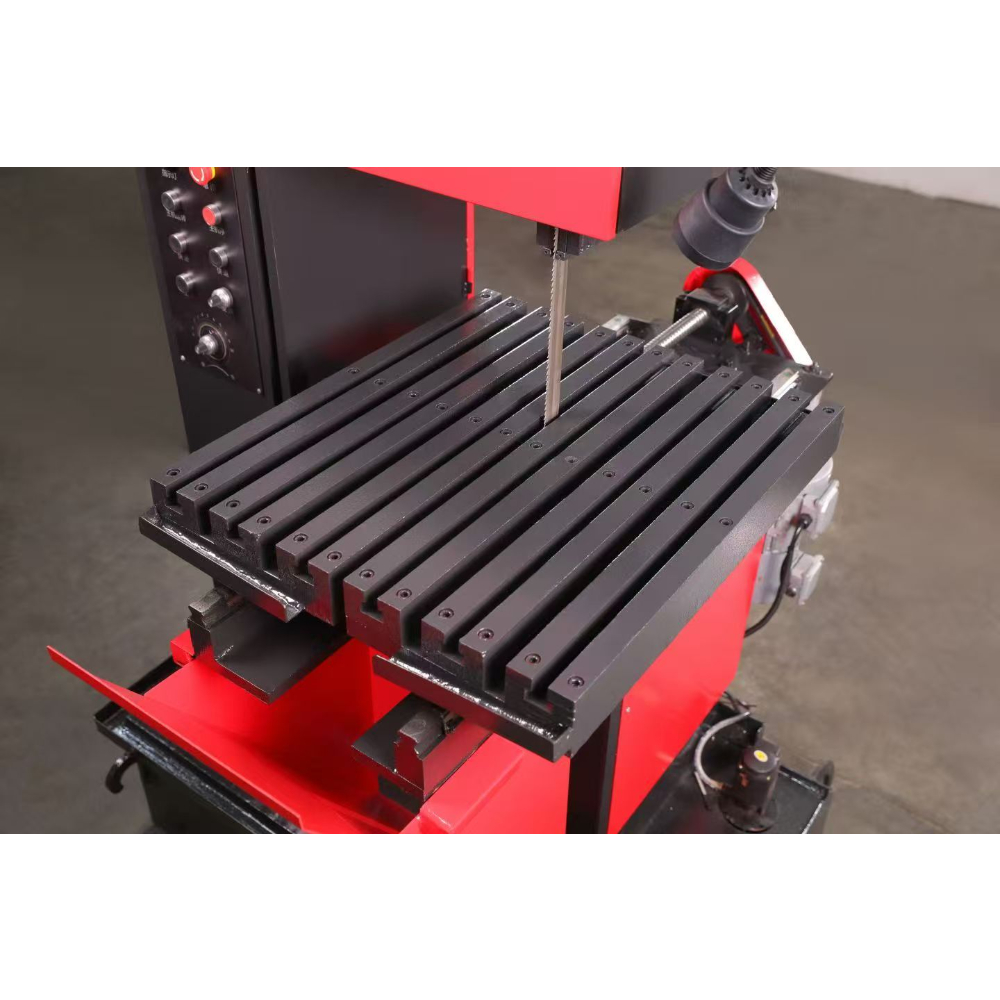

4. Clamping mechanism: The clamping of the workpiece is achieved by using a pressure plate, bolts, and a T-shaped slot component threaded onto the worktable, and the nut is tightened to fix the workpiece.
5. Tensioning device: The tensioning device includes a sliding plate, sliding plate seat, and tensioning handwheel, etc. When the tensioning handwheel rotates clockwise, the saw belt is tightened, and when it rotates counterclockwise, the saw belt is loosened.
6. Cooling system: It is composed of a cooling liquid tank, cooling pump, valves, and nozzles, used to ensure the provision of sufficient cooling fluid to the cutting area, improving the cutting effect, the service life of the saw belt, and the accuracy of the cutting section, to ensure normal cutting.

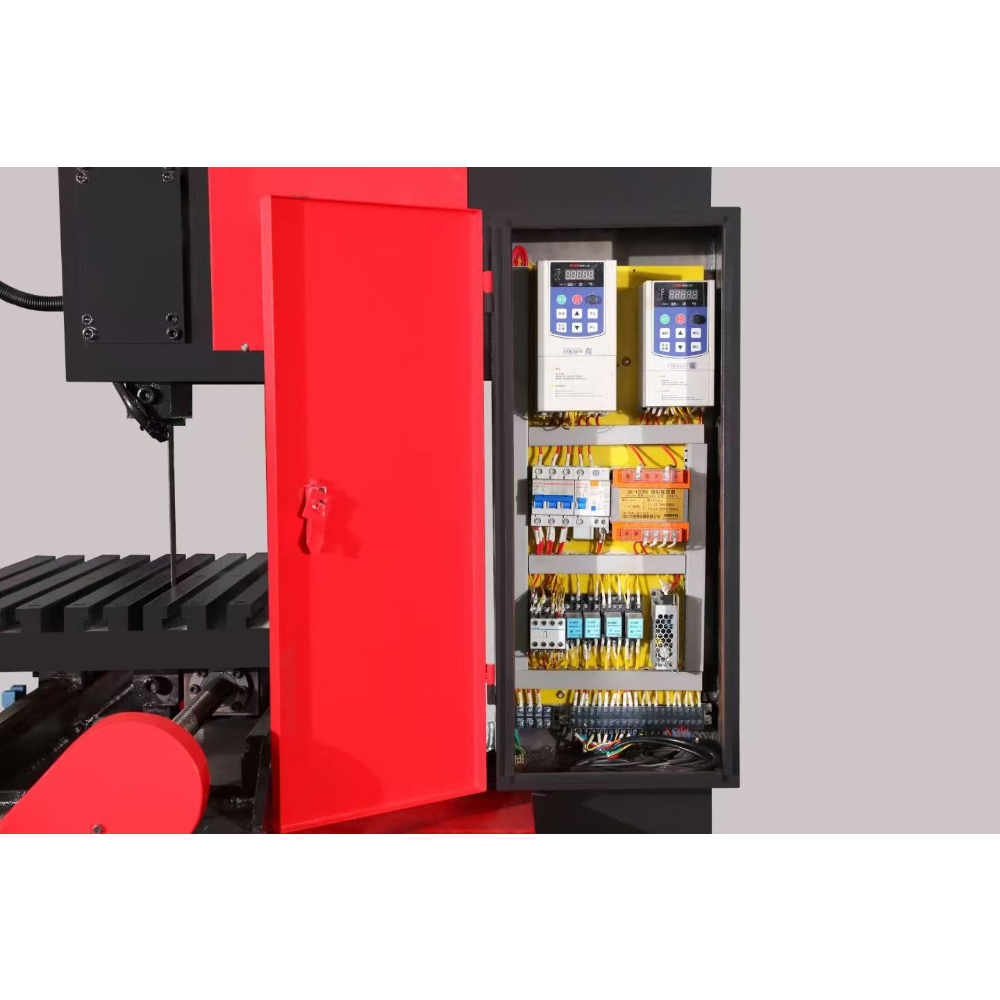

7. Electrical control system: This machine tool is designed to use a separate electrical control cabinet, and all electrical components are installed in the electrical cabinet.
