I. Definition and Working Principle

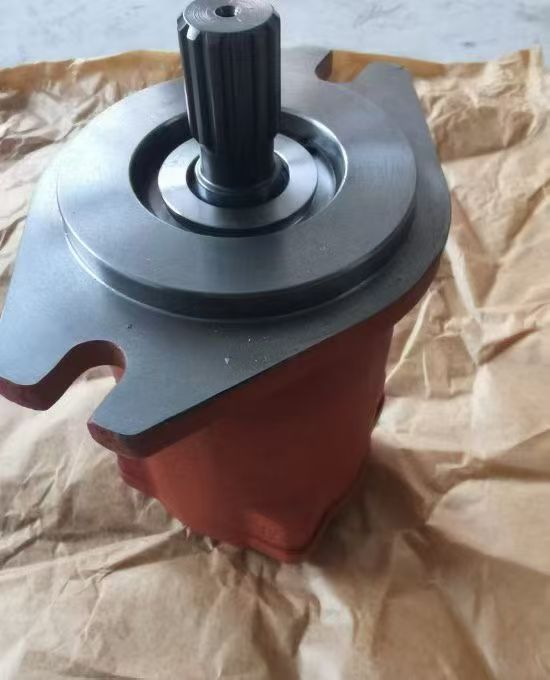

• Definition: A hydraulic motor is an actuator in a hydraulic system that converts the hydraulic energy provided by a hydraulic pump into mechanical energy (torque and rotational speed) at its output shaft. The liquid serves as the medium for transmitting force and motion.
• Working Principle: The hydraulic motor generates rotational torque by applying pressurized oil to the rotor or plungers inside the motor, driving the output shaft to rotate. Different types of hydraulic motors (such as vane-type, radial piston-type, and axial piston-type) have distinct working principles and structural characteristics.
II. Types and Characteristics
• Types:
• Vane-Type Hydraulic Motor: Compact in size, with low rotational inertia and quick response, suitable for applications requiring frequent direction changes. However, it has relatively high leakage and may exhibit unstable operation at low speeds.
• Radial Piston-Type Hydraulic Motor: Simple in structure and reliable in operation. However, it is bulky, heavy, and may experience torque pulsation, with relatively poor low-speed stability.
• Axial Piston-Type Hydraulic Motor: Offers high efficiency and stability, suitable for high-pressure, high-flow hydraulic systems.
• Characteristics:
• High Efficiency: Hydraulic motors efficiently convert hydraulic energy into mechanical energy, providing stable torque and rotational speed output.
• Strong Controllability: The rotational speed and torque of hydraulic motors can be precisely controlled by adjusting the pressure and flow rate of the hydraulic system.
• High Adaptability: Hydraulic motors are suitable for various harsh working environments, including high temperatures, low temperatures, humidity, and corrosion.
III. Application Scenarios
• Agricultural Sector: Hydraulic motors are widely used in agricultural machinery for propulsion, suspension systems, mixers, irrigation systems, harvesters, and other equipment. Due to their high output torque, ability to withstand heavy loads, compact size, light weight, high precision, and quick response, they are also extensively applied in power steering systems, hydraulic transmissions, and hydraulic clutches.
• Construction Sector: Hydraulic motors are primarily used in the hydraulic drive systems of large-scale construction machinery, such as tunnel boring machines, cranes, bridge construction equipment, oil cylinder propulsion machines, and stone cutting machines. Their high output torque, wide speed range, and smooth and stable operation make them ideal for construction applications.
• Mining Sector: Hydraulic motors are used in mining conveyor systems, coal mining machines, hoists, water pumps, and other large equipment. Given the demanding requirements for structural complexity, heavy workload, and harsh working conditions in these applications, hydraulic motors are favored for their reliability and efficiency.
• Other Sectors: Hydraulic motors are also widely applied in injection molding machinery, ships, winches, engineering machinery, coal mining machinery, metallurgical machinery, petrochemicals, port machinery, and other fields.
IV. Selection and Usage Considerations
• Selection: When selecting a hydraulic motor, it is essential to determine the motor type, specifications, and parameters based on the specific application scenario and requirements. Factors such as rated pressure, rated flow rate, speed range, and torque characteristics should be considered.
• Usage Considerations:
• Ensure Hydraulic System Cleanliness: Impurities and contaminants in the hydraulic system can accelerate wear and failure of the hydraulic motor. Therefore, regular cleaning and replacement of hydraulic oil are necessary.
• Avoid Overloading: Overloading can cause the hydraulic motor to overheat, increase wear, and even damage the motor. Thus, the hydraulic system should be designed reasonably based on the motor's rated parameters.
• Regular Maintenance and Upkeep: Regular inspection and maintenance of the hydraulic motor, such as replacing seals and cleaning oil circuits, can extend its service life and improve its working efficiency.
