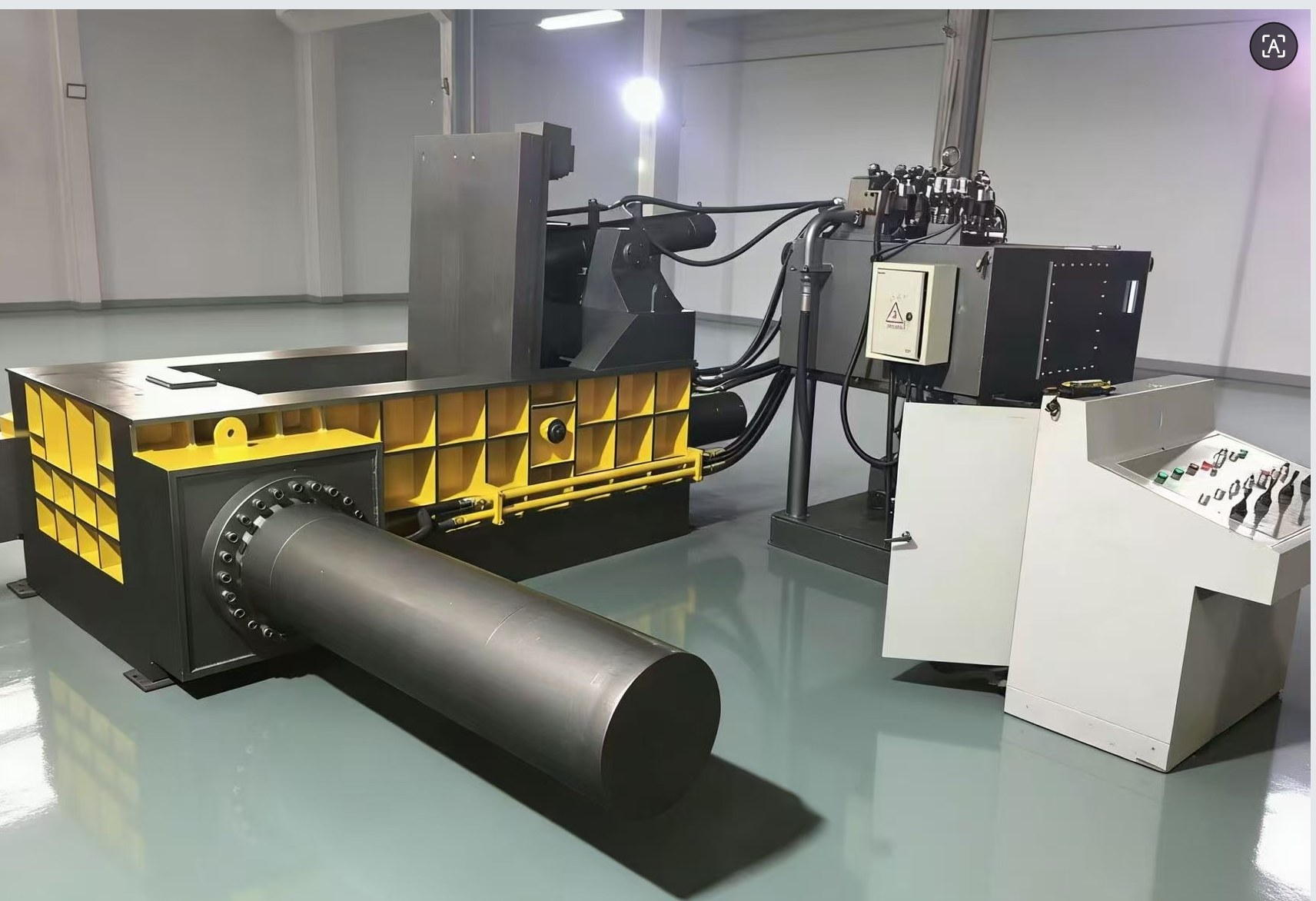

Hydraulic baler machine

7 month ago

29 0

Jiangsu nanyuan hydraulic co.,ltd

 3 year year

Product details

Jiangsu Nanyuan Hydraulic Co., Ltd. had set up since 2006 who is specializing in the hydraulic production of Y81 series metal baler, Q91 series Gantry shear, Y83 series metal briquetting press , Y82 series non-metal packer, scrap crushing line,Q43 series crocodile type hydraulic shear, shredder and other non-standard products.

Hydraulic Principle Description

When all control levers are in the neutral position, high-pressure oil flows back to the oil tank through the relief valve, and the system operates under no load. If the main pressure cylinder lever is pushed to the forward position, the main hydraulic cylinder advances; if pushed to the backward position, the main cylinder retracts. If the side pressure cylinder valve (or door cover cylinder) lever is pushed to the forward position, the side pressure cylinder advances (or the door cover lowers); if the lever is pushed to the backward position, the side pressure cylinder retracts (or moves to the rear position), and the door lock cylinder advances or retracts.

Model: Y81/F-160B

Main cyl.force: 160 tons

Press box size:1600*1200*800mm

Bundle size:400*400mm

Total power:37KW
