PRODUCT OVERVIEW

The aluminum heat shrink packing machine is an automated packaging solution designed for aluminum profiles and other long-profile products. It integrates automatic film sleeving, sealing, cutting, conveying, and heat shrinking into one continuous packaging process.

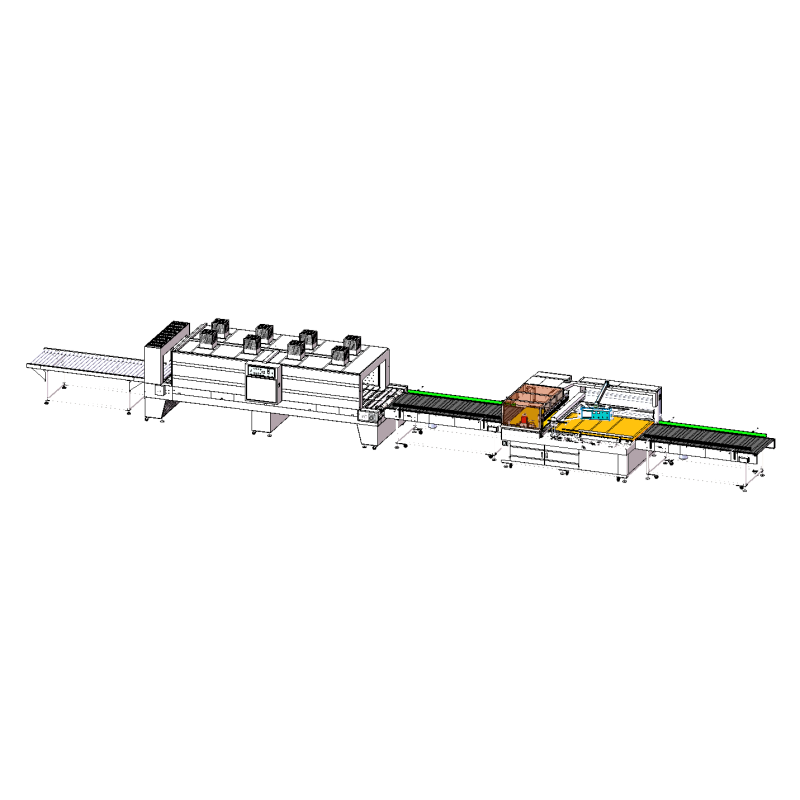

The system consists of an automatic edge sealing and cutting unit and a constant-temperature shrink packaging unit. It reduces manual packaging work while providing a neat and consistent finished package.

The Heat Shrinking Packing Machine For Aluminum is suitable for aluminum profile manufacturers looking to improve packaging efficiency and product protection.

KEY FEATURES

Fully Automatic Packaging

Automatic film sleeving, sealing, cutting, and material conveying are integrated into one process, reducing manual operations.

Integrated Sealing & Cutting System

The machine uses an integrated sealing and cutting system for stable operation and a clean package appearance.

Easy-to-Use Control Interface

The human-machine interface provides convenient operation and parameter control for different packaging requirements.

Imported Electrical Components

Selected imported electrical components help support stable long-term machine operation and reduce the risk of equipment downtime.

Parameter Storage Function

The control system can store packaging parameters, making it convenient to switch between different packaging products.

Automatic Sealing-Cutting Protection

The sealing and cutting unit features an automatic protection function to help prevent accidental cutting of the packaged material.

Constant-Temperature Shrinking

The shrink tunnel provides controlled heating for uniform film shrinking and a tighter package finish.

TECHNICAL PARAMETERS

Automatic Edge Sealing & Cutting Machine

Item	Specification
Equipment Name	Automatic Edge Sealing Machine
Power Supply	380V, 3 Phase, 50–60Hz
Packaging Speed	16 m/min
Net Weight	1,200 kg
Total Power	4.0 kW
Machine Dimensions	L2800 × W2300 × H1480 mm
Packaging Size	W + H ≤ 1200 mm
Packaging Height	H < 200 mm
Packaging Width	900–1000 mm
Standard Product Length	150–2700 mm

Heat Shrink Tunnel

Item	Specification
Equipment Name	Constant-Temperature Shrink Packaging Machine
Power Supply	380V, 3 Phase, 50–60Hz
Production Speed	1–40 pcs/min
Net Weight	1,500 kg
Total Power	50 kW
Machine Dimensions	L3500 × W1960 × H1800 mm
Shrink Tunnel Size	L2500 × W1300 × H400 mm

The actual packaging performance should be confirmed according to the customer's aluminum profile dimensions, packaging film, and production requirements.

WORKING PROCESS

Film Loading → Automatic Film Sleeving → Edge Sealing → Automatic Cutting → Conveying → Heat Shrinking → Cooling → Finished Product

The aluminum profiles enter the packaging system, where the film is automatically applied and sealed. After cutting, the packaged profiles are conveyed into the shrink tunnel. Controlled heating shrinks the film around the product, producing a compact and neat package suitable for handling, storage, and transportation.

APPLICATION SCENARIOS

The heat shrink machine for aluminum can be applied in various aluminum profile packaging operations, including:

Aluminum extrusion factories
Architectural aluminum profile manufacturers
Door and window profile production
Curtain wall aluminum profile production
Industrial aluminum profile packaging
Aluminum profile processing and finishing factories
Packaging lines for long aluminum products

WHY CHOOSE US?

We focuses on aluminum profile processing and packaging equipment, providing practical solutions for aluminum extrusion and downstream processing factories.Our equipment covers aluminum profile film laminating, wrapping, bagging, heat shrink packaging, surface grinding, straightening, wood-grain transfer, and related packaging equipment.

For the shrink packing machine for aluminum, we can select and configure the equipment according to the customer's:

Aluminum profile dimensions
Product length and quantity
Packaging film type
Required packaging method
Production capacity
Available factory space

This allows the packaging system to better match the customer's actual production requirements.

FAQ

Q1: What products can this aluminum heat shrink packing machine package?

It is mainly designed for aluminum profiles and other long-profile products. The suitable packaging dimensions should be confirmed according to the specific product.

Q2: Is the machine fully automatic?

Yes. The system integrates film sleeving, sealing, cutting, conveying, and heat shrinking to reduce manual packaging operations.

Q3: What is the difference between the sealing-cutting unit and the shrink tunnel?

The sealing and cutting unit applies and seals the packaging film, while the shrink tunnel uses controlled heating to shrink the film around the packaged product.
