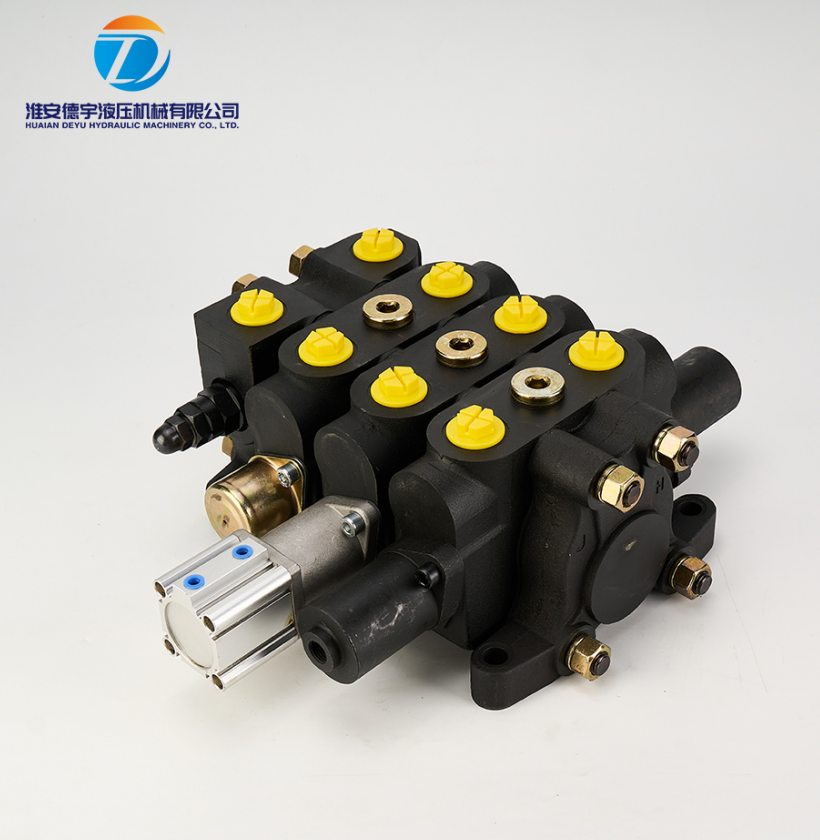

DL20 Hydraulic Manual Multi-Way Directional Valve

DL-15 series multiple directional control valve is assembled with check valve, safety valve, inlet body, oil-returning body and several pieces of inverting valves.lt has such characteristics as compactstructure, high working pressure.good performance, high reliability, etc. The circuit is parallelconnection. There are many spool functions for the system. The positioning and returning modes of the valve handle include spring returning and ball locking.There is a check valve inside the valve plate incase of back flow. There is a overflow valve in the inlet valve plate to control the whole system pressure. Oil inlet valve has overflow valve to control the pressure of all system. The two ends of the inverting valve may beassembled with overloaded valve to meet different load requirement of different executivemechanism. The valve is widely used in such hydraulic systems of engineering machinery as forklift, environmental trucks,etc.

Parameter Item	Specification
Brand name	DEYU
Nominal Flow	60-100L/min
Max Working Pressure	16-31.5 Mpa
Nominal Diameter	15-20mm
Thread interface	DL15=M22*1.5
Application	Used for pile drivers,garbage compactors and various engineering vehicles.
Warranty	1 year
Material	Iron and steel
Structure	Depending on Model
Certification	ISO 9001,CE
OEM	Available
