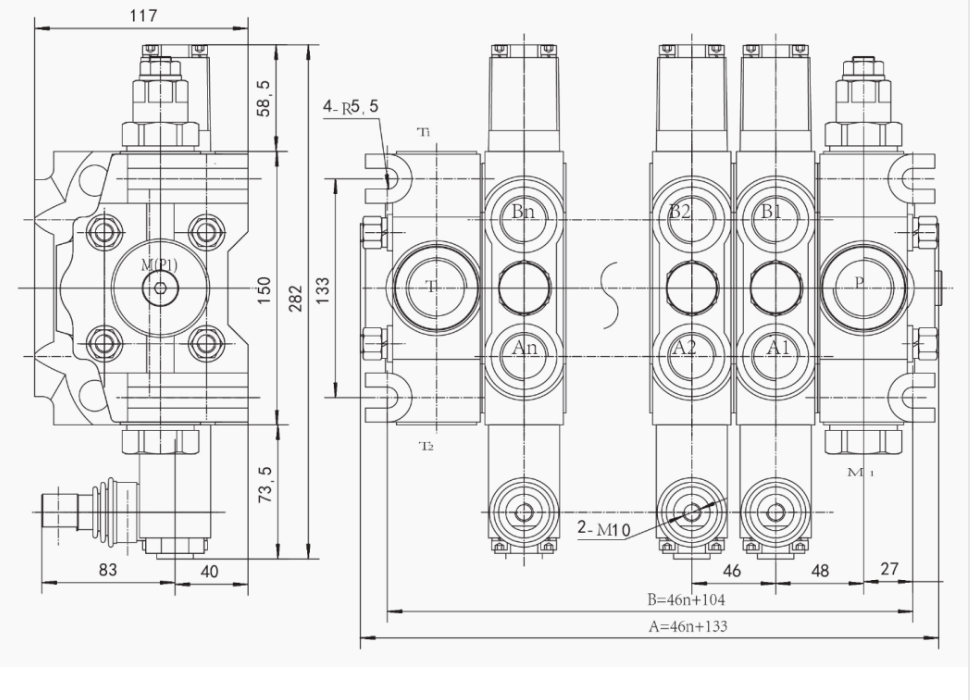

DCV140 Multi-control Hydraulic Directional Control Valve

Our DCV140 manual/pneumatic controlled modular multi-way directional valve is a high-end control core designed for ultra-high flow and heavy-duty hydraulic systems. It features a modular design, allowing for flexible combinations of 2-6 valve cores, and supports both manual and pneumatic operation.

It integrates a relief valve and a load check valve, boasting excellent pressure resistance and low leakage. Suitable for open/closed center hydraulic systems, it has a rated flow rate of up to 140L/min, meeting the multi-action coordinated control requirements of large mining equipment, heavy construction machinery, and port machinery under extreme operating conditions. The entire process undergoes rigorous pressure resistance, leakage, and durability testing, providing equipment with a stable and reliable original equipment manufacturer (OEM) hydraulic control solution.

Parameter	Specification
Structure Type	Sectional Multi-way Directional Valve
Control Mode	Manual + Pneumatic (Dual Mode)
Spool Configuration	2~6 Spools (Customizable)
Nominal Flow	140 L/min (36.9 US gpm)
Max Working Pressure	350 bar (5100 psi)
Port Size	G1, M33×2, SAE 20, 1 NPT
Working Fluid	Mineral Base Hydraulic Oil
Ambient Temp Range	-40°C ~ +80°C (-40°F ~ +176°F)
Standard Configuration	Main Relief Valve, Load Check Valve, Pneumatic Control Module
Application	Large Mining Equipment, Heavy Construction Machinery, Port Machinery

If you have any questions about DCV Series Multi-way Directional Valve, please feel free to leave a message through our backend system, and I will provide you with product information as soon as possible.

In addition to Hydraulic Multi-way Directional Valve, we also manufacture a range of other products including Hydraulic Lock, Overflow Valve, Manual Control Valve, Solenoid Valve,and more.
