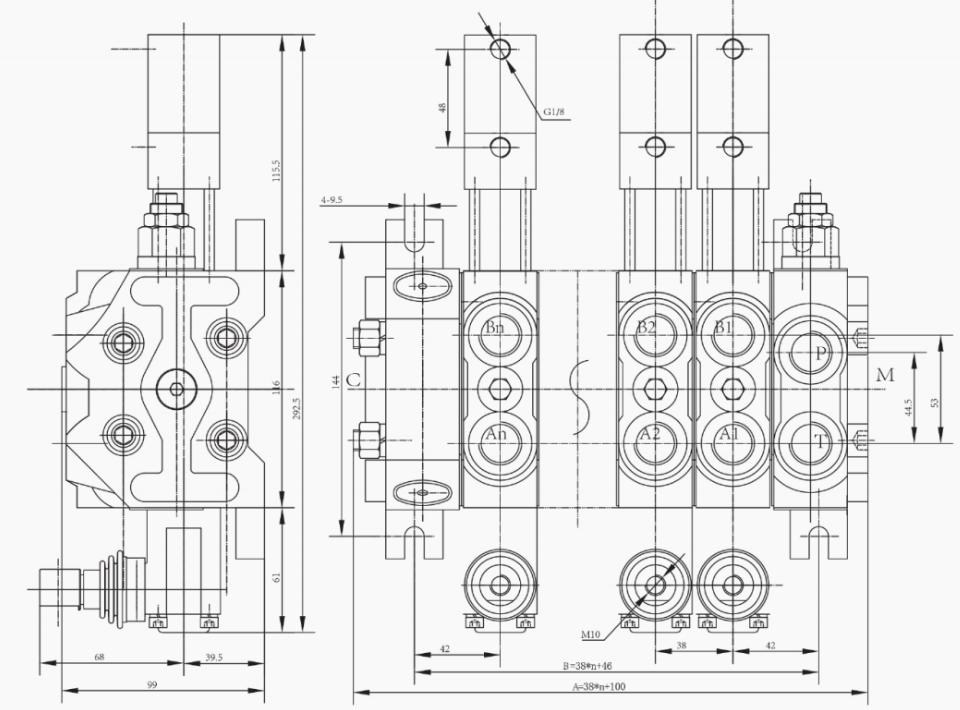

DCV60 Dual-Mode Multi-Way Reversing Control Valve

Our DCV60 manual/pneumatic multi-way directional control valve is a highly adaptable control component designed for medium to large-scale hydraulic systems. It features a one-piece forged valve body, supports both manual and pneumatic operation, and integrates a relief valve and a load check valve. It boasts excellent pressure resistance, low leakage, and is suitable for open/closed center hydraulic systems.

This product has a rated flow rate of up to 60L/min, meeting the smooth directional control and pressure control requirements of heavy-duty applications such as construction machinery, mining equipment, and sanitation vehicles. The entire process undergoes rigorous pressure resistance, leakage, and durability testing, providing a stable and reliable original equipment manufacturer (OEM) hydraulic control solution for equipment.

Parameter	Specification
Structure Type	Monoblock Multi-way Directional Valve
Control Mode	Manual + Pneumatic (Dual Mode)
Spool Configuration	1~4 Spools (Customizable)
Nominal Flow	60 L/min (15.9 US gpm)
Max Working Pressure	350 bar (5100 psi)
Port Size	G1/2, M22×1.5, SAE 10, 1/2 NPT
Working Fluid	G1/2, M22×1.5, SAE 10, 1/2 NPT
Ambient Temp Range	-40°C ~ +80°C (-40°F ~ +176°F)
Standard Configuration	Main Relief Valve, Load Check Valve
Application	Construction Machinery, Mining Equipment, Sanitation Vehicles

If you have any questions about DCV Series Multi-way Directional Valve, please feel free to leave a message through our backend system, and I will provide you with product information as soon as possible.

In addition to Hydraulic Multi-way Directional Valve, we also manufacture a range of other products including Hydraulic Lock, Overflow Valve, Manual Control Valve, Solenoid Valve,and more.
