| Parameter | Specification |

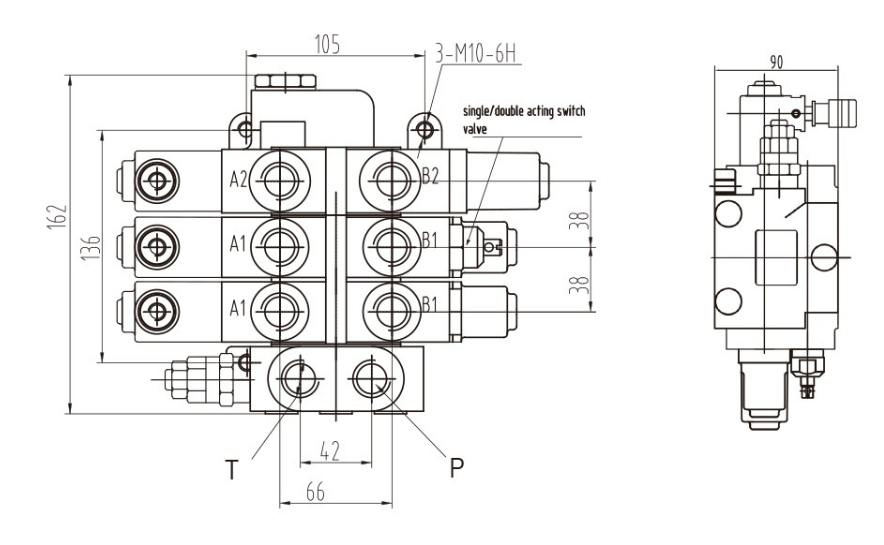

| Model | DF50 Series |
| Valve Type | Manual Monoblock Hydraulic Multi-way Directional Valve |
| Control Mode | Manual (Ball Detent / Spring Return) |
| Spool Configuration | 2~5 Spools (Customizable) |
| Nominal Flow | 50 L/min (13.2 US gpm) |
| Rated Working Pressure | 25 MPa (3625 psi) |
| Max Peak Pressure | 31.5 MPa (4568 psi) |
| Relief Valve Pressure | 5~25 MPa (Adjustable) |
| Oil Circuit Type | Open Center Hydraulic Circuit |
| Body Material | High-Strength Ductile Iron |
| Sealing Material | High-Pressure Composite Seal (NBR+PA66) |
| Port Connection | M27×1.5 / G3/4" / SAE 16 |
| Anti-fouling Grade | ISO 4406 Class 21/19/16 |
| Working Temp Range | -35°C ~ +90°C (-31°F ~ +194°F) |
| Application | Loaders, Excavator Attachments, Mini Mining Equipment, Animal Husbandry Machinery |
