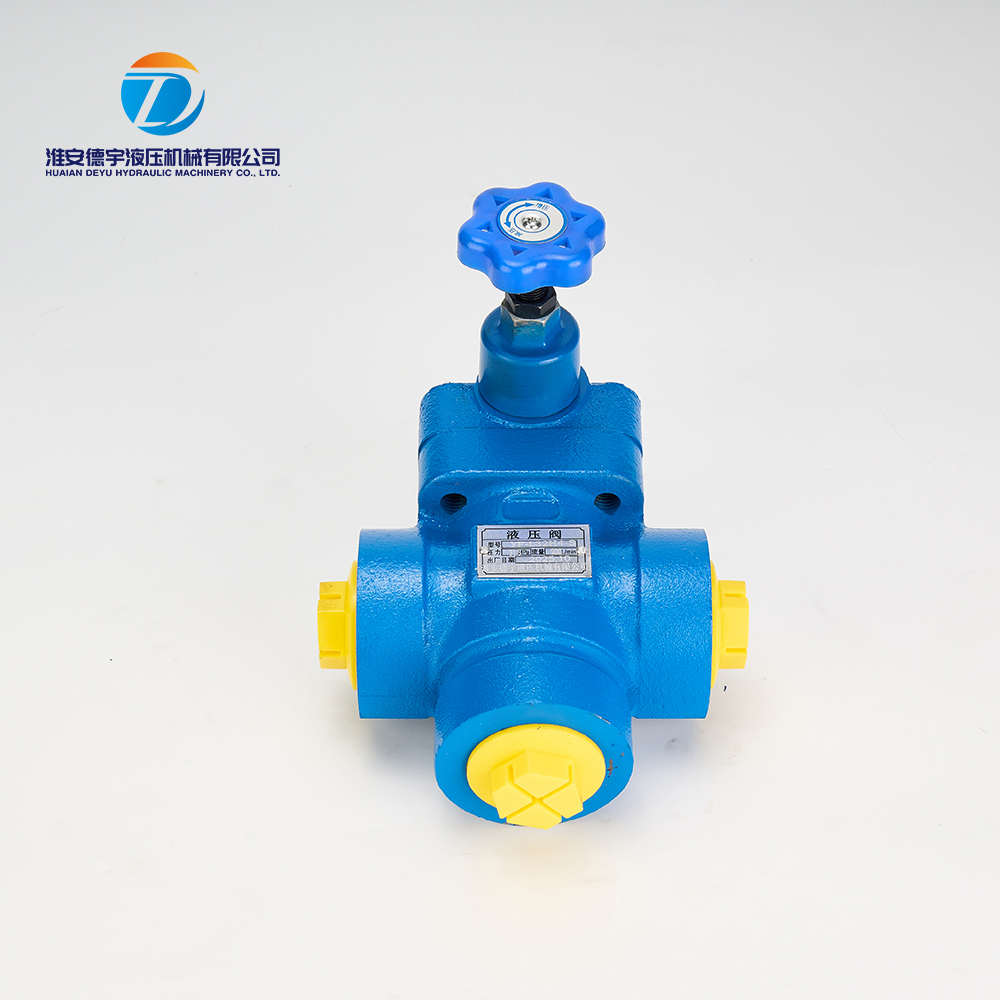

YF-B32H4 RELIEF VALVE

2 week ago

0 0

Huaian Deyu Hydraulic Machinery Co., Ltd.

 3 year year

Product details

Hydraulic plate relief valve

Type and Features

Direct-acting Relief Valve | Simple structure, fast response, suitable for low-pressure, low-flow systems; however, its adjustment accuracy is relatively low and it is susceptible to contamination.

Pilot-operated Relief Valve | Consists of a main valve and a pilot valve; high pressure regulation accuracy, suitable for high-pressure, high-flow systems; slightly slower response, but superior performance.

Solenoid Relief Valve | Can be remotely controlled for automatic control, commonly used in automation systems.

Proportional Relief Valve | Allows for continuous pressure adjustment; the output pressure is proportional to the input electrical signal, suitable for precision control.

Nominal Diameter	8mm,10mm,20mm,32mm，50mm
Nominal flow	40L/100L/200L/500L/min
Maximum pressure	31.5Mpa
Connection mode	Threaded connection=L Plate connection=B Flange connection=F
Pressure regulation range(Mpa)	1=0.6-8,2=4-16,3=8-20,4=16-35
