Product details

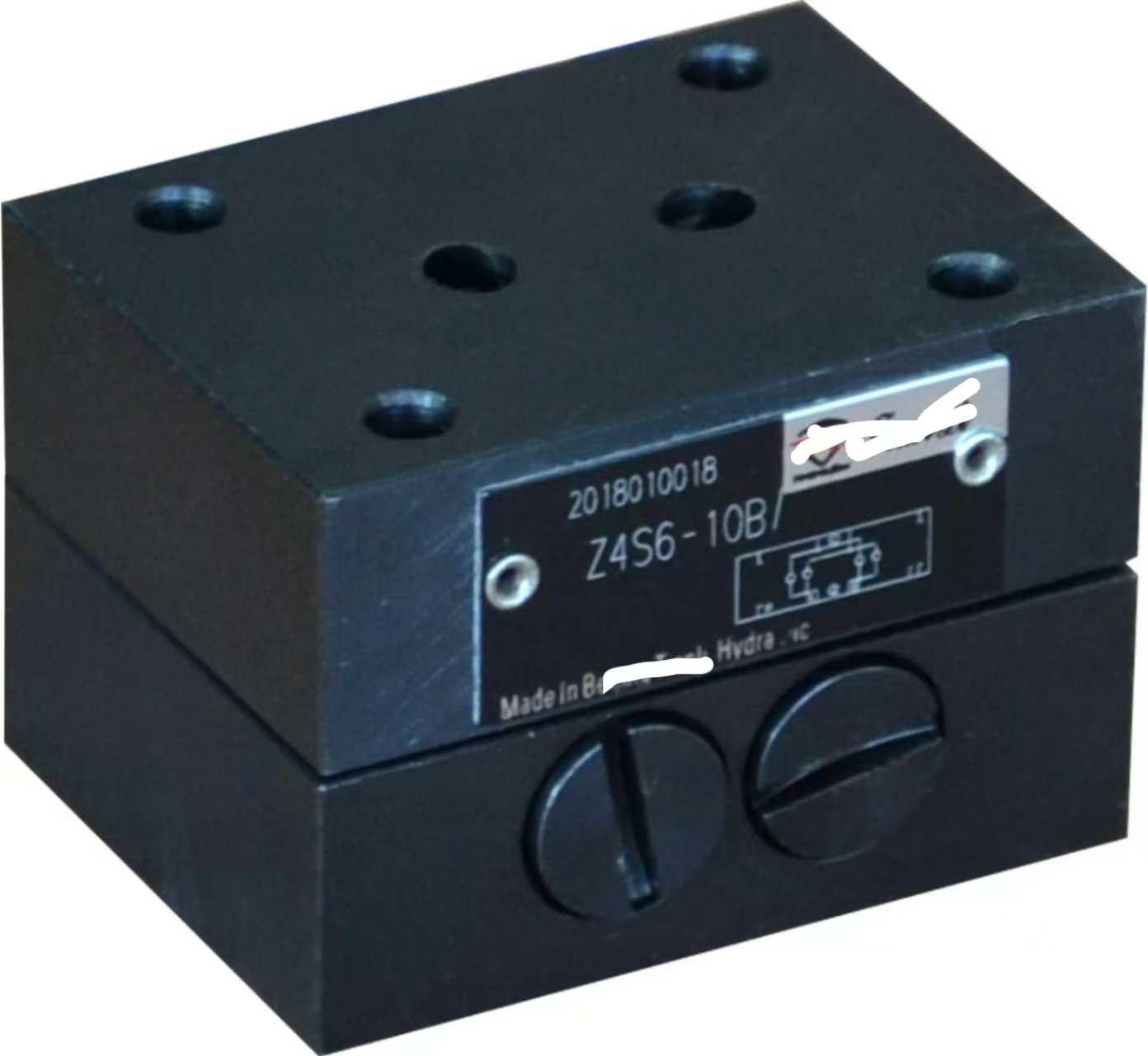

Rectifier Stacking Plate Z4S6

This component is commonly used in industrial automation and hydraulic control systems, particularly as an optional accessory for enabling bidirectional flow control when paired withtwo-port flow control valves like the 2FRM6. Below is a detailed technical overview:

------

I. Functions & Applications

1. Bidirectional Flow Control

• When integrated with the 2FRM6 flow control valve, the Z4S6 acts as arectifier stacking plate, enabling bidirectional flow regulation.

• Ideal for applications requiring reverse oil flow, such as controlling the forward/reverse rotation of hydraulic motors.

2. System Integration

• Designed for standardized mounting on training benches or industrial hydraulic systems, facilitating seamless integration into existing setups.

• Supports modular stacking with other valves or components, enhancing system flexibility.

3. Industrial Applications

• Used in construction machinery, industrial automation equipment, metallurgical/mining machinery, and marine/oilfield systems to stabilize hydraulic flow and ensure efficient operation.

------

II. Technical Features (Inferred from Similar Components)

1. Compatibility

• Works with multiple flow control valve models, especially those supporting external rectifier stacking plates.

• Adheres to industry-standard interfaces and mounting dimensions for easy replacement/upgrades.

2. Durability

• Constructed from high-strength materials to withstand high-pressure and high-temperature industrial environments.

• Seals are compatible with various hydraulic fluids (e.g., mineral oils, biodegradable fluids) and offer strong contamination resistance.

3. Maintenance-Friendly Design

• Modular construction allows quick disassembly/replacement, reducing downtime and costs.

• May include diagnostic features or status indicators for rapid troubleshooting.

------

III. Speculative Specifications (Example Values)

Note: Actual parameters may vary by manufacturer. The following are illustrative examples:

• Dimensions: ~200 × 150 × 50 mm (L × W × H)(Refer to manufacturer’s datasheet for exact measurements)

• Mounting Type: Subplate or flange mounting for hydraulic system integration.

• Flow Range: Matches paired flow control valve (e.g., 0.2–32 L/min or higher).

• Pressure Rating: Up to 315 bar (compatible with high-pressure hydraulic systems).

• Port Types: Standard hydraulic interfaces (e.g., G1/4, G3/8).
