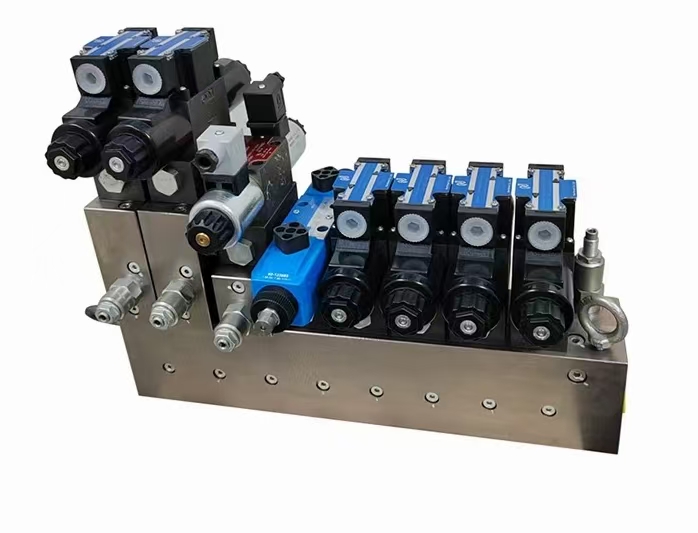

I. Definition and Function of Valve Manifolds
A valve manifold is a core control component in hydraulic or pneumatic systems, integrating multiple valves, fluid channels, and electromechanical elements (e.g., solenoid valves). Its primary functions include:
1. Directional Control: Uses directional valves to manage fluid flow direction, enabling start/stop or steering of actuators (e.g., spray gun nozzles).
2. Pressure Regulation: Stabilizes system pressure via pressure-relief valves to prevent overloading or fluctuations affecting coating quality.
3. Flow Control: Adjusts flow rates through throttle valves to ensure uniform spraying speed and consistent coating thickness.
4. Logic Control: Incorporates solenoid or proportional valves for automated spraying sequences (e.g., multi-color switching).
------
II. Applications in Spray Machines
1. High-Pressure Airless Sprayers
• Example: Brands likeGracoandWagneruse plunger-type valve manifolds in models (e.g., 6C/9C series). These pressurize coatings to 20–30 MPa via high-pressure pumps, distributing them evenly through the manifold to the spray gun.
• Advantage: Plunger design reduces seal wear, extending service life; integrated pressure regulators allow real-time adjustments for varying coating viscosities.
2. Automated Spraying Lines
• Function: In automotive/home appliance manufacturing, valve manifolds coordinate with robots, using solenoid valves to control multi-channel coating supply for color switching or gradient effects.
• Case Study: A car chassis spray line adopted an integrated manifold with PLC-controlled 12-solenoid-valve arrays, boosting efficiency by 40% through automated anti-rust coating application.
3. Specialized Media Spraying
• Application: For corrosion-resistant or fireproof coatings, manifolds withstand extreme conditions (e.g., stainless steel bodies with ceramic seals for 650°C fireproofing sprays).
------
III. Technical Features
1. Modular Design
• Combines directional, pressure, and flow valves into 1–2 modules, reducing piping and leakage risks. Example: Wagner’s HC960G manifold cuts installation time by 60% via 12-to-2 valve integration.
2. Precision Control
• Proportional/servo valves achieve ±1% accuracy in flow/pressure regulation, enabling 0.01mm-thick coatings for electronics.
3. Reliability Enhancements
• Anti-clogging valve cores (e.g., silicon carbide) and redundant oil circuits maintain performance even with contaminated coatings. A mining equipment line reduced failures by 75% post-upgrade.
4. Smart Integration
• Interfaces with vehicle CAN buses for remote monitoring. Sensors trigger cooling systems to prevent thermal deformation (e.g., maintaining valve stability during continuous operation).
------
IV. Industry Case Studies
1. Automotive Manufacturing
• Tesla’s Shanghai factory uses integrated manifolds for body electrocoating, distributing multiple baths via solenoid valves to achieve uniform corrosion protection in 3 minutes per vehicle.
2. Aerospace
• For C919 engine blade coating, manifolds control supercritical CO₂ spraying at -78°C, depositing nano-coatings with 30% higher adhesion.
3. Construction
• The Hong Kong-Zhuhai-Macao Bridge’s steel structures used smart manifolds with GPS-adjusted parameters, achieving 10-year rust resistance and 80% lower maintenance costs.
------
V. Selection and Maintenance Guidelines
1. Key Selection Criteria
• Pressure Rating: Choose a manifold rated 20% above the sprayer’s max pressure (e.g., 36 MPa for a 30 MPa system).
• Flow Capacity: Match port size (e.g., DN10 for ≤50 L/min flows) to spray gun requirements.
• Media Compatibility: Opt for stainless steel/Hastelloy for corrosive fluids; cooling channels for high-temp applications.
2. Maintenance Best Practices
• Cleaning: Disassemble every 500 hours; use ultrasonic cleaners to remove oil residue.
• Seal Replacement: Swap O-rings/V-seals every 2,000 hours (prioritize fluororubber for heat resistance).
• Fault Diagnosis: Monitor pressure differentials (≥0.5 MPa indicates blockages requiring immediate service).
