Normally Open Solenoid Valve Suitable For Massage Cushions

Smooth Airflow Control for Massage Cushion Systems

Massage cushions need airflow switching to feel soft and natural during operation. If the pressure release becomes uneven, the massage rhythm starts feeling stiff instead of comfortable. The Normally Open Solenoid Valve Suitable For Massage Cushions was designed for inflatable massage systems that require stable airflow movement during long working cycles.

Parameter	Specification
Model No.	MXV1220-02K
Rated Voltage	DC3.7V
Operating Voltage Range	DC2.6V~4.5V
Rated Current	620±10% mA
Rated Power	2.7W
Rated Operating Condition	Continuous operation
Operating Pressure Range	MAX 350mmHg
Typical Operating Pressure	300mmHg

Unlike traditional closed structures, Ming Xinxiang this Normally Open Solenoid Valve keeps airflow open when power is disconnected, which helps certain massage systems maintain smoother pressure transitions during operation.

Normally Open Solenoid Valve Suitable For Massage Cushions

For massage cushions with repeated inflation and release functions, this setup helps create a more relaxed user experience.

Built for Continuous Working Conditions

Massage cushions often run for long periods, especially in office chairs, household wellness products, or portable relaxation equipment. The MXV1220-02K Two normally open solenoid valves supports continuous use conditions while maintaining stable airflow switching performance.

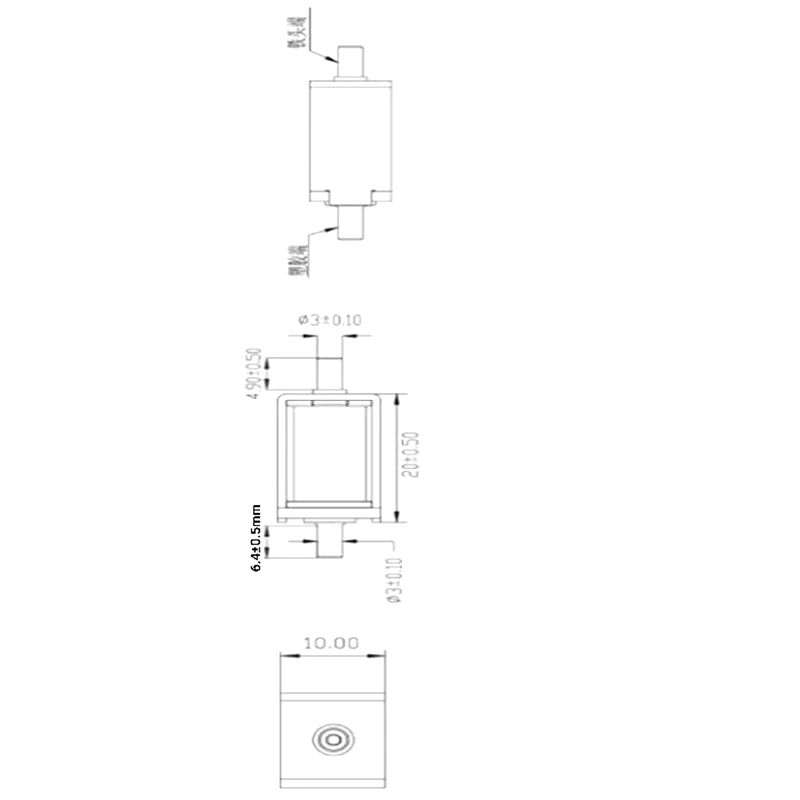

Product Dimensions：

Two normally open solenoid valve dimension drawing

With a maximum pressure range of 350mmHg and common operating pressure around 300mmHg, the valve can handle repeated pressure cycles more steadily during daily operation.

Its DC2.6V~4.5V operating range also makes it easier to match with compact rechargeable massage products and portable electronic systems.As an electric solenoid, it performs well in products requiring fast airflow response and stable pressure release behavior.

Compact Structure Helps Save Internal Space

Portable massage products usually leave very limited room inside the housing. Large valve assemblies make product layouts harder to manage and can increase overall device size.

Ming Xinxiang The MXV1220-02K Normally Open Solenoid Valve keeps a compact structure while still maintaining stable operation performance. The smaller layout helps manufacturers improve internal assembly flexibility for inflatable cushion systems and lightweight massage products.
